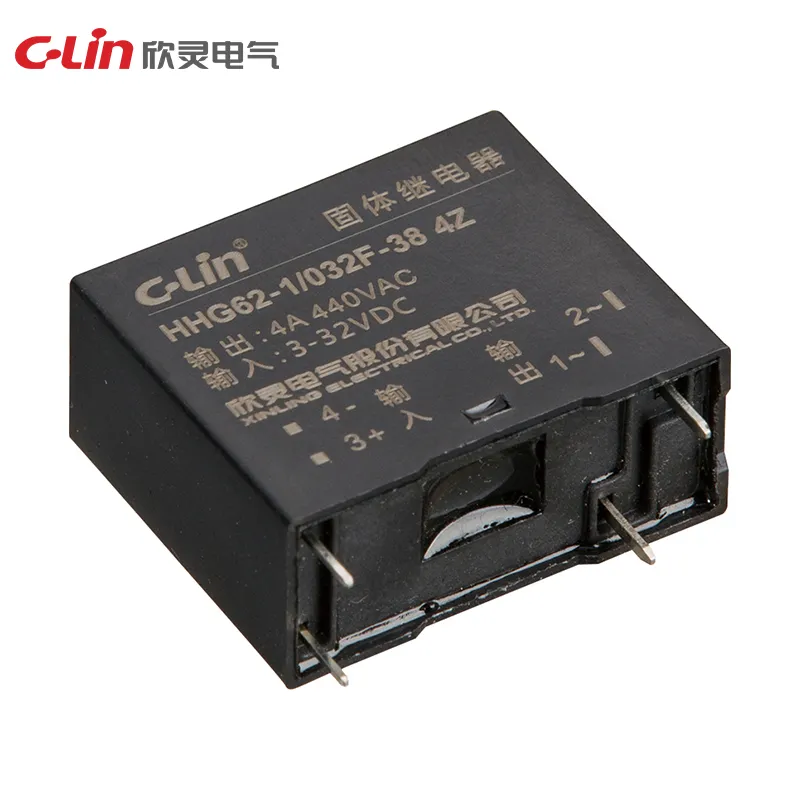

The HHG62 Series is a compact solid-state relay for low-current AC load switching in relay interface modules and small control panels. It uses a dual-line plug-in body that can be paired with DIN-rail mounting accessories, making it suitable for dense wiring layouts.
| Model / specification | HHG62-1/032F-38 |
|---|---|
| Control voltage | 3-32VDC |
| Control current | 5-25mA |
| Load voltage code | 22: 24-240VAC; 38: 24-440VAC; 20: 12-200VDC option listed in the same voltage-code table |
| Load current | 1A, 2A, 3A, 4A |
| On-state voltage drop | AC ≤1.6VAC |
| On-off time | AC ≤10ms |
| Off-state leakage current | AC ≤10mA |
| Dielectric withstand voltage | ≥1500VAC |
| Ambient temperature | -30°C to 80°C |
| Dimensions | 29×12.6×28mm |
| Installation | Dual-line plug-in and DIN rail installation |
| Socket note | RX78624 adapter socket |
| Thermal instruction | Install beside a well-ventilated heat-dissipation area |
