The HHG41 Series is a low-current solid-state relay range for compact interface circuits and relay-socket style installations. It includes DC-output and AC-output versions, with plug-in and DIN-rail formats available for different panel layouts.
Common Parameters
| Control voltage | 3-32VDC |
|---|
| Control current | 5-20mA |
|---|
| Load current | 1A, 2A |
|---|
| Dielectric strength | ≥1500VAC |
|---|
| Ambient temperature | -30°C to 80°C |
|---|
| Thermal instruction | Install beside a well-ventilated heat-dissipation area |
|---|

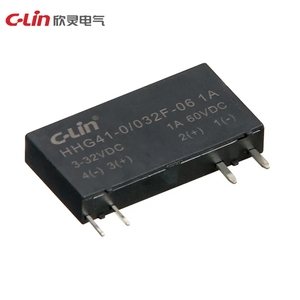

HHG41-0/032F-06
| Output type | DC load output |
|---|
| Load voltage code | 06: 5-60VDC |
|---|
| On-state voltage drop | DC ≤1.2V |
|---|
| On-off time | DC ≤5ms |
|---|
| Off-state leakage current | DC ≤5mA |
|---|
| Dimensions | 28×18.5×5mm |
|---|
| Installation | Single in-line plug-in installation |
|---|
| Socket note | Compatible with 41F-1Z-C2N 5V adapter socket |
|---|

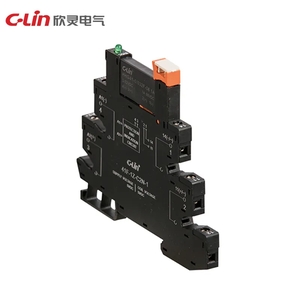

HHG41-0/032F-06-D
| Output type | DC load output |
|---|
| Load voltage code | 06: 5-60VDC |
|---|
| On-state voltage drop | DC ≤1.2V |
|---|
| On-off time | DC ≤5ms |
|---|
| Off-state leakage current | DC ≤5mA |
|---|
| Dimensions | 97×82×6.2mm |
|---|
| Installation | DIN rail installation |
|---|

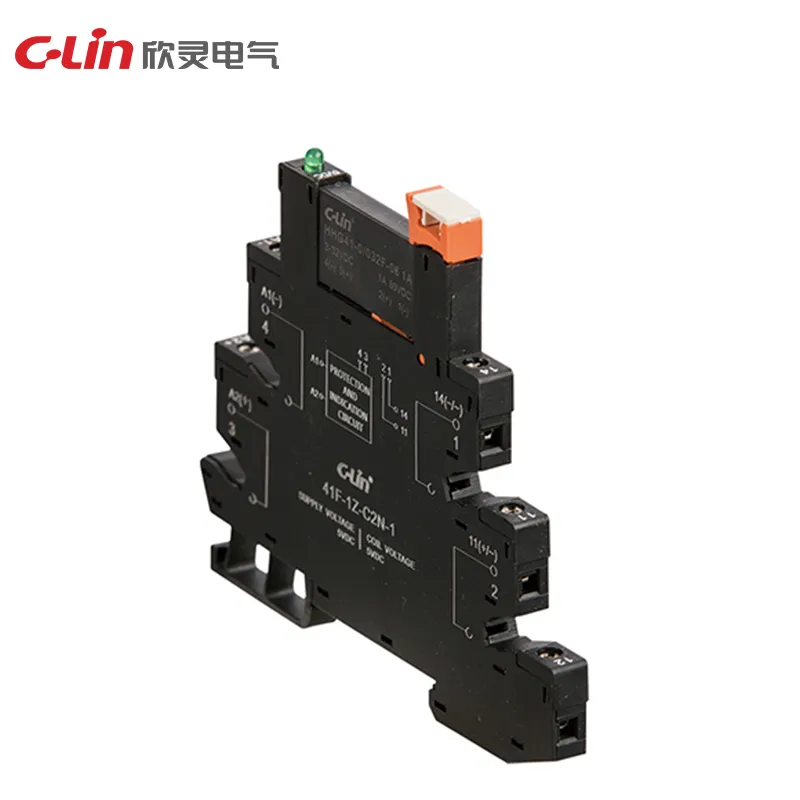

41F-1Z-C2N-1
| Output type | AC load output socket module |
|---|
| Load voltage code | 22: 24-240VAC; 38: 24-440VAC |
|---|
| On-state voltage drop | AC ≤1.6VAC |
|---|
| On-off time | AC ≤10ms |
|---|
| Off-state leakage current | AC ≤10mA |
|---|
| Dimensions | 97×82×6.2mm |
|---|
| Installation | DIN rail mounting |
|---|

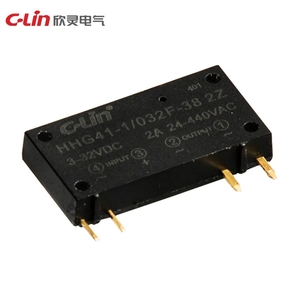

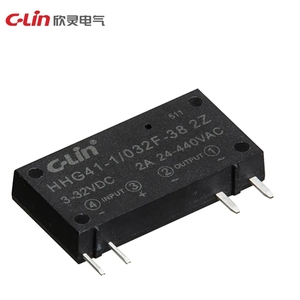

HHG41-1/032F-38 2Z
| Output type | AC load output plug-in relay |
|---|
| Load voltage code | 22: 24-240VAC; 38: 24-440VAC |
|---|
| On-state voltage drop | AC ≤1.6VAC |
|---|
| On-off time | AC ≤10ms |
|---|
| Off-state leakage current | AC ≤10mA |
|---|
| Dimensions | 28×18.5×5mm |
|---|
| Installation | Single-row through-hole mounting |
|---|
| Socket note | Compatible with 41F-1Z-C2N 5V adapter socket |
|---|
