The HHG1D Series is a slim plug-in solid-state relay for compact AC load switching in dense control boards or relay interface panels. Both versions use DC control input and single in-line installation, with the main differences in load-current rating, package height and the selected AC load-voltage code.
Common Parameters
| Control voltage | 3-32VDC |
|---|
| Control current | 6-25mA |
|---|
| Load voltage code | 22: 24-240VAC; 38: 24-440VAC |
|---|
| On-state voltage drop | AC ≤1.6VAC |
|---|
| On-off time | AC ≤10ms |
|---|
| Off-state leakage current | AC ≤10mA |
|---|
| Dielectric strength | ≥1500VAC |
|---|
| Ambient temperature | -30°C to 80°C |
|---|
| Installation | Single in-line plug-in installation |
|---|
| Thermal instruction | Install beside a well-ventilated heat-dissipation area |
|---|

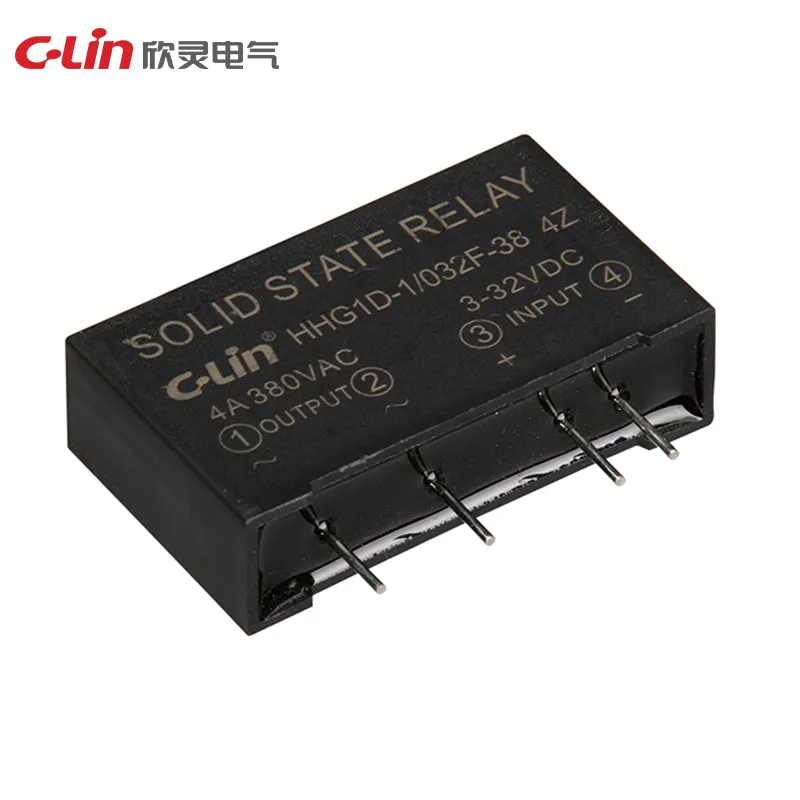

HHG1D-1/032F-22
| Load current | 3A, 4A |
|---|
| Dimensions | 43×12×25.5mm |
|---|

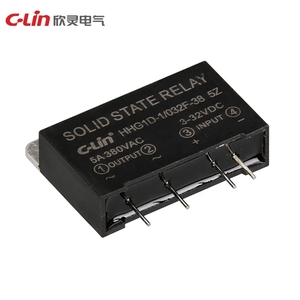

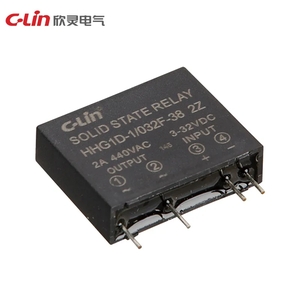

HHG1D-1/032F-38
| Load current | 5A, with heat sink |
|---|
| Dimensions | 43×12×34mm |
|---|
