Solid-State Relay HHG1 Series


Description

The HHG1 Series covers several solid-state relay formats for electronic load switching, from compact plug-in low-current modules to bolt-mounted single-phase and three-phase AC output relays. The models share fast non-contact switching behavior, while the selected suffix determines control input, output type, load voltage, current rating and package size.

Common Parameters

Ambient temperature-30°C to 80°C
AC on-state voltage drop≤1.6VAC where AC output is used
AC on-off time≤10ms where AC output is used
AC off-state leakage current≤10mA where AC output is used
Thermal instructionUse a heat sink for higher-current models; use forced-air or water cooling above 80A where specified

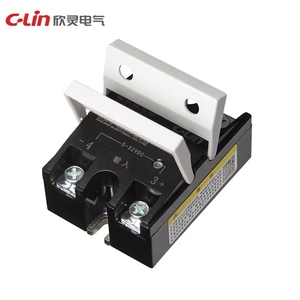

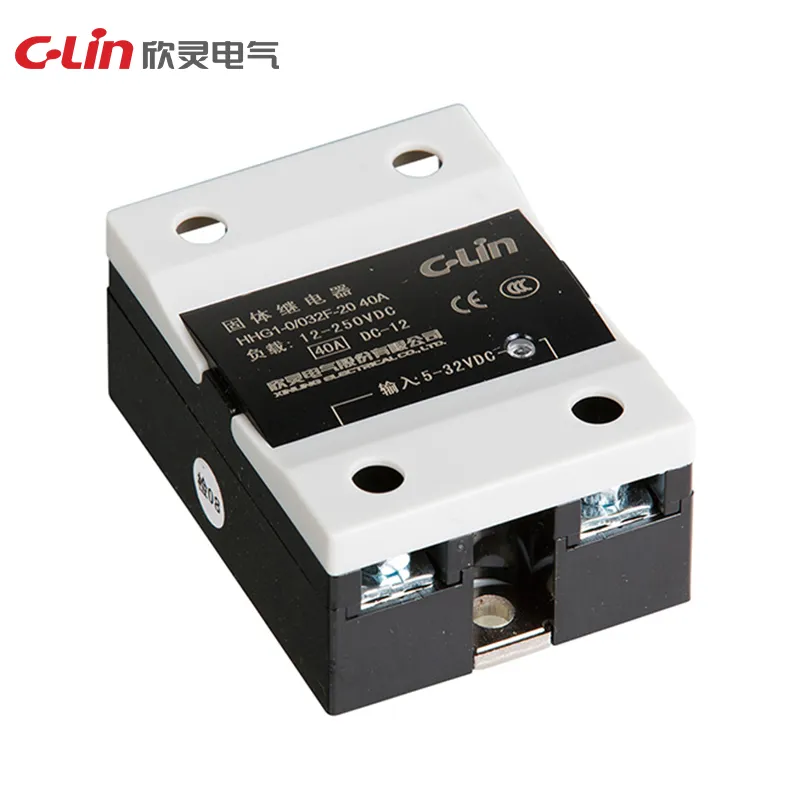

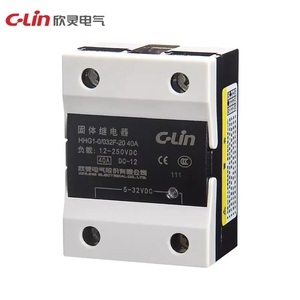

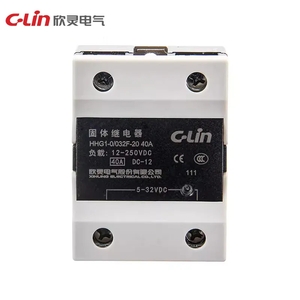

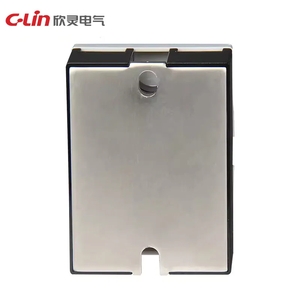

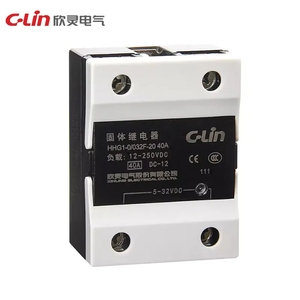

HHG1-0/032F-20

Output typeDC load output
Control voltage5-32VDC
Control current10-45mA
Load voltage code20: 12-250VDC
Load current10A, 15A, 20A, 25A, 30A, 40A, 60A
On-state voltage dropDC ≤1.2VDC
On-off timeDC ≤5ms
Off-state leakage currentDC ≤5mA
Dielectric strength≥2000VAC
Dimensions60×45×29mm
InstallationBolt installation

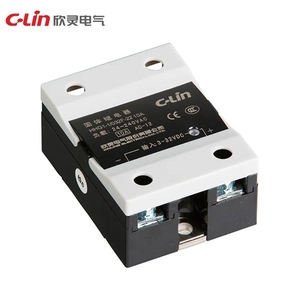

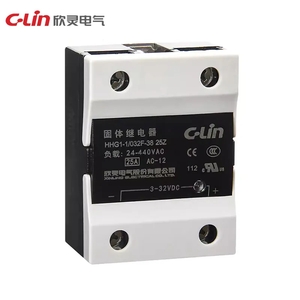

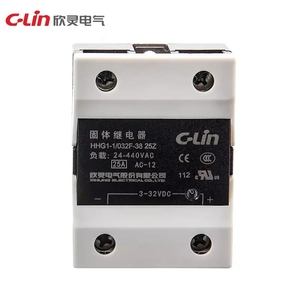

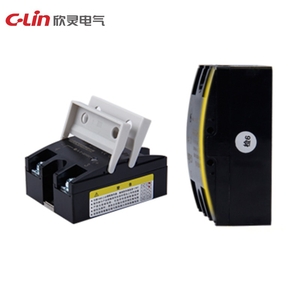

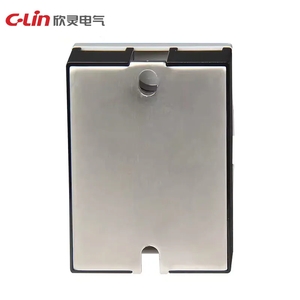

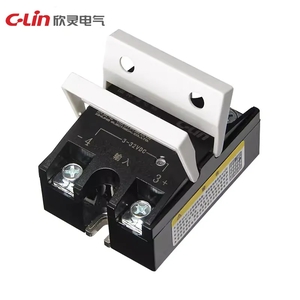

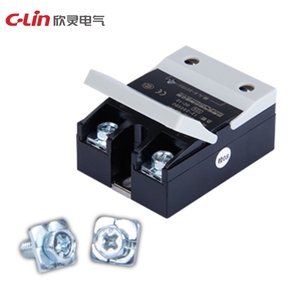

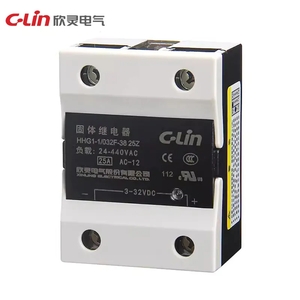

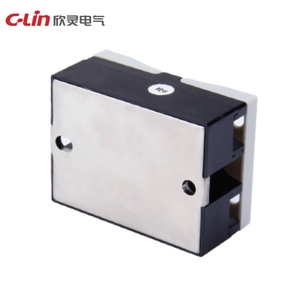

HHG1-1/032F-38

Output typeSingle-phase AC load output
Control voltage3-32VDC
Control current6-25mA
Load voltage code22: 24-240VAC; 38: 24-440VAC
Load current10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A
Dielectric strength≥2500VAC
Dimensions60×45×29mm
InstallationBolt installation

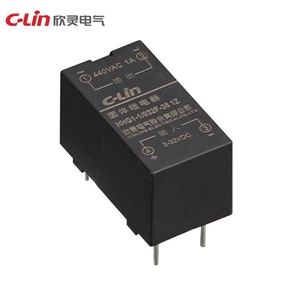

HHG1-1/032F-38 1A

Output typeSingle-phase AC load output, low-current plug-in package
Control voltage3-32VDC
Control current6-35mA
Load voltage code22: 24-240VAC; 38: 24-440VAC
Load current1A
Dielectric strength≥1500VAC
Dimensions32.5×17.5×18.5mm
InstallationDIP / plug-in installation
Thermal instructionInstall beside a well-ventilated heat-dissipation area

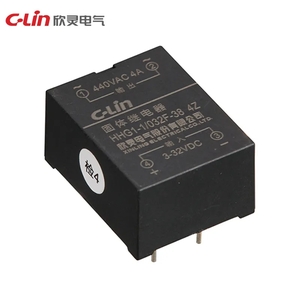

HHG1-1/032F-38 2-4A

Output typeSingle-phase AC load output, low-current plug-in package
Control voltage3-32VDC
Control current6-25mA
Load voltage code22: 24-240VAC; 38: 24-440VAC
Load current2A, 3A, 4A
Dielectric strength≥1500VAC
Dimensions34×26.5×18mm
InstallationDIP / plug-in installation
Thermal instructionInstall beside a well-ventilated heat-dissipation area

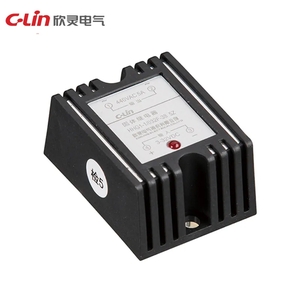

HHG1-1/032F-38 5A

Output typeSingle-phase AC load output, compact plug-in package
Control voltage3-32VDC
Control current6-25mA
Load voltage code22: 24-240VAC; 38: 24-440VAC
Load current5A
Dielectric strength≥1500VAC
Dimensions42×31×20mm
InstallationDIP / plug-in installation
Thermal instructionInstall beside a well-ventilated heat-dissipation area

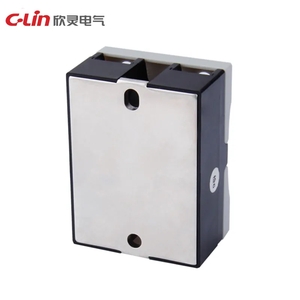

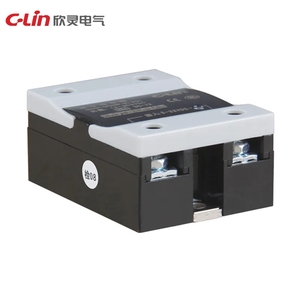

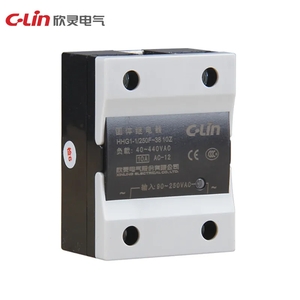

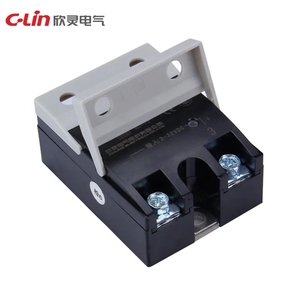

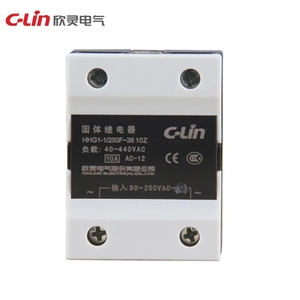

HHG1-1/250F-22

Output typeSingle-phase AC load output with AC control input
Control voltage90-250VAC
Control current6-20mA
Load voltage code22: 24-240VAC
Load current10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A
Dielectric strength≥2500VAC
Dimensions60×45×29mm
InstallationBolt installation

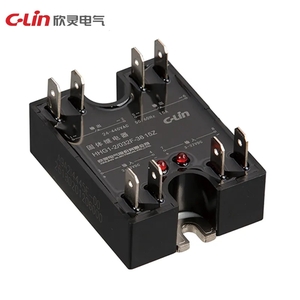

HHG1-2/032F-38

Output typeTwo-circuit AC load output
Control voltage3-32VDC
Control currentSingle circuit <15mA
Load voltage code38: 24-440VAC
Load current10A, 15A, 20A, 25A, 30A, 40A per circuit
Dielectric strength≥2500VAC
Dimensions57×44×30mm
InstallationBolt installation

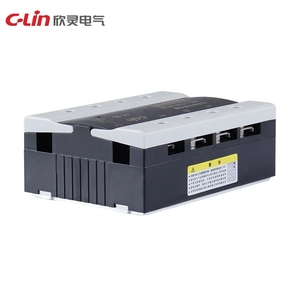

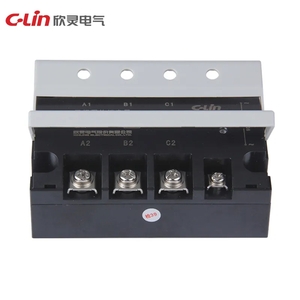

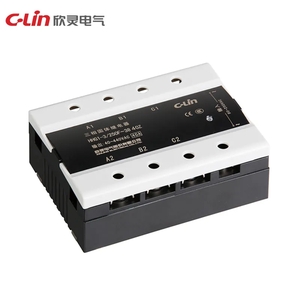

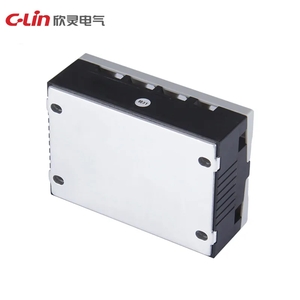

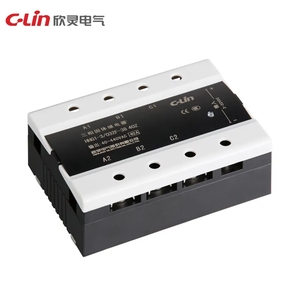

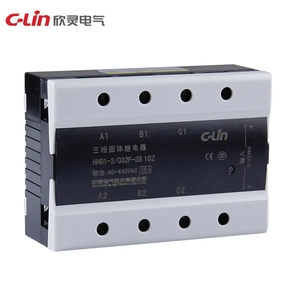

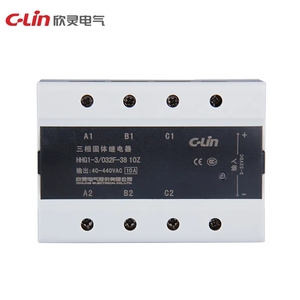

HHG1-3/032F-38

Output typeThree-phase AC load output with DC control input
Control voltage3-32VDC
Control current16-30mA
Load voltage24-440VAC
Load current10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A, 120A
Dielectric strength≥2500VAC
Dimensions106×75×40mm
InstallationBolt installation

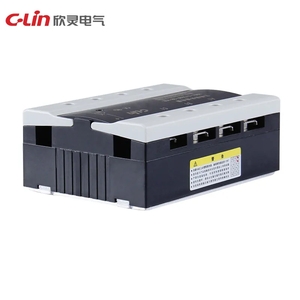

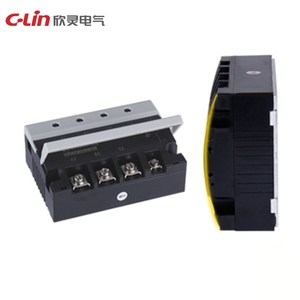

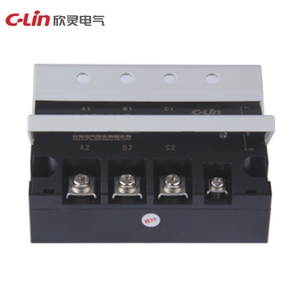

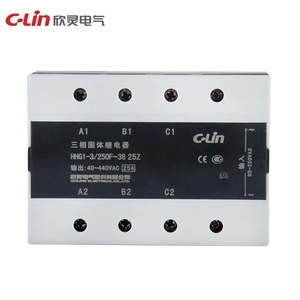

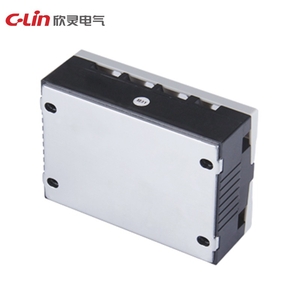

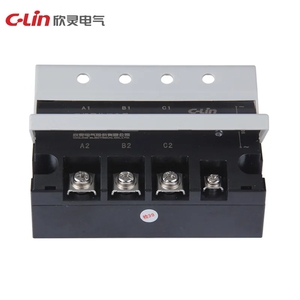

HHG1-3/250F-38

Output typeThree-phase AC load output with AC control input
Control voltage90-250VAC
Control current8-30mA
Load voltage24-440VAC
Load current10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A, 120A
Dielectric strength≥2500VAC
Dimensions106×75×40mm
InstallationBolt installation
