This solar PV connector range covers connector bodies, branch connectors, and connector handles used in photovoltaic wiring assemblies and combiner-box connection work.
Product Coverage
| Product | Application |
|---|
| Single pole solar connector | PV string connection with GSC1S connector ratings listed in the connector catalog. |
| Two pole solar connector | PV wiring connection with GSC2S connector ratings listed in the connector catalog. |

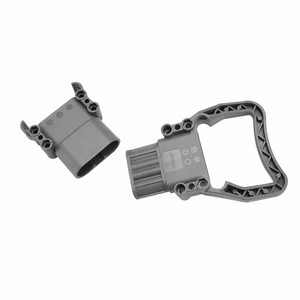

| Four pole solar connector | Multi-pole connector accessory for solar storage and DC product applications. |
| MC4T branch connector | PV branch connection for combiner-box and solar string wiring. |

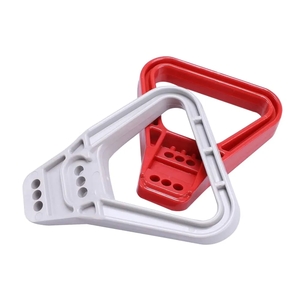

| Solar connector handles | Accessory handles for connector operation and maintenance. |
MC4T Branch Connector Data
| Rated current | 40A |
|---|
| Rated voltage | 1000V DC |
|---|
| Test voltage | 6000V, 50Hz, 1 minute |
|---|
| Contact material | Copper, silver plated |
|---|
| Insulation material | PPO |
|---|
| Degree of protection | IP2*/IP65 |
|---|
| Suitable cable | 2.5-6.0mm2 |
|---|
| Temperature range | -40 C to +110 C |
|---|
