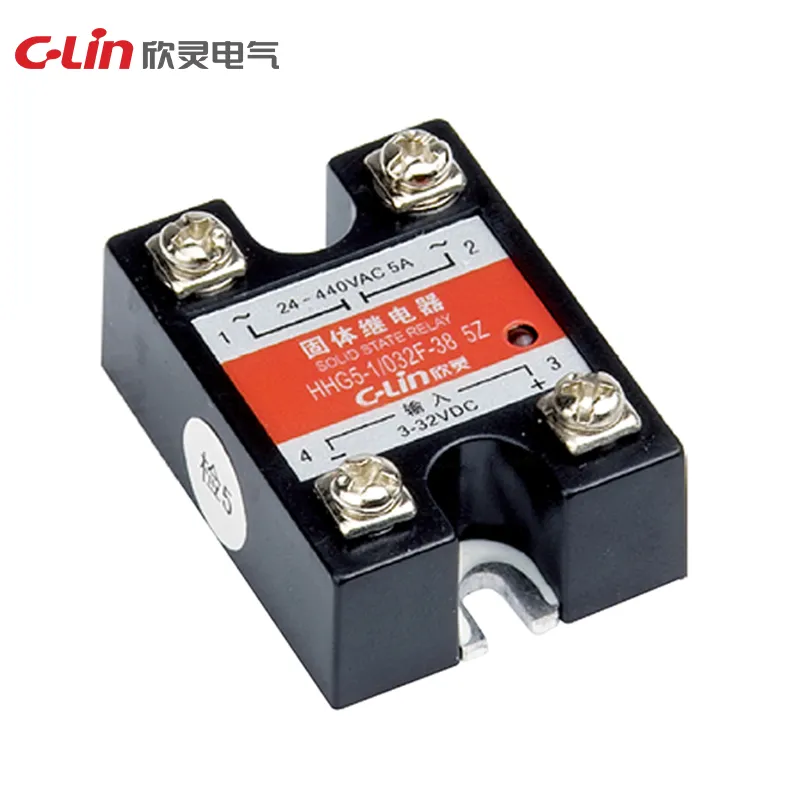

The HHG5 Series is a small solid-state relay for compact AC load switching where a low-voltage DC control signal is used instead of a mechanical relay coil. Its compact body suits dense control panels, while the voltage code selects the AC load range needed by the application.
| Model / specification | HHG5-1/032F-38 |
|---|---|
| Control voltage | 3-32VDC |
| Control current | 6-25mA |
| Load voltage code | 22: 24-240VAC; 38: 24-440VAC |
| Load current | 5A, 10A, 15A |
| On-state voltage drop | AC ≤1.6VAC |
| On-off time | AC ≤10ms |
| Off-state leakage current | AC ≤10mA |
| Dielectric withstand voltage | ≥2500VAC |
| Ambient temperature | -30°C to 80°C |
| Dimensions | 38.5×28.7×18mm |
| Installation | Bolt installation |
| Thermal instruction | Use a heat sink for loads above 5A |
