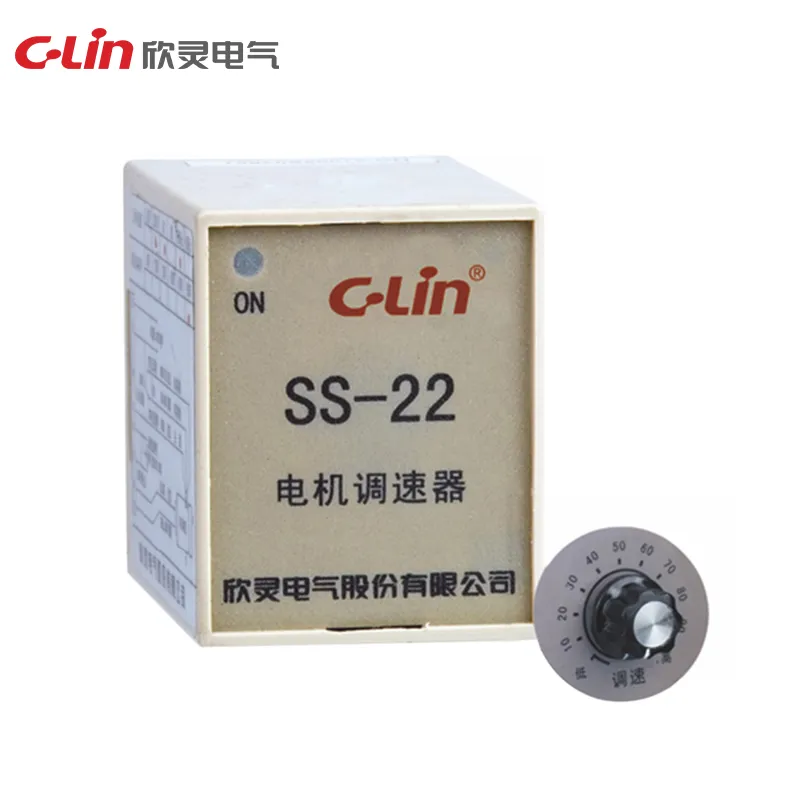

SS-22 is a small AC motor speed regulator for five-wire motors with a speed feedback line. It provides soft start, stepless speed regulation and selectable forward/reverse control in a compact 35mm rail-mounted body.
| Parameter | Specification |
|---|---|
| Model | SS-22 |
| Power Supply | AC220V, 50/60Hz |
| Rated Power | 15W, 25W, 40W, 60W, 90W, 120W, 180W, 200W |
| Speed Regulation Range | 90-1400r/min at 50Hz; 90-2800r/min at 60Hz |
| Control Mode | Forward/reverse selectable |
| Application Scope | YYDJ, YCJT, YYCJ and YCJFK series five-wire motors with speed measuring wire |
| Functions | Soft start and stepless speed regulation |
| Dimensions | 57 x 40 x 78 mm |
| Installation Method | 35mm DIN rail mounting |
