Single Phase URD Pad-Mounted Transformer

Single Phase URD Pad-Mounted Transformer is prepared for ground-level utility and industrial distribution. This series description presents the application, construction, protection, and specification details in finished product copy.

The "Green Box" Standard for Underground Distribution

The "Green Box" Standard for Underground Distribution summarizes the protection, safety, or standard-related details that matter during engineering selection.

• The Single Phase Pad Mounted Transformer is the cornerstone of modern Underground Residential Distribution (URD). Designed to be installed at ground level on a concrete or fiberglass pad, this "Mini-Substation" eliminates the need for unsightly overhead poles and wires. It serves as the final step-down point, converting medium voltage (e.g., 12.47kV or 24.9kV) to 120/240V for households and small commercial sites.
• As a comprehensive single phase underground transformer solution, the series is engineered for universal utility acceptance. Every unit in this catalog is manufactured in strict accordance with ansi c57 12.25. This specific standard governs the dimensional integrity, bushing heights, and safety clearances for single-phase units, ensuring the transformers are mechanically interchangeable with existing utility infrastructure across North American grids.

Capacity Selection Guide: Sizing for Your Project

Capacity Selection Guide: Sizing for Your Project connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• Select your required capacity below to understand the specific engineering application.
• The Residential Compact Series (25 - 50 kVA).
• Ideal for: Cul-de-sacs, small clusters of homes, and street lighting.
• 25 kVA: The industry's volume leader. A 25 kva pad mounted transformer is typically sized to power 4 to 6 average energy-efficient homes. Its low profile (often 25 kva pad mount transformer remains the standard specification.
• 50 kVA: As average household consumption rises with larger HVAC systems, the 50 kva pad mounted transformer is becoming the new standard for new housing developments. It provides the necessary thermal headroom to handle simultaneous peak loads across 8-10 homes without overheating the mineral oil.
• Green 25 kVA pad mounted transformer installed discreetly in a.

Core Engineering and Safety Architecture

Core Engineering and Safety Architecture summarizes the protection, safety, or standard-related details that matter during engineering selection.

• Regardless of capacity, all the single phase pad mounted distribution transformers share a unified, utility-grade architectural standard focusing on public safety and grid flexibility.
• Dead-Front & Tamper-Proof Design.
• Public safety is paramount. the cabinets feature a "Dead-Front" construction, meaning there are no exposed live parts in the high-voltage compartment.
• Tamper Resistance: The cabinet is locked with a specialized Penta-head bolt (requiring a 5-sided socket) and padlock hasp. The HV compartment cannot be opened unless the LV compartment is opened first, ensuring a distinct access sequence that prevents unauthorized entry by children or vandals.

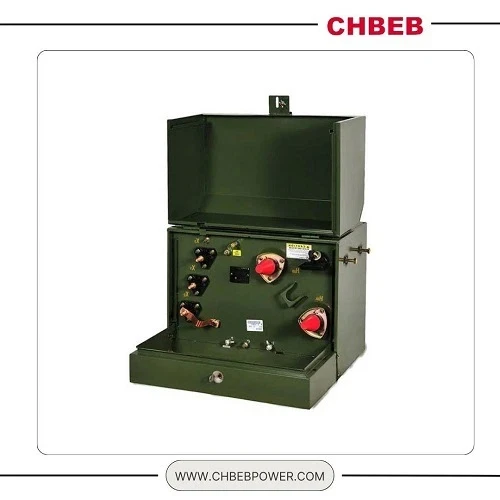

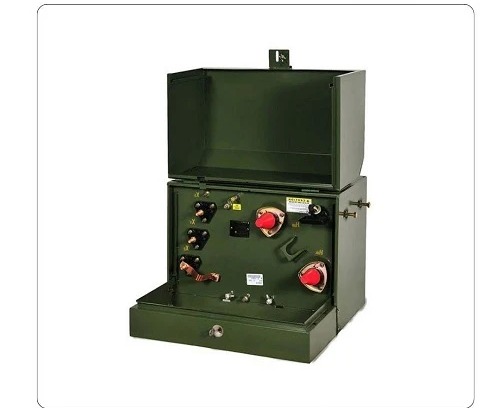

• Open compartment of single phase pad transformer showing.
• Dead-front insulated connections.

Installation Data and Footprint

Installation Data and Footprint connects the product rating with the field conditions, enclosure layout, and distribution role it is normally selected for.

• Proper installation requires a pre-cast or poured concrete base. We provide the specific dimensions for the single phase transformer pad to ensure the cable window aligns perfectly with your underground conduits.
• 15kV / 25kV / 35kV.

Electrical and Mechanical Data

The table data is organized for quick rating comparison, project specification, and transformer selection.

Product Detail Images
