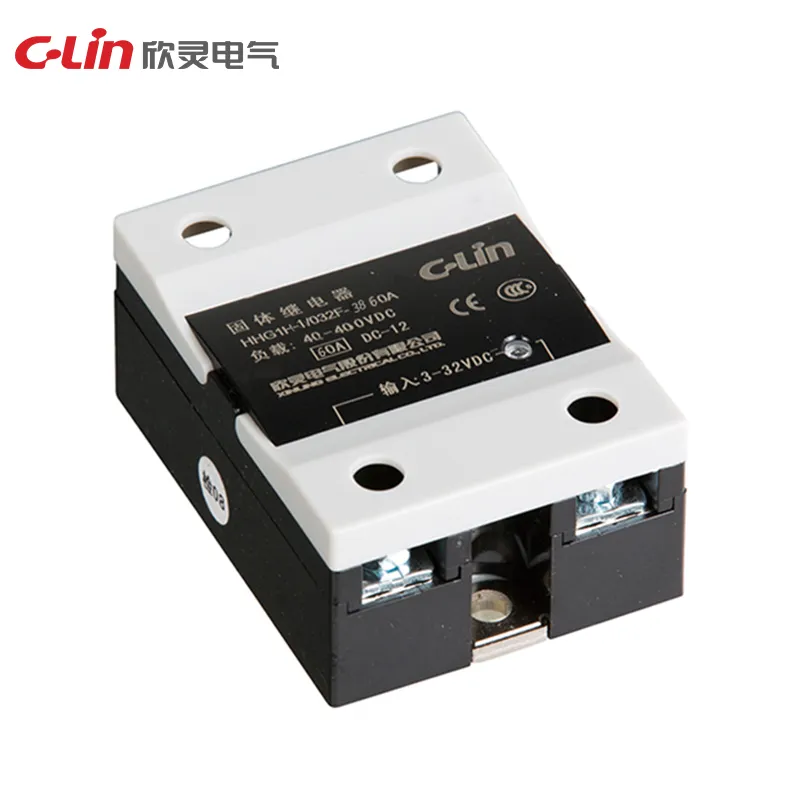

The HHG1H Series is a single-phase thyristor anti-parallel solid-state relay for AC load switching. It is suited to higher-current applications that need DC control input, wide AC load-voltage options and external heat-sink cooling.
| Model / specification | HHG1H-1/032F-38 |
|---|---|
| Control voltage | 3-32VDC |
| Control current | 6-25mA |
| Load voltage code | 38: 24-440VAC; 120: 40-1200VAC |
| Load current | 60A, 80A, 100A, 120A |
| On-state voltage drop | AC ≤1.6VAC |
| On-off time | AC ≤10ms |
| Off-state leakage current | AC ≤10mA |
| Dielectric withstand voltage | ≥2500VAC |
| Ambient temperature | -30°C to 80°C |
| Dimensions | 60×45×29mm |
| Installation | Bolt installation |
| Thermal instruction | Use a heat sink above 5A; use forced-air or water cooling above 80A |
