HWP Series single-circuit intelligent meters are panel instruments for temperature and process signal measurement. The series supports thermocouple, RTD, current, voltage and resistance inputs, with model selection based on panel size, alarm configuration and output functions.
Common Parameters
| Parameter | Specification |
|---|
| Installation Method | Panel mounting |
| Feed Output | 24VDC, 30mA |
| Transmission Output | 0-5V with load 250Kohm or higher; 0-10mA with load 750ohm or lower; 4-20mA with load 500ohm or lower |

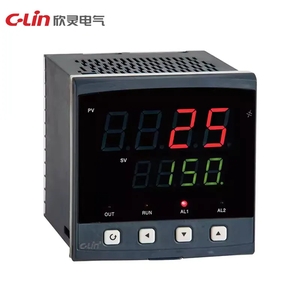

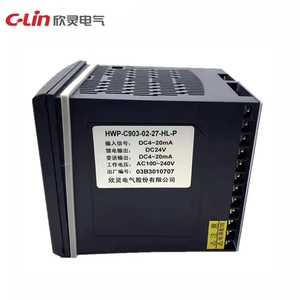

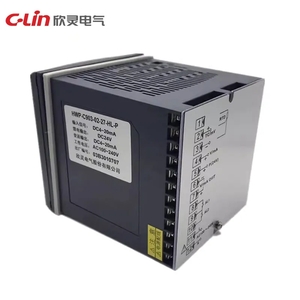

HWP-C903
| Parameter | Specification |
|---|
| Measurement Signal | Thermocouple S, B, K, E, T, J; RTD Pt100, Cu50; 0-10mA, 4-20mA, 0-400ohm, 0-5V and 0-10V signals |
| Output Method | Relay contact on/off control |
| Power Supply | AC90-265V |
| Dimensions | 96 x 96 x 112 mm |
| Panel Cutout | 92 x 92 mm |

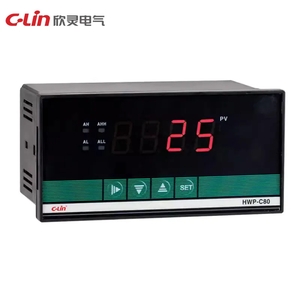

HWP-C803
| Parameter | Specification |
|---|
| Measurement Signal | Thermocouple, RTD, standard current, voltage and resistance signals |
| Output Method | Relay output and 4-20mA transmission output |
| Alarm Mode | Two relay contact control circuits for C803; four relay contact circuits for related C804/C704 versions |
| Power Supply | AC220V |
| Dimensions | 160 x 80 x 94 mm |
| Panel Cutout | 152 x 76 mm |

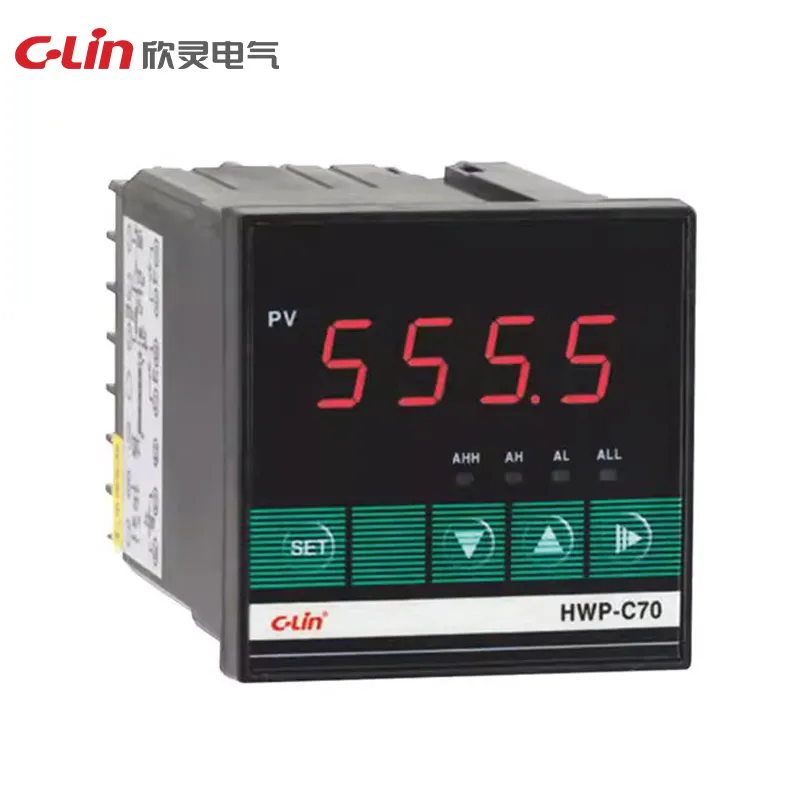

HWP-C703
| Parameter | Specification |
|---|
| Measurement Signal | Thermocouple, RTD, standard current, voltage and resistance signals |
| Output Method | Relay output and 4-20mA transmission output |
| Alarm Mode | Two relay contact control circuits for C703; four relay contact circuits for related C804/C704 versions |
| Power Supply | AC220V |
| Dimensions | 72 x 72 x 112 mm |
| Panel Cutout | 68 x 68 mm |
