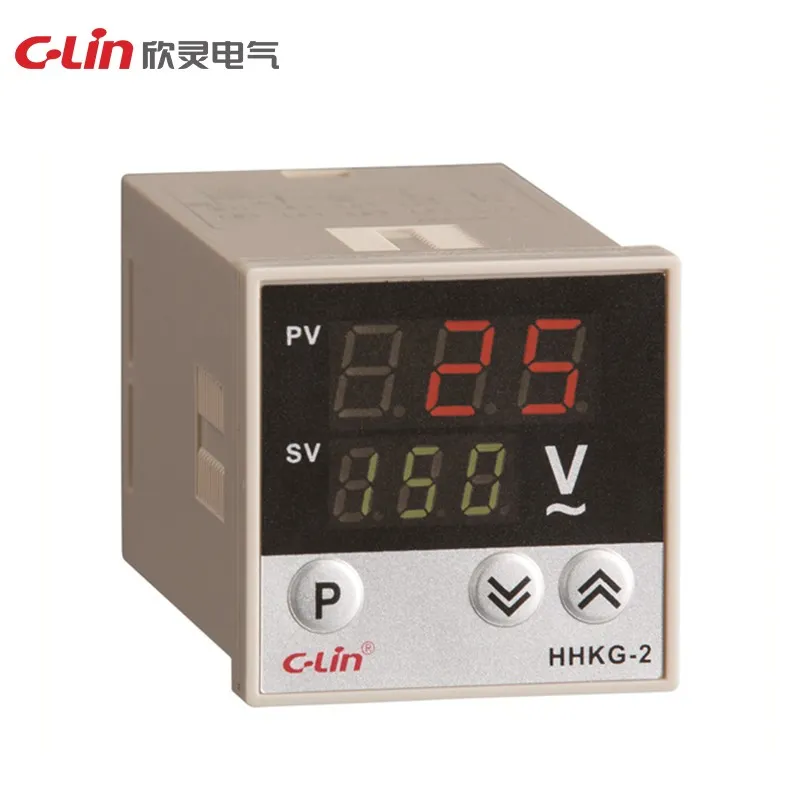

The HHKG Series is a panel-mounted silicon-controlled voltage regulator for AC phase-shift control. It is used where a compact controller is needed to adjust AC output voltage, such as heating or bottle-blowing machine control panels.
| Model / specification | HHKG |
|---|---|
| Voltage range | AC0-200V |
| Trigger mode | SCR phase-shift trigger |
| Working power supply | AC220V |
| Dimensions | HHKG-2: 48×48×90mm; HHKD-2: 72×72×97mm |
| Opening size | HHKG-2: 45×45mm; HHKD-2: 68×68mm |
| Installation | Panel mounting |
| Typical application | Bottle blowing machine voltage control |
