This controller group brings together SIEMENS display modules, burner controls and burner management systems used in gas burner panels. The series is organized for replacement, panel integration and service matching where the project needs clear separation between display operation, flame control and full burner management functions.
Included Product Families
Family
Function
Representative Type
Key Electrical Data
Notes
AZL23
Display and operating unit
AZL23.00A9
DC 5 V, typically <50 mW
Approx. 160 g operating display for burner systems.
AZL5
AZL52.00B1
AC 24 V -15%/+10%
Display unit for higher-level burner management interfaces.
LMV5
Burner management system
LMV51.100C2
AC 230 V, 50/60 Hz ±6%
Management controller with Europe parameter set.
LME39
Gas burner control
LME39.100C2
AC 230 V, 50-60 Hz, 12 VA
Control box with external primary fuse guidance up to T10H250V.
LME
LME11.330C2, LME22.232C2
AC 120 V or AC 230 V, 50-60 Hz
Compact gas burner control range for standard burner sequences.
Selection Notes
Use AZL units where a display and operating interface is required.
Use LMV5 where the burner panel needs a broader management platform.
Use LME and LME39 controls for gas burner sequencing and supervision duties.
Match voltage, frequency, fuse rating and parameter set against the original control panel before replacement.
Product Detail Images
SIEMENS AZL23 Display Operating Unit

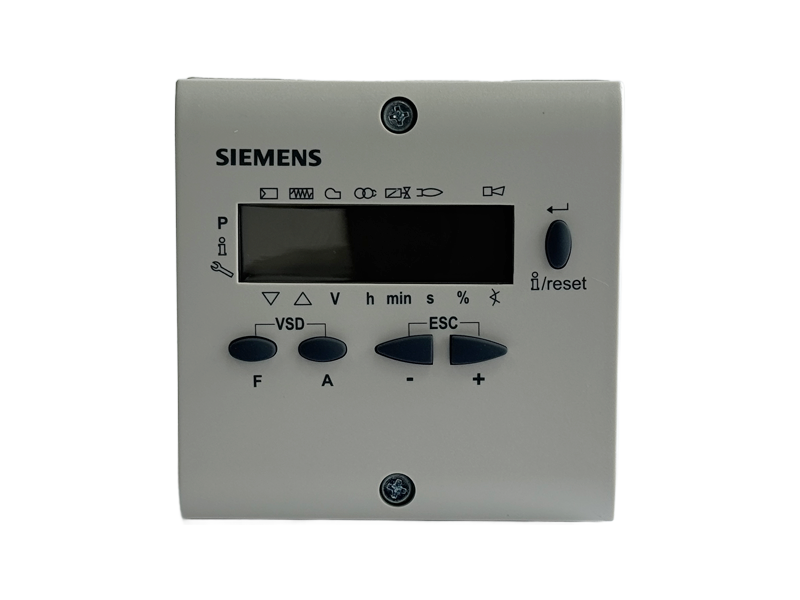

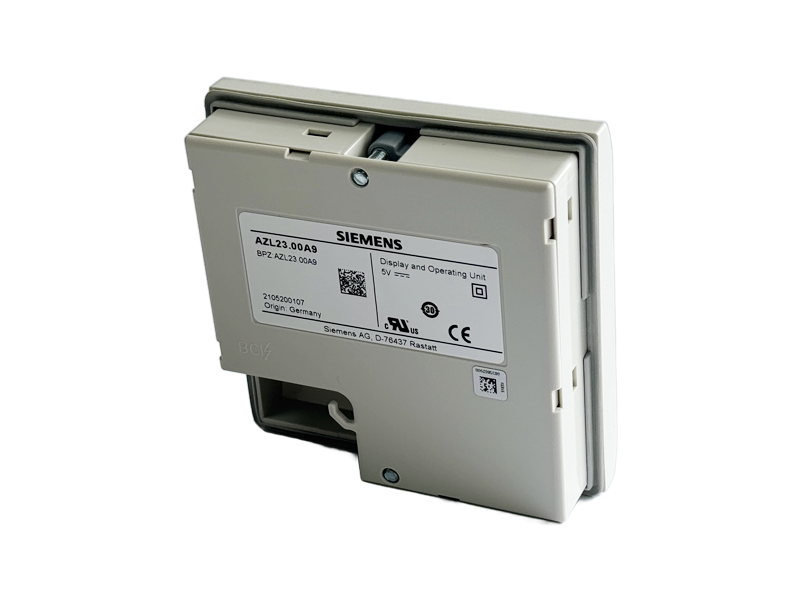

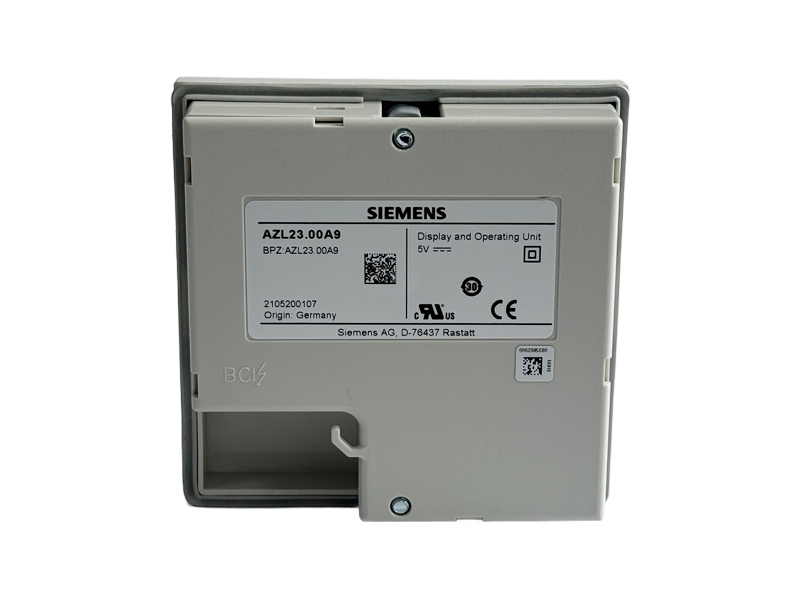

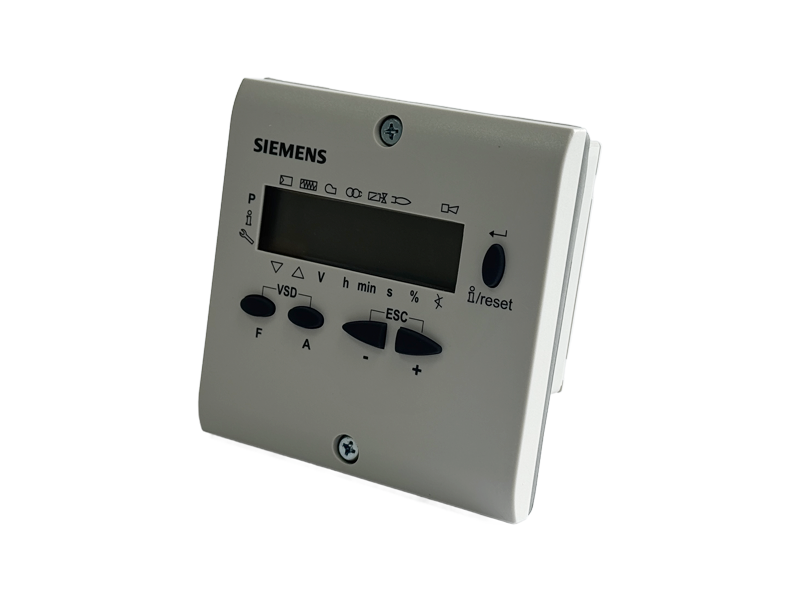

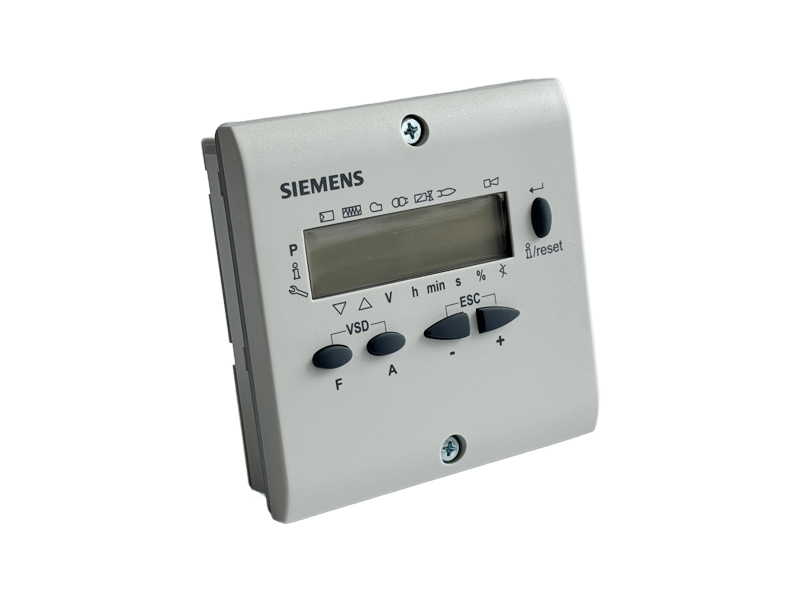

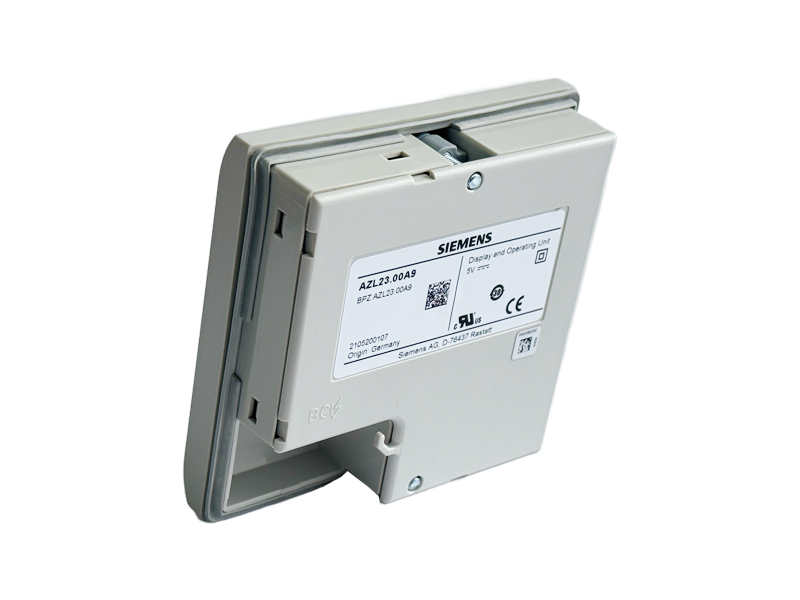

AZL23 display face with screen and operating buttons.AZL23 angled view showing the display and panel profile.AZL23 rear housing and mounting profile.AZL23 rear identification label and housing layout.AZL23 rear housing viewed from the side.
SIEMENS AZL5 Display Operating Unit

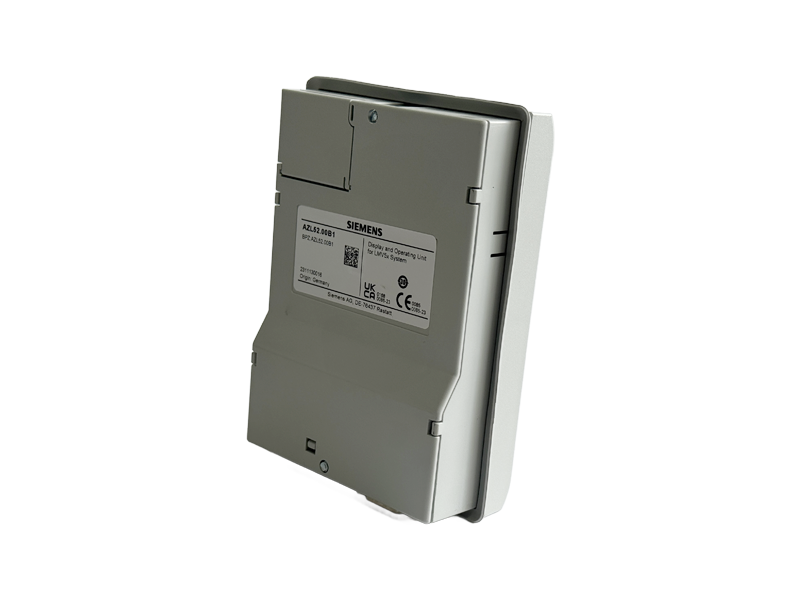

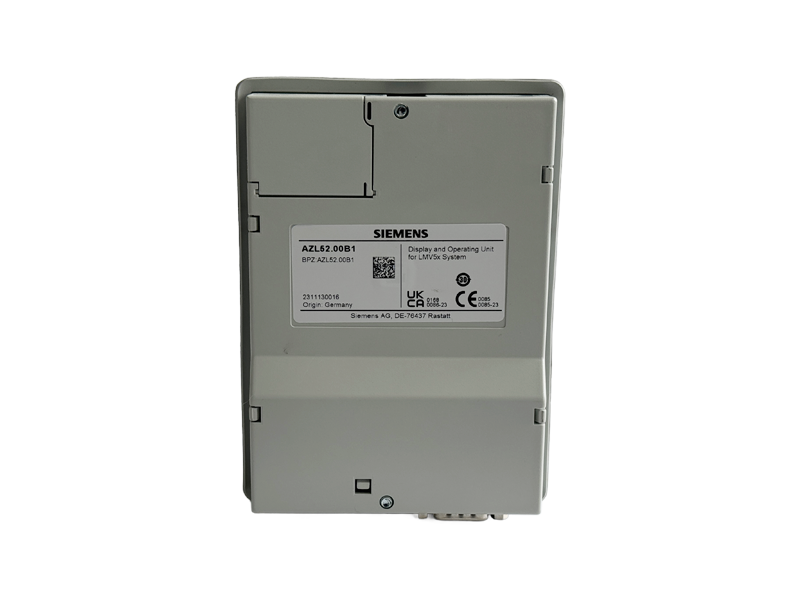

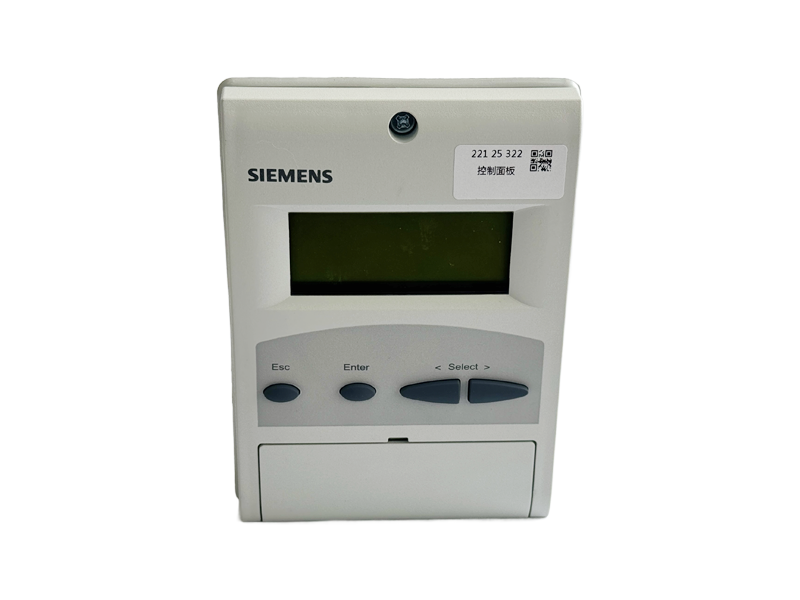

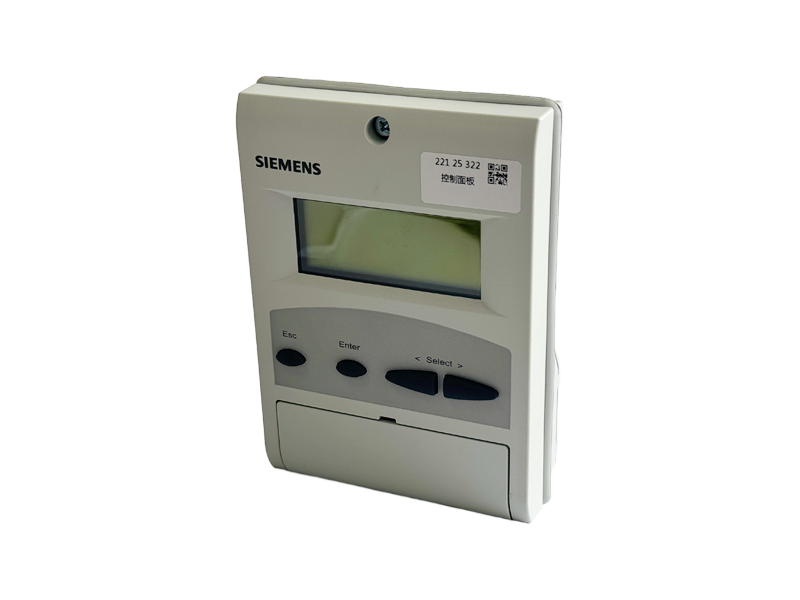

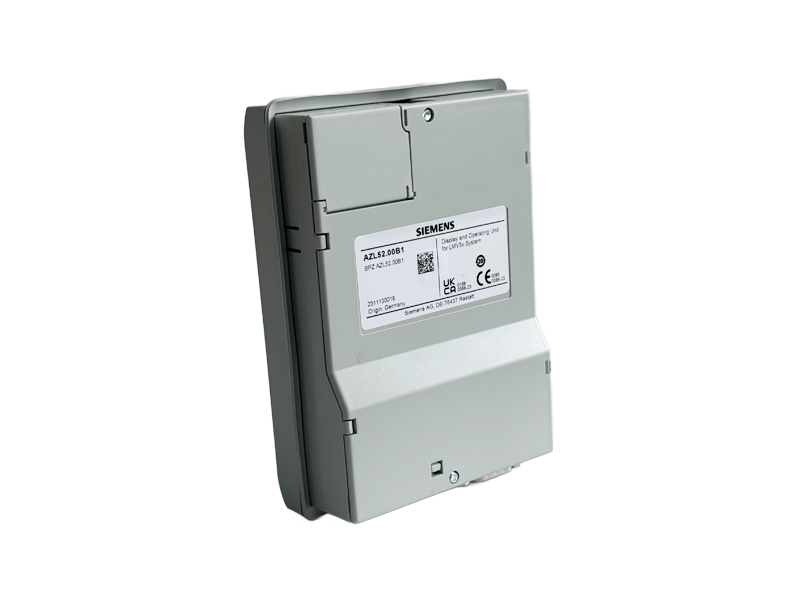

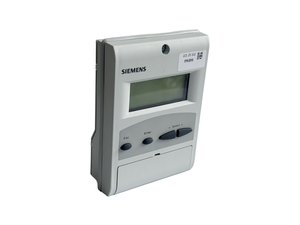

AZL5 display face with screen and navigation buttons.AZL5 angled view showing the display and panel profile.AZL5 rear housing and identification label.AZL5 rear housing and mounting layout.AZL5 rear housing viewed from the side.
SIEMENS LMV5 Burner Management System

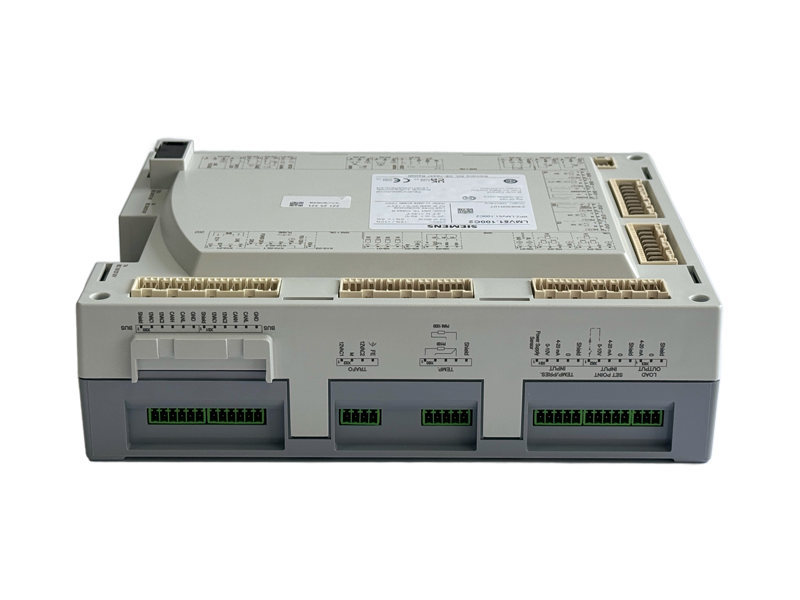

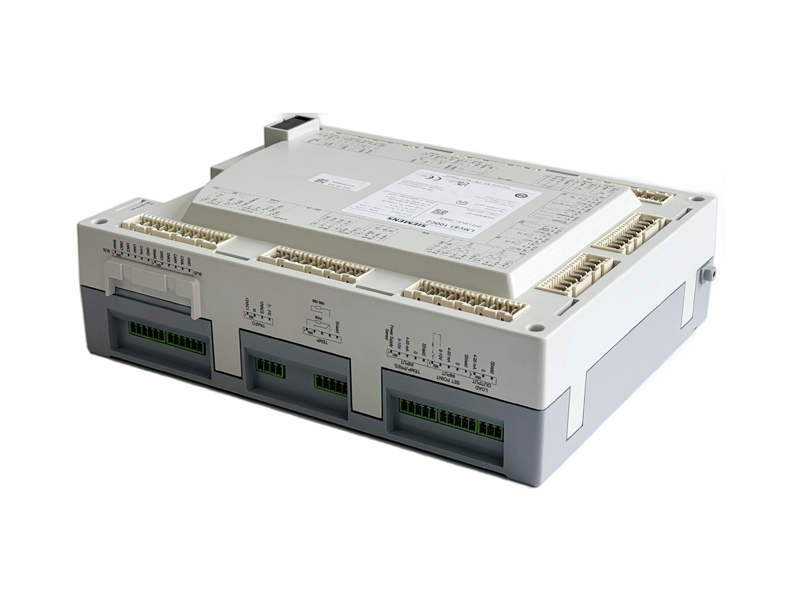

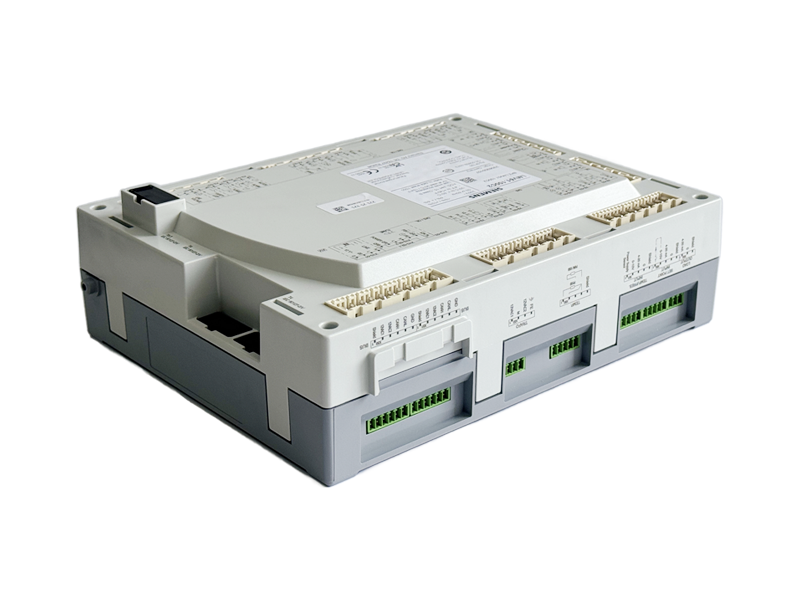

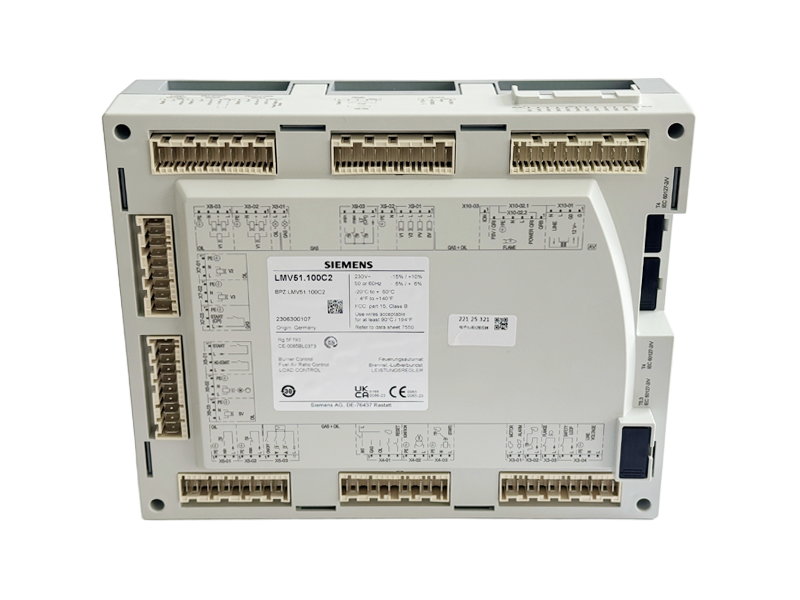

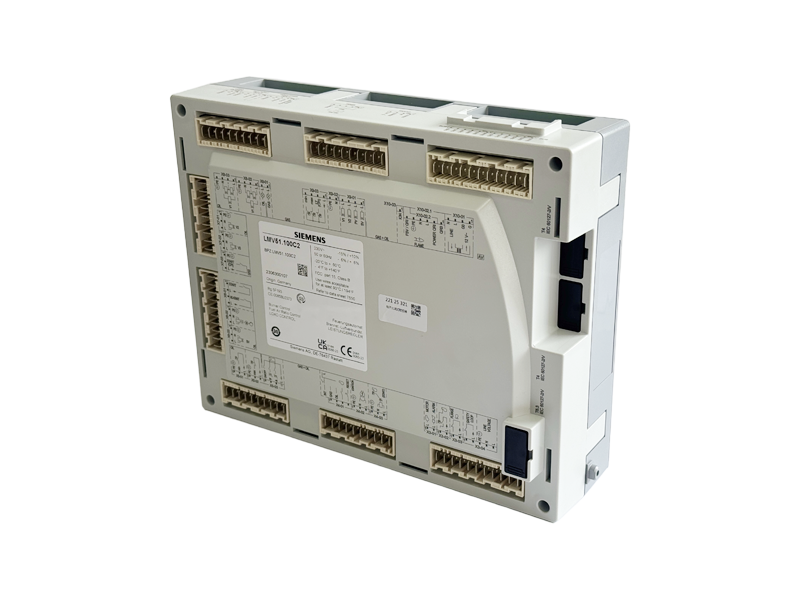

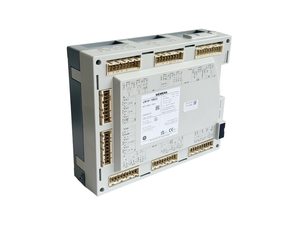

LMV5 housing with connection groups and printed terminal identification.LMV5 angled view showing the connector arrangement.LMV5 side profile and connector openings.LMV5 connector groups viewed from the opposite side.LMV5 front edge and connector arrangement.
SIEMENS LME39 Gas Burner Control

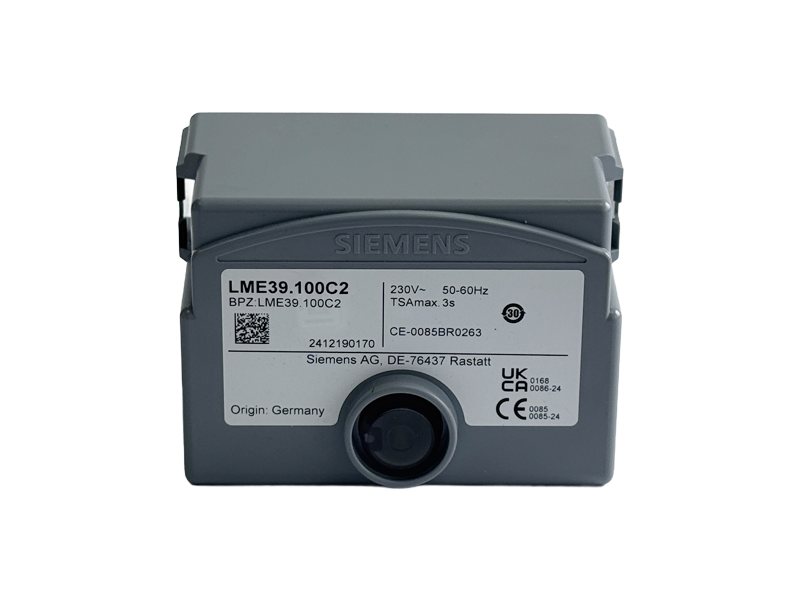

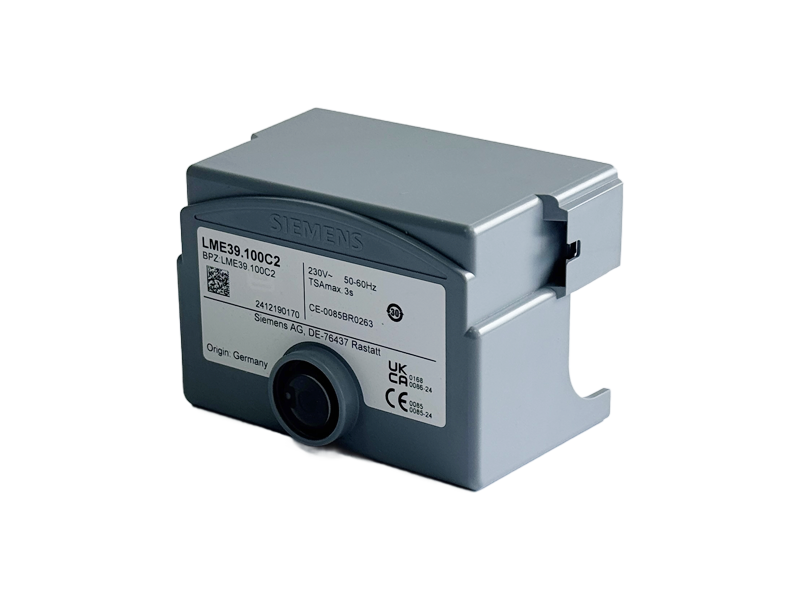

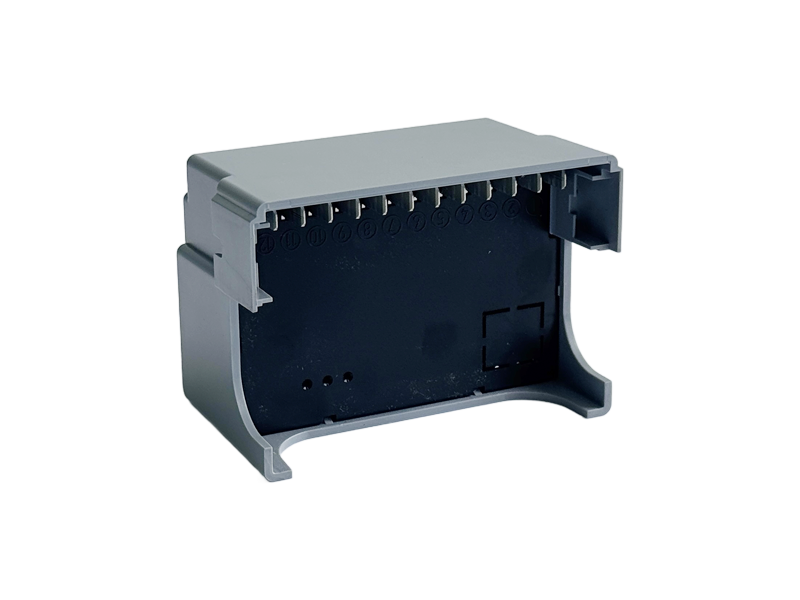

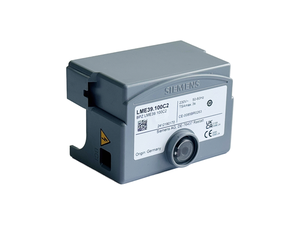

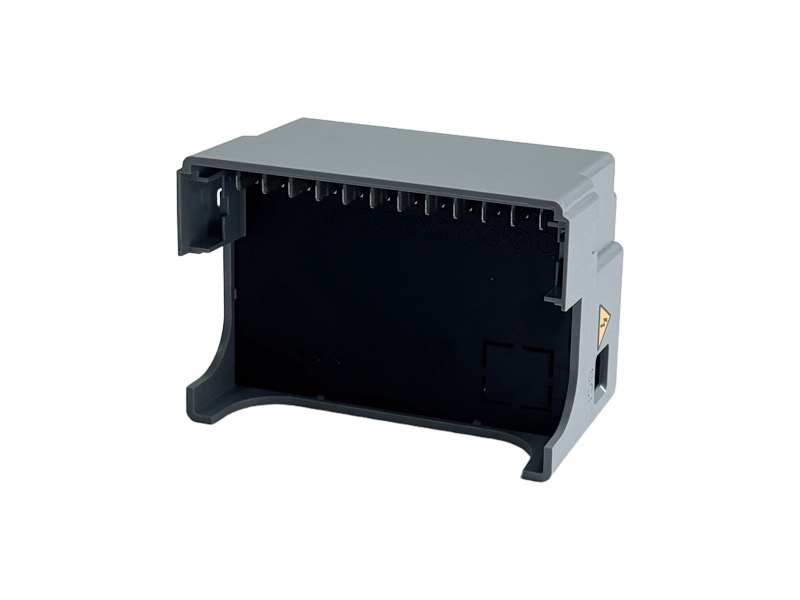

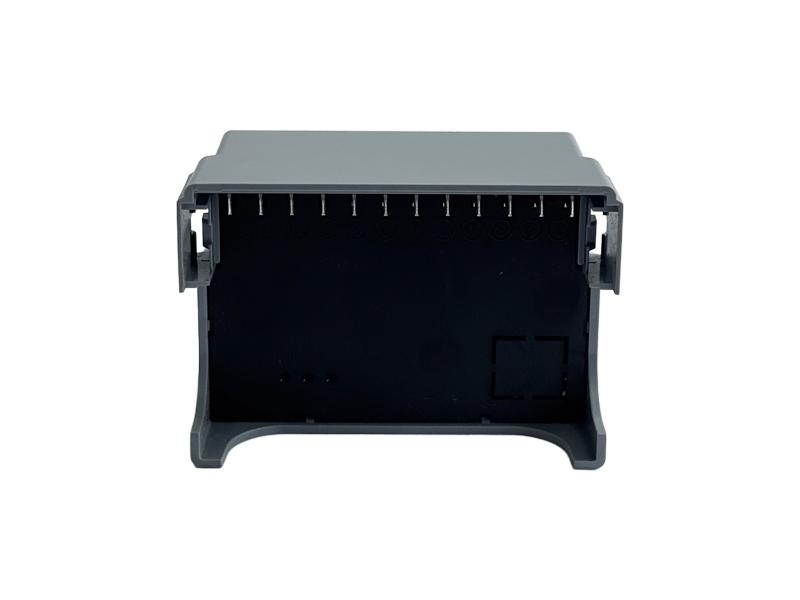

LME39 control housing with identification label and front button.LME39 angled housing view.LME39 underside showing the plug-in connection layout.LME39 plug-in connection face.LME39 underside viewed from the opposite side.
SIEMENS LME Gas Burner Control

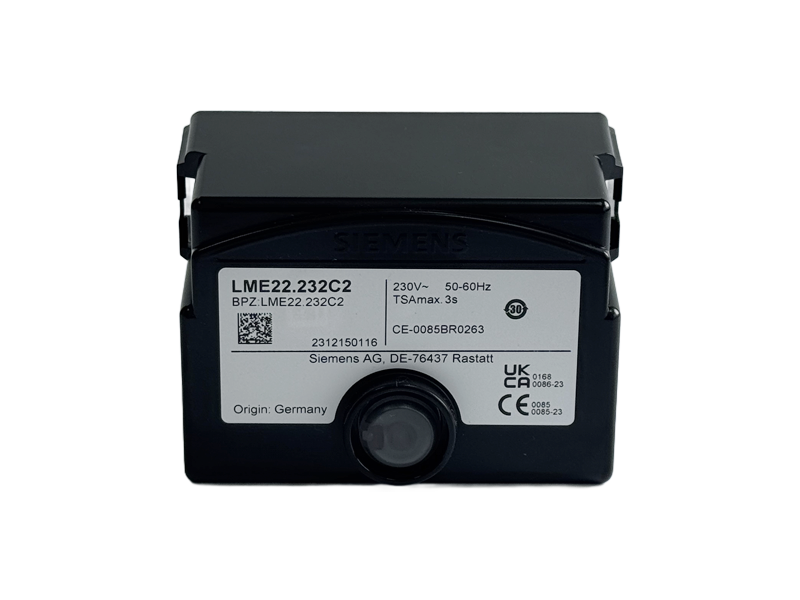

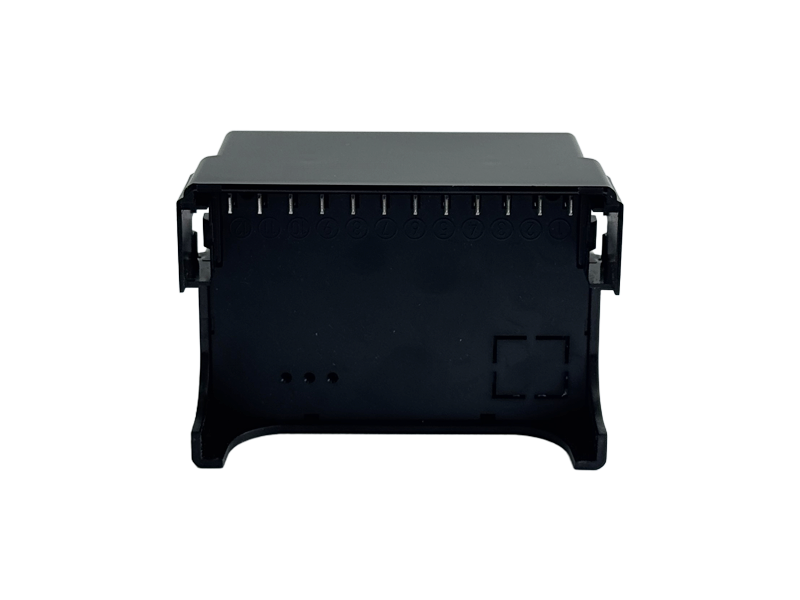

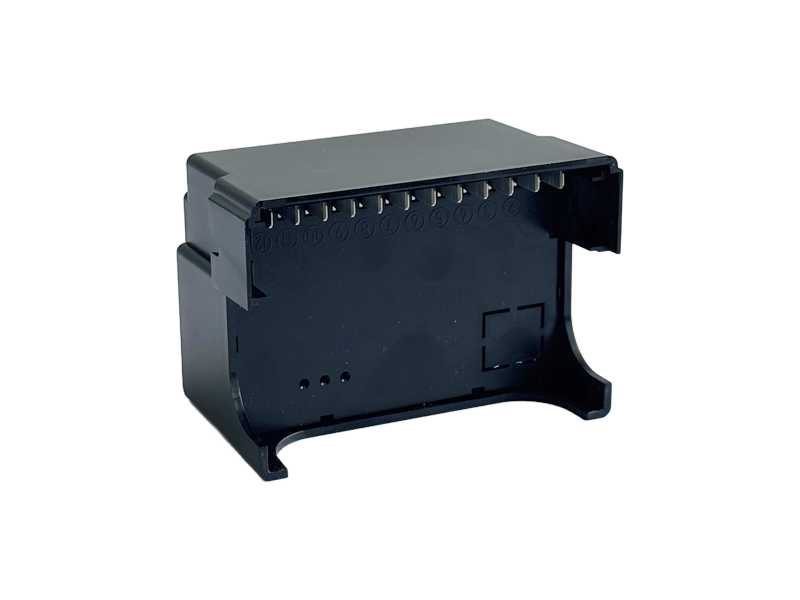

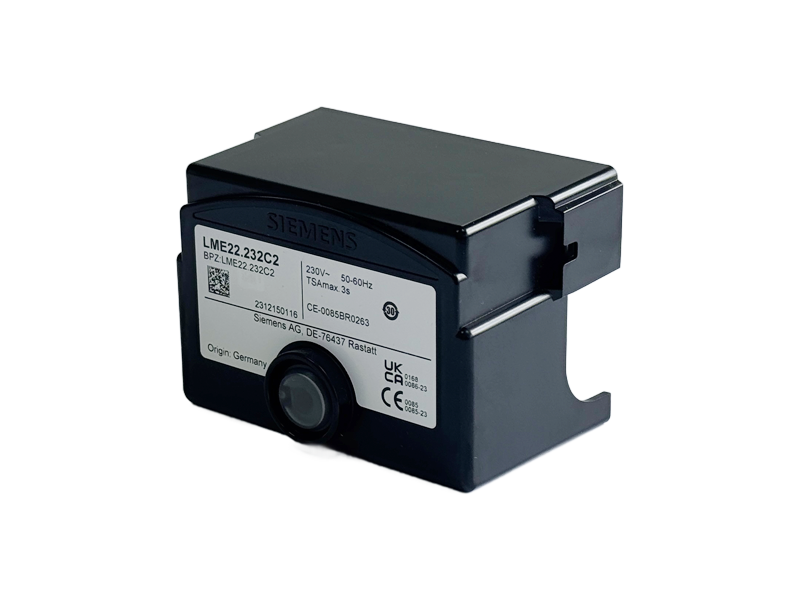

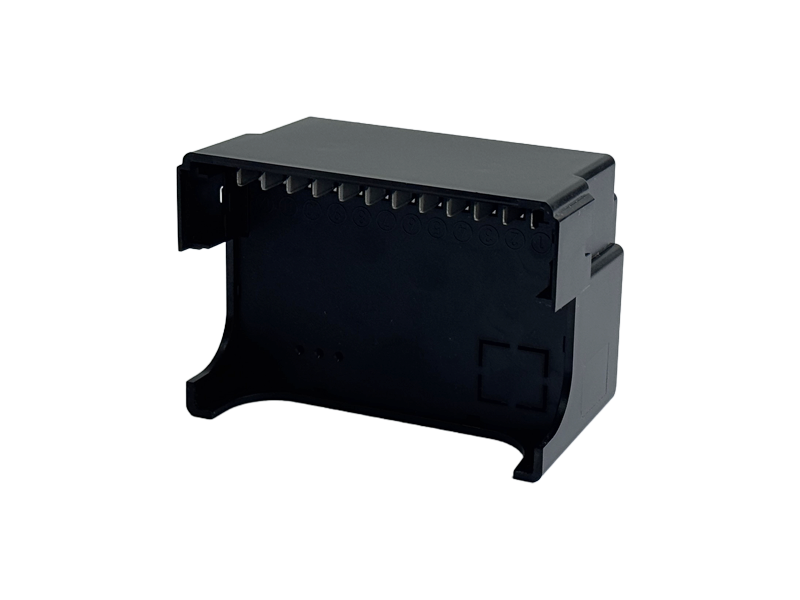

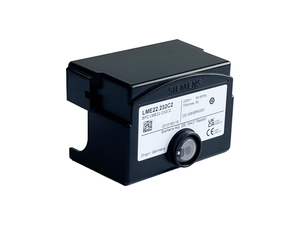

LME control housing with identification label and front button.LME angled housing view.LME underside showing the plug-in connection layout.LME plug-in connection face.LME underside viewed from the opposite side.
