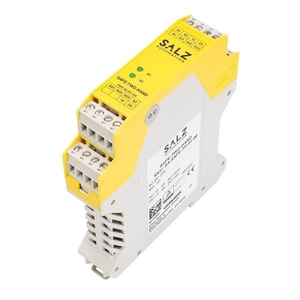

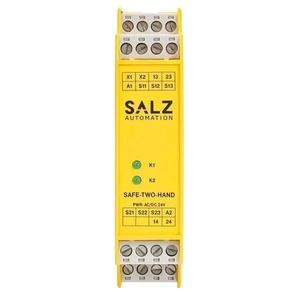

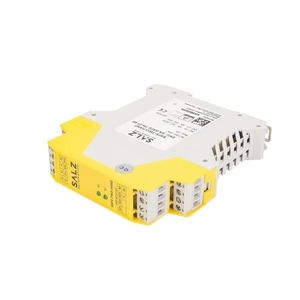

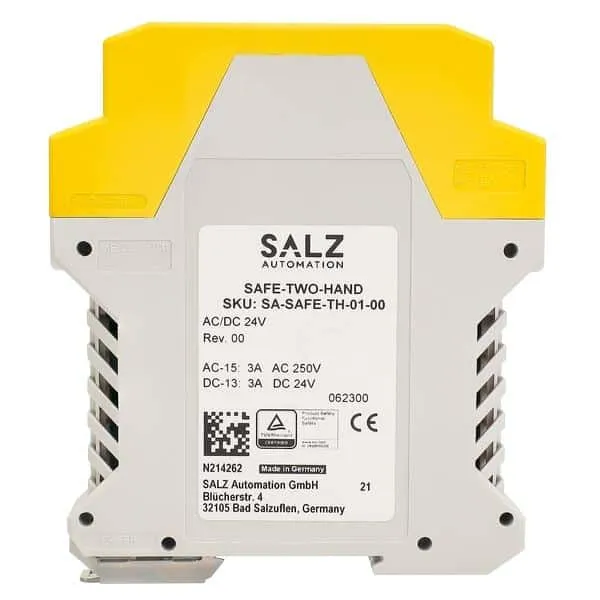

The SAFE-TWO-HAND monitoring relay is designed for two-hand push-button control systems. Each push button input uses 1 NO and 1 NC contact, supporting Type IIIC monitoring and safety performance up to SIL 3 and Category 4, PL e.
Function
- 2 NO safety relay contacts.
- Two-hand push-button monitoring according to Type IIIC.
- Input per push button: 1 NO and 1 NC.
- Automatic start with 0.5 second synchronization time.
Technical Parameters
| Nominal operating voltage | 24 V AC/DC |
|---|
| Input voltage range | 21.6-26.4 V AC/DC |
|---|
| Power consumption | 3.5 VA AC max.; 1.5 W DC max. |
|---|
| Frequency | 50-60 Hz |
|---|
| Control voltage at S11 | 24 V DC at S11/S22 |
|---|
| Synchronization time | 0.5 s |
|---|
| Safe contacts | 2 NO |
|---|
| Maximum switching voltage | 250 V AC |
|---|
| AC resistive contact rating | 6 A, 250 V, 1500 VA |
|---|
| DC resistive contact rating | 6 A, 24 V, 144 W |
|---|
| Switch-on delay | <20 ms |
|---|
| Switch-off delay | <20 ms |
|---|
| Relay contact material | AgSnO2 |
|---|
| Contact life | 10 million cycles |
|---|
Mechanical and Environmental Data
| Wire size | 0.14-2.5 mm² |
|---|
| Mounting | TH35 DIN rail according to EN 60715 |
|---|
| Degree of protection | IP20 |
|---|
| Operating temperature | -15°C to +60°C; max. +40°C for AC use |
|---|
| Storage and transport temperature | -15°C to +85°C |
|---|
| Dimensions | 22.5 mm width, 99 mm height, 114 mm depth |
|---|
| Typical weight | 155 g |
|---|
Standards
| Compliance | EN ISO 13851, EN 60204-1, EN ISO 13849-1, EN 62061 |
|---|
| Safety level | SIL 3, Category 4, PL e, Type IIIC |
|---|
| Certification | TUV Rheinland |
|---|
