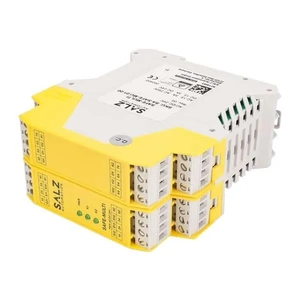

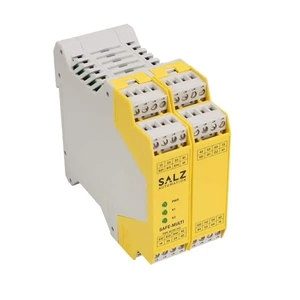

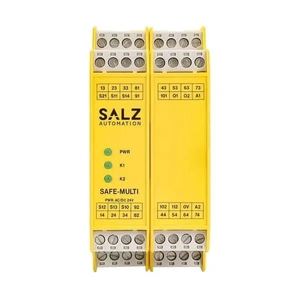

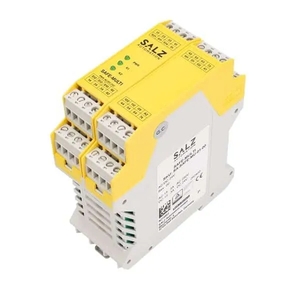

The SAFE-MULTI E-stop safety relay is designed for emergency stop, safety door, and light curtain monitoring where a larger number of safety contacts is required. It supports 1-channel or 2-channel input, automatic or manual start, and safety monitoring up to SIL 3 and Category 4, PL e.
Function
- 7 NO safety relay contacts.
- 4 NC auxiliary contacts.
- 2 PNP outputs.
- Double-channel input for expanded safety monitoring circuits.
Technical Parameters
| Nominal operating voltage | 24 V AC/DC |
|---|
| Input voltage range | 21.6-26.4 V AC/DC |
|---|
| Power consumption | 8.5 VA AC max.; 4.5 W DC max. |
|---|
| Frequency | 50-60 Hz |
|---|
| Safe contacts | 7 NO |
|---|
| Auxiliary contacts | 4 NC |
|---|
| Maximum switching voltage | 250 V AC |
|---|
| AC resistive contact rating | 8 A, 250 V, 2000 VA |
|---|
| DC resistive contact rating | 8 A, 30 V, 240 W |
|---|
| Switch-on delay | <30 ms |
|---|
| Switch-off delay | <20 ms |
|---|
| Relay contact material | AgSnO2 |
|---|
| Contact life | 10 million cycles |
|---|
Mechanical and Environmental Data
| Wire size | 0.14-2.5 mm² |
|---|
| Mounting | TH35 DIN rail according to EN 60715 |
|---|
| Degree of protection | IP20 |
|---|
| Operating temperature | -15°C to +40°C |
|---|
| Storage and transport temperature | -15°C to +85°C |
|---|
| Dimensions | 45 mm width, 99 mm height, 114 mm depth |
|---|
| Typical weight | 314 g |
|---|
Standards
| Compliance | EN 60204-1, EN ISO 13849-1, IEC 62061 |
|---|
| Safety level | SIL 3, Category 4, PL e |
|---|
| Certification | TUV Rheinland |
|---|
