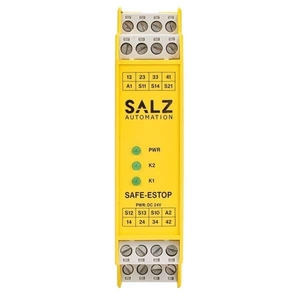

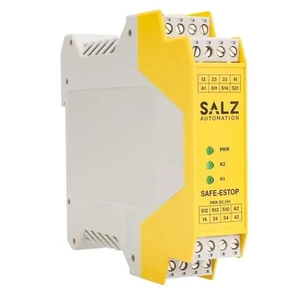

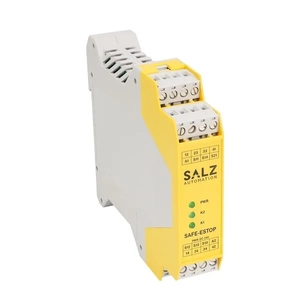

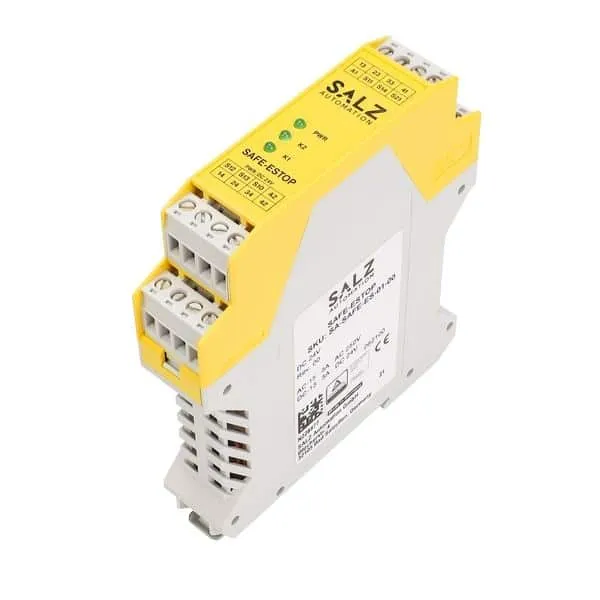

The SAFE-ESTOP safety relay is used for emergency stop buttons, safety door switches, and light curtain monitoring. It supports 1-channel or 2-channel operation, automatic or manual start, and provides safety monitoring up to SIL 3 and Category 4, PL e.
Function
- 3 NO safety relay contacts and 1 NC auxiliary contact.
- 1-channel or 2-channel input with optional cross-circuit detection.
- Automatic and manual start modes.
- Pluggable screw terminal blocks for DIN rail control panels.
Technical Parameters
| Nominal operating voltage | 24 V DC |
|---|
| Input voltage range | 21.6-26.4 V DC |
|---|
| Power consumption | 2.6 W max. |
|---|
| Safe contacts | 3 NO |
|---|
| Auxiliary contacts | 1 NC |
|---|
| Maximum switching voltage | 250 V AC |
|---|
| AC resistive contact rating | 8 A, 250 V, 2000 VA |
|---|
| DC resistive contact rating | 8 A, 30 V, 240 W |
|---|
| Switch-on delay | <50 ms |
|---|
| Switch-off delay | <20 ms |
|---|
| Relay contact material | AgSnO2 |
|---|
| Contact life | 10 million cycles |
|---|
Mechanical and Environmental Data
| Wire size | 0.14-2.5 mm² |
|---|
| Mounting | TH35 DIN rail according to EN 60715 |
|---|
| Degree of protection | IP20 |
|---|
| Operating temperature | -15°C to +55°C |
|---|
| Storage and transport temperature | -15°C to +85°C |
|---|
| Dimensions | 22.5 mm width, 99 mm height, 114 mm depth |
|---|
| Typical weight | 160 g |
|---|
Standards
| Compliance | EN 60204-1, EN ISO 13849-1, IEC 62061, IEC 61508 parts 1-2 and 4-7 |
|---|
| Safety level | SIL 3, Category 4, PL e |
|---|
| Certification | TUV Rheinland |
|---|
