The RT58 series covers cylindrical fuse links and matching fuse bases for industrial, commercial and household electrical protection systems. The fuse links provide overload and short-circuit protection, while the fuse base provides DIN rail mounting and electrical connection.
Fuse Link Range
| Model | Rated current range | Rated voltage |
|---|
| RT58-32 (RO15) | 2 A to 32 A at 500 VAC; 2 A to 16 A at 690 VAC | 500 VAC / 690 VAC |
| RT58-63 (RO16) | Listed in the RT58 series catalog | 500 VAC / 690 VAC |
| RT58-125 | Listed in the RT58 series catalog | 500 VAC / 690 VAC |

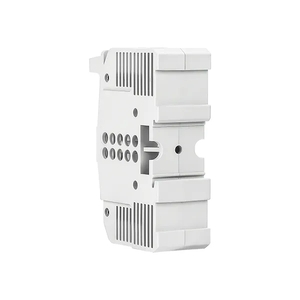

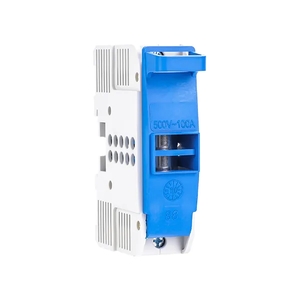

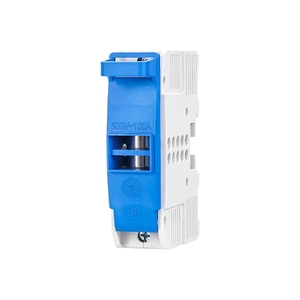

Fuse Base Data
| Mounting method | DIN rail installation |
|---|
| Wiring range | 4-50 mm2 |
|---|
| Fuse size | 22 x 58 mm |
|---|
| Rated operational current | 125 A |
|---|
| Rated operational voltage | 400 V / 690 V |
|---|
| Rated insulation voltage | 800 V |
|---|
| Rated impulse withstand voltage | 6 kV |
|---|
