The Rotary Encoders CHB38SH is designed for speed, position, angle and length feedback. The range covers CHB38S, CHB38H, with models sharing the core platform while differing by ratings, functions or interface options.
Common Parameters
| Encoder type | Photoelectric incremental rotary encoder |
|---|
| Main body diameter | φ38mm |
|---|
| Working power | DC5-24V for N, E and F output types; DC5V for driver output type |
|---|
| Current consumption | ≤60mA |
|---|
| Pulse output | 100, 200, 300, 360, 400, 500, 600, 800, 1000, 1024, 1200, 1600, 2000, 2500 pulses per revolution |
|---|
| Output phase | A, B, Z or A, B, Z, -A, -B, -Z |
|---|
| Output options | N: open-collector NPN; E: voltage output; F: complementary output; L: driver output |
|---|
| Standard cable length | 2m |
|---|
| Applications | Bending machines, solar cutting machines, glass machinery and food packaging equipment |
|---|

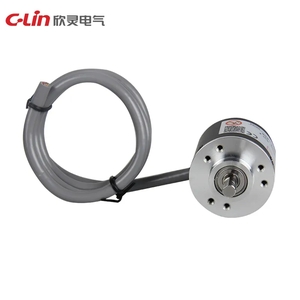

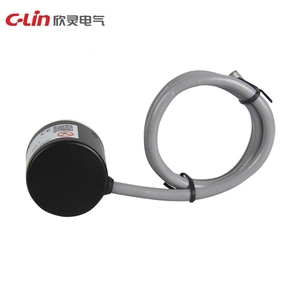

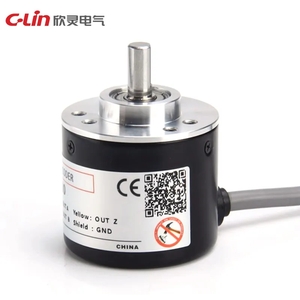

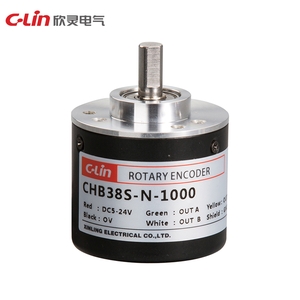

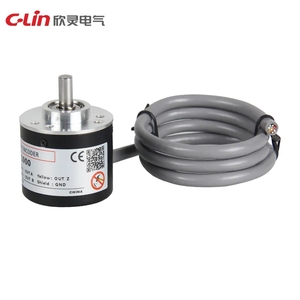

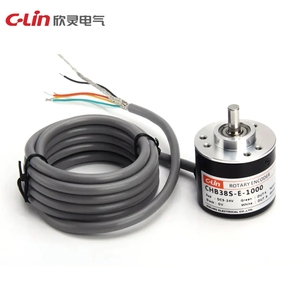

CHB38S
| Shaft construction | Solid shaft |
|---|
| Shaft diameter | φ6mm |
|---|
| Termination mode | Side-entry cable |
|---|

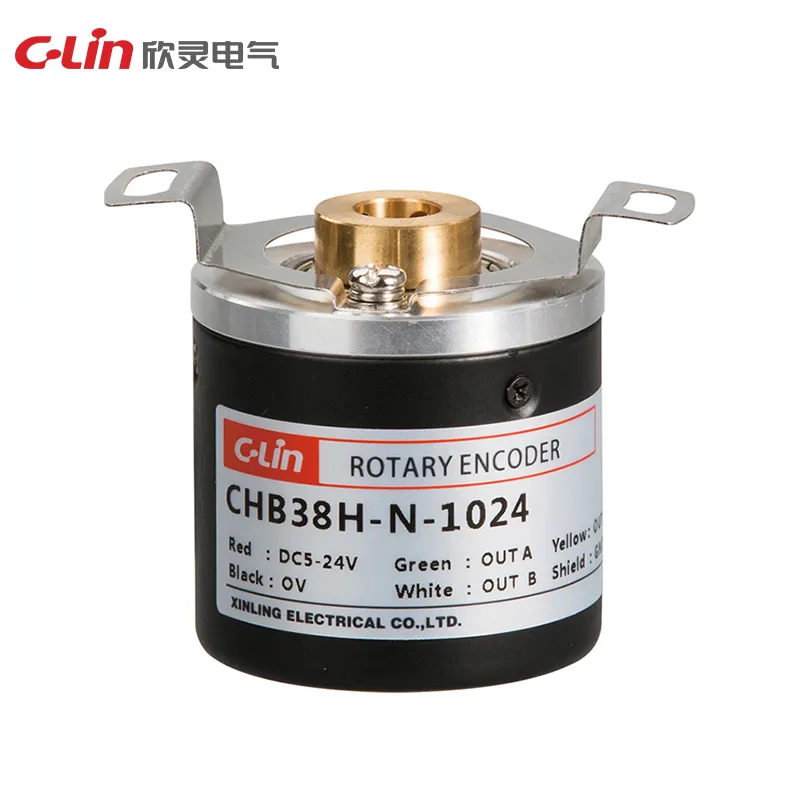

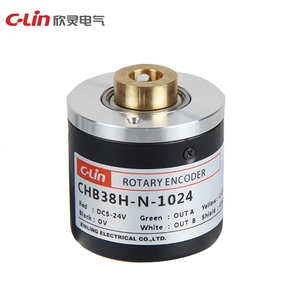

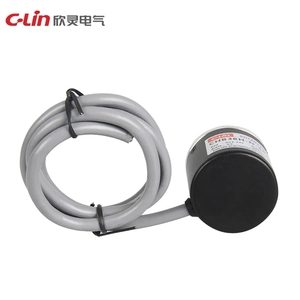

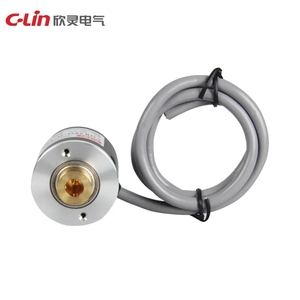

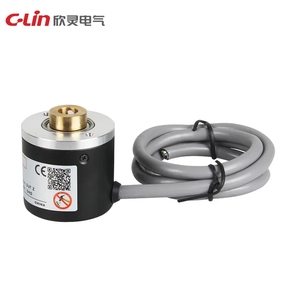

CHB38H
| Shaft construction | Semi-hollow shaft |
|---|
| Mounting note | Encoder body with set-screw fixing and standard 2m cable |
|---|
| Ordering information | Specify model, output method, pulse count, cable length and quantity |
|---|
