RE-01 to RE-04 Pneumatic Flow Control Valves

Series Part Number

Part Number: RE - 01
Explanation:

Series

RE - Adjustable one-way pneumatic flow control valve with check-valve bypass

Port Size

01 - 1/8in
02 - 1/4in
03 - 3/8in
04 - 1/2in

Description

RE flow control valves combine an adjustable restriction with a parallel check-valve path for pneumatic flow adjustment. The knurled control allows manual setting, while four connection sizes cover RE-01 through RE-04.

Model and port selection

The suffix after RE identifies the port size, for example RE-02 for the 1/4″ model.

ModelPort codeConnection size
RE-01011/8″
RE-02021/4″
RE-03033/8″
RE-04041/2″

Operating specifications

ParameterRE-01 / RE-02 / RE-03 / RE-04
Working mediumAir
General working pressure range0-0.8MPa
Working temperature0-70°C
Body materialAluminum alloy
O-ring materialNBR

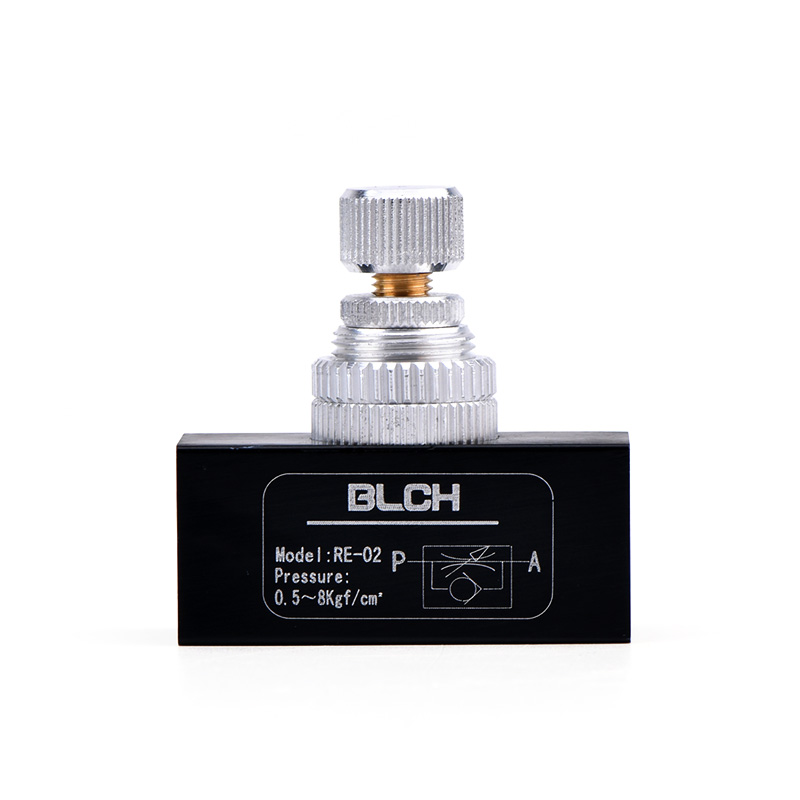

The pictured RE-02 is marked 0.5-8kgf/cm². Apply its marked operating range to that configuration when selecting system pressure.

Flow-control function

The pneumatic symbol shows an adjustable restriction and a check-valve bypass between ports P and A. Match the valve's marked flow direction to the circuit when selecting the controlled direction.

RE adjustable flow restriction with a parallel check valve between P and A
RE flow-control symbol with adjustable restriction and check-valve bypass.
