R200A-02 is an air pressure regulator with a 1/4″ connection and a maximum flow rating of 1546L/min (ANR). It provides manual pressure adjustment over a 0.15-0.85MPa working range. A mounting bracket and pressure gauge are available as separate configuration options.
| Parameter | R200A-02 |
|---|---|
| Port Rc(G) | 1/4″ |
| Maximum flow | 1546L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | 5-60°C |
| Code | Option |
|---|---|
| B | Mounting bracket |
| G | Pressure gauge |
The illustrated unit is shown without a gauge. Select the G option when a pressure gauge is required.

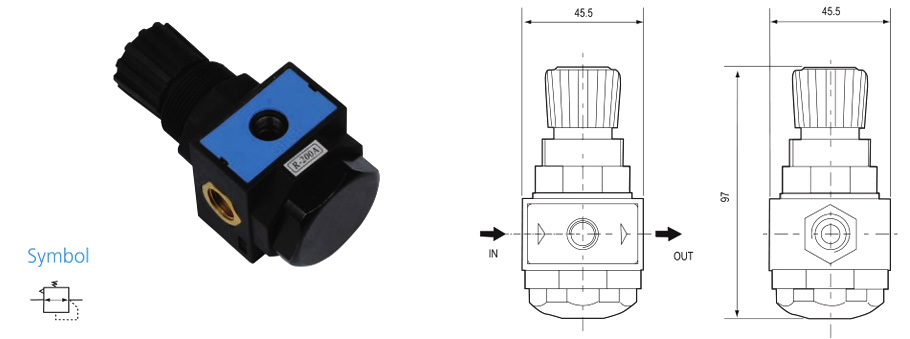

The front and side outlines each show a 45.5mm width, with a 97mm vertical dimension. The drawing marks inlet and outlet direction and includes the regulator pneumatic symbol.
The attached Pneumatic Components Catalogue includes R200A regulators and other pneumatic components.
