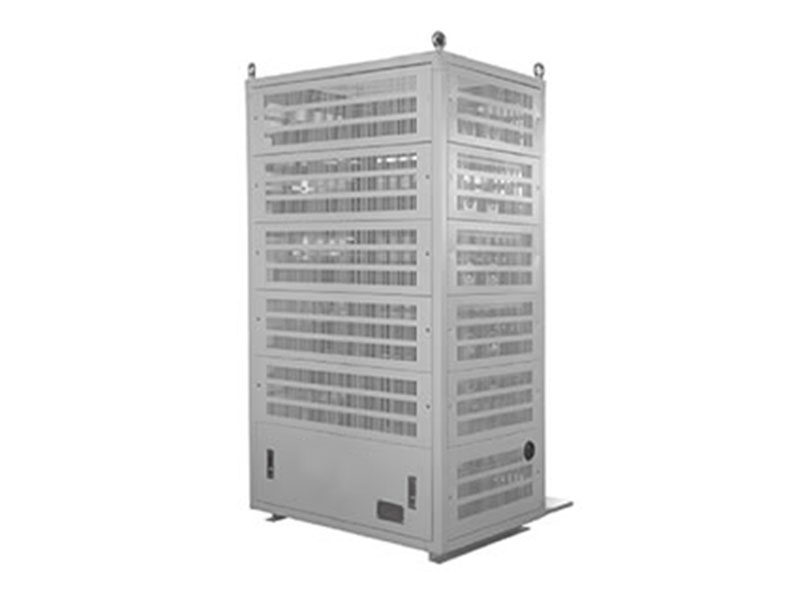

The PRU power resistor unit is a cabinet of wirewound elements for high-power inverter braking, lifting equipment, elevators and simulated load tests.
Captured data specifies 30-200kW ratings, operation below 1200V, 0.5kR-100kR resistance and IP00 or IP23 configurations. Select the unit by braking power, resistance, duty and matched inverter or braking-unit requirements.

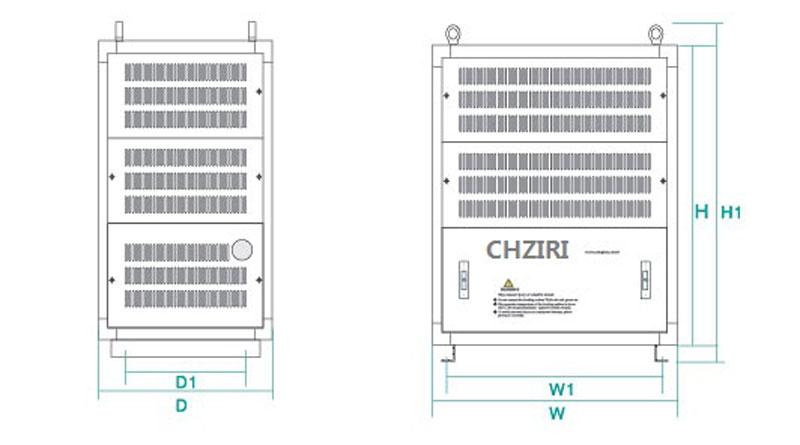

| Type | Power (KW) | Dimension(mm) | Terminal | Gross weigth (kg) | Cable(m㎡) | Combination | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | H1 | D1 | W1 | ||||||
| 30 | 700 | 500 | 1100 | 1185 | 342 | 615 | M6 | 73.4 | 16 | 12*2. 5kW | |
| 40 | 700 | 500 | 1100 | 1185 | 342 | 615 | M6 | 87 | 25 | 16*2. 5kW | |
| 50 | 700 | 500 | 1500 | 1585 | 342 | 615 | M6 | 100 | 25 | 20*2. 5kW | |
| 60 | 700 | 500 | 1500 | 1585 | 342 | 615 | M6 | 114 | 35 | 24*2. 5kW | |
| 70 | 700 | 500 | 1800 | 1885 | 342 | 615 | M6 | 127 | 35 | 28*2. 5kW | |
| 80 | 700 | 500 | 1800 | 1885 | 342 | 615 | M6 | 138 | 50 | 32*2. 5kW | |
| 90 | 700 | 500 | 2000 | 2085 | 342 | 615 | M6 | 155 | 50 | 36*2. 5kW | |
| 100 | 700 | 500 | 2000 | 2085 | 342 | 615 | M6 | 165 | 50 | 40*2. 5kW | |
| 200 | 1400 | 500 | 2000 | 2085 | 342 | 615 | M6 | 331 | 75 | 2*100kW | |

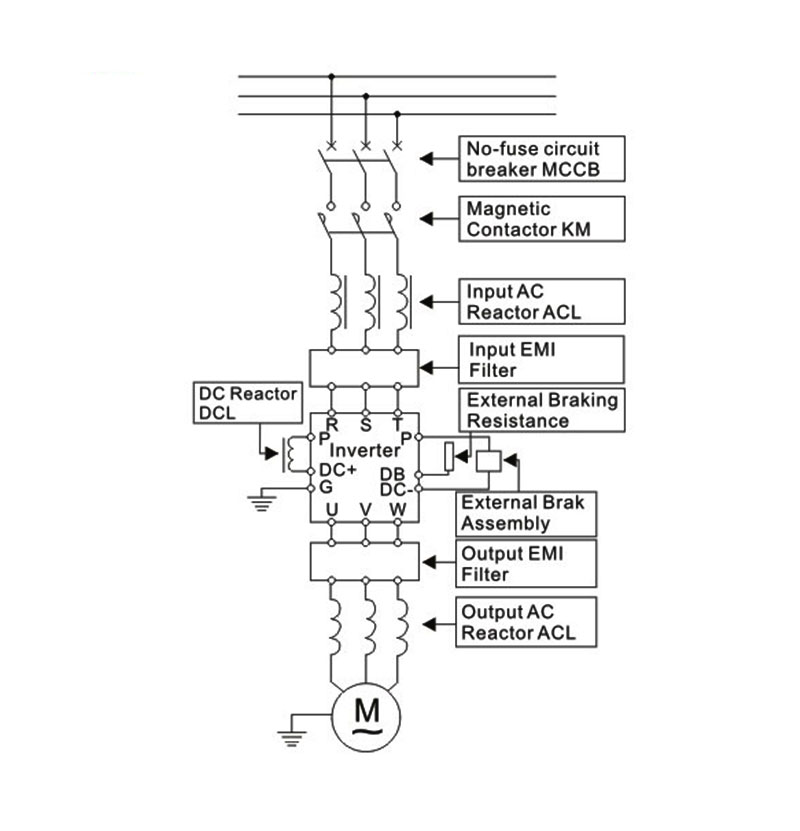

| Inverter | Braking Unit | Braking resistor | ||||
|---|---|---|---|---|---|---|
| Voltage(V) | Motor(KW) | Model | Quantity(PCS) | Recommed resistor value | Resisitor specification | Quantity(PCS) |
| 220V | 0.75KW | Built-in | 80W200Ω | 80W200Ω | 1 | |
| 1.5KW | Built-in | 200W100Ω | 200W100Ω | 1 | ||
| 2.2KW | Built-in | 300W70Ω | 300W70Ω | 1 | ||
| 3.7KW | Built-in | 400W40Ω | 400W40Ω | 1 | ||
| 380V | 0.75KW | Built-in | 80W750Ω | 80W750Ω | 1 | |
| 1.5KW | Built-in | 200W400Ω | 200W400Ω | 1 | ||
| 2.2KW | Built-in | 300W250Ω | 300W250Ω | 1 | ||
| 3.7KW | Built-in | 400W150Ω | 400W150Ω | 1 | ||
| 5.5KW | Built-in | 600W100Ω | 600W100Ω | 1 | ||
| 7.5KW | Built-in | 800W75Ω | 800W75Ω | 1 | ||
| 11KW | Built-in | 1000W50Ω | 1000W50Ω | 1 | ||
| 15KW | Built-in | 1500W40Ω | 1500W40Ω | 1 | ||
| 18.5KW | 4030 | 1 | 2500W35Ω | 2500W35Ω | 1 | |
| 22KW | 4030 | 1 | 3000W27.2Ω | 3000W27.2Ω | 1 | |
| 30KW | 4030 | 1 | 5000W19.2Ω | 2500W38.4Ω | 2 | |
| 37KW | 4045 | 1 | 6000W16Ω | 2000W48Ω | 3 | |
| 45KW | 4045 | 2 | 9600W13.6Ω | 2500W54.4Ω | 4 | |
| 55KW | 4030 | 2 | 12000W10Ω | 2000W60Ω | 6 | |
| 75KW | 4045 | 2 | 19200W6.8Ω | 2500W54.4Ω | 8 | |
| Braking Resistor Box | Quantity(PCS) | |||||
| 90KW | 4030 | 3 | 9600W20Ω | 3 | ||
| 100KW | 4220 | 1 | 9600W20Ω | 3 | ||
| 132-160KW | 4220 | 1 | 40KW3.4Ω | 1 | ||
| 185-220KW | 4220 | 1 | 60KW3.2Ω | 1 | ||
| 250-315KW | 4220 | 2 | 40KW4.5Ω | 2 | ||
| 315-600KW | 4220 | 3 | 60KW3Ω | 3 | ||
