HPZ Series programmable power meters provide panel-mounted current and voltage indication for electrical cabinets and power distribution equipment. The HPZ42, HPZ72, HPZ80 and HPZ96 models cover three-phase AC monitoring in different panel sizes, while HPZ96B adds single-phase measurement with transmitter, relay alarm and communication options.
Common Parameters
| Parameter | Specification |
|---|
| Installation Method | Panel mounting |
| Main Measurement Signal | AC current and voltage |
| Display Range | 0-9999 for the main listed models |
| Current Measurement | AC0-5A direct input; AC5A and above with current transformer |
| Voltage Measurement | AC0-500V direct input; AC500V and above with voltage transformer |
| Power Supply | AC220V or AC380V for the main three-phase models |
| Accuracy | Class 0.5 or better for HPZ42, HPZ72, HPZ80 and HPZ96; HPZ96B available with class 1.0 or class 0.5 configuration |

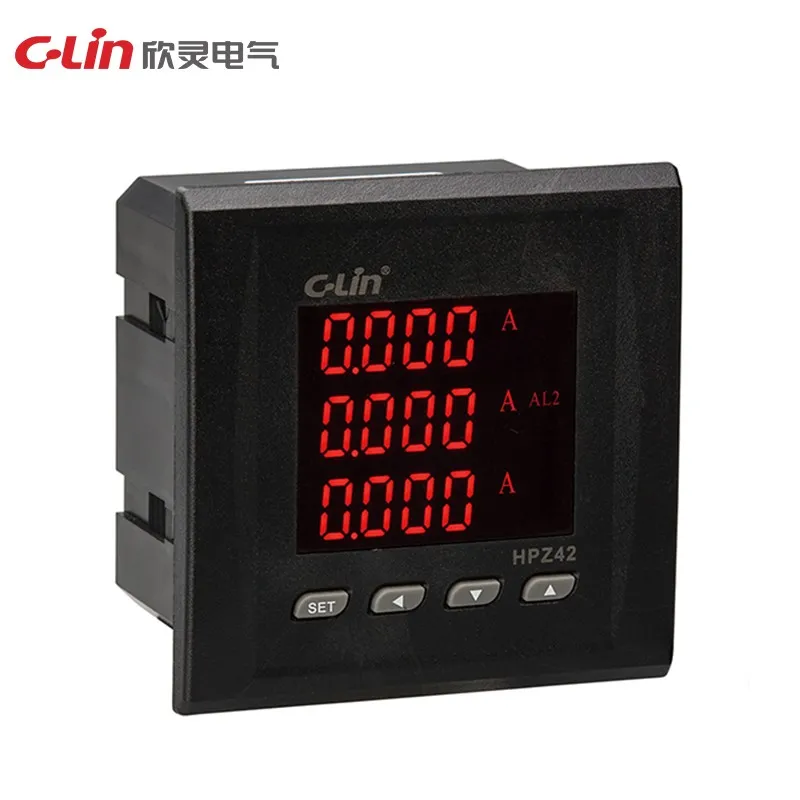

HPZ42
| Parameter | Specification |
|---|
| Measurement Type | Three-phase AC current and voltage |
| Display | Integrated digital display |
| Communication | RS485 optional |
| Dimensions | 123 x 123 x 96 mm |
| Panel Cutout | 112 x 112 mm |

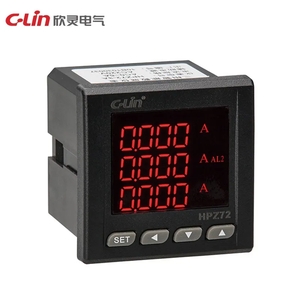

HPZ72
| Parameter | Specification |
|---|
| Measurement Type | Three-phase AC current and voltage |
| Dimensions | 72 x 72 x 85 mm |
| Panel Cutout | 68 x 68 mm |

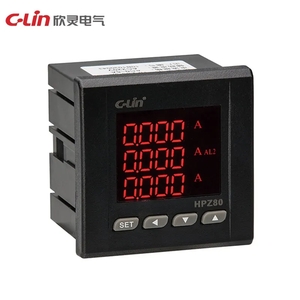

HPZ80
| Parameter | Specification |
|---|
| Measurement Type | Three-phase AC current and voltage |
| Dimensions | 84 x 84 x 85 mm |
| Panel Cutout | 76 x 76 mm |

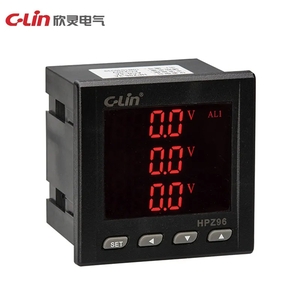

HPZ96
| Parameter | Specification |
|---|
| Measurement Type | Three-phase AC current and voltage |
| Display | Integrated digital display |
| Communication | RS485 optional |
| Dimensions | 96 x 96 x 96 mm |
| Panel Cutout | 91 x 91 mm |

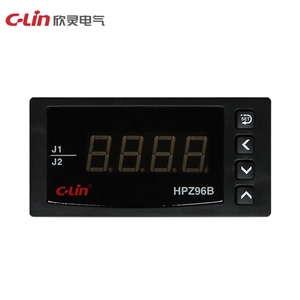

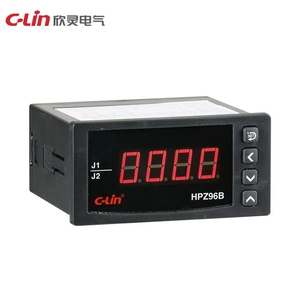

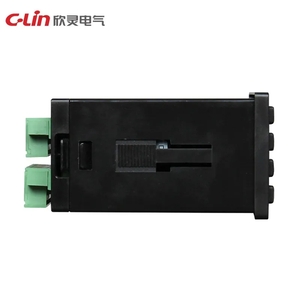

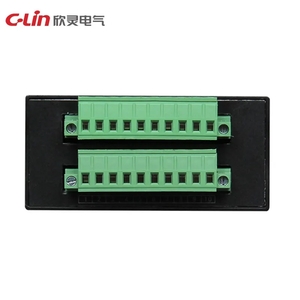

HPZ96B
| Parameter | Specification |
|---|
| Measurement Type | Single-phase AC current and voltage |
| Accuracy | Class 1.0 or class 0.5 configuration |
| Display | 0.56-inch digital tube display |
| Transmitter Output | 4-20mA, output impedance 350 ohm or less |
| Alarm Output | J1/J2 relay alarm option |
| Communication | RS485 optional |
| Power Supply | AC100-240V |
| Dimensions | 96 x 48 x 90 mm |
| Panel Cutout | 92 x 44 mm |
| Typical Use | Measurement, transmission and control of single-phase AC current and voltage signals |
