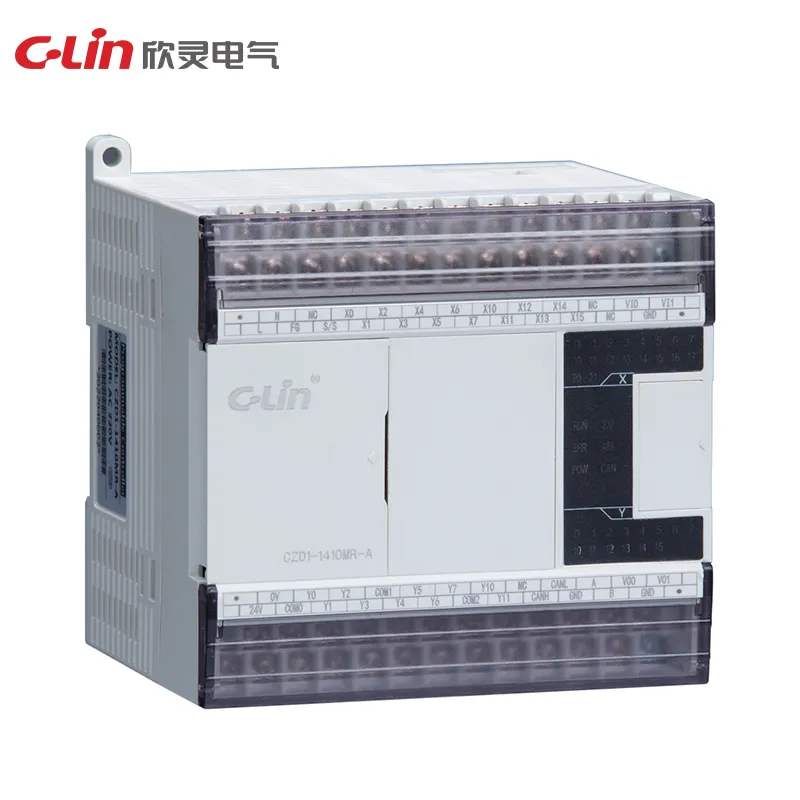

CZD1 Series PLCs are expandable controllers for machine and process-control systems that need more I/O capacity and communication flexibility. The series supports relay or transistor output, high-speed counting, multiple communication interfaces and optional function boards across 16-point to 60-point body sizes.
| Model | CZD1 |
|---|---|
| Working Power Supply | AC100-240V |
| Operation Speed | 0.04µs |
| Output Mode | Relay output, transistor output |
| Expansion Module | Up to 10 expansion modules |
| High-Speed Interface | Two high-speed counter inputs |
| Communication Interfaces | USB Type-C, RS232, RS485; selected configurations include CAN and LAN |
| Communication Protocols | Modbus RTU, Modbus TCP, free-port communication, Xinling communication protocol |
| Optional Functions | BD board, electronic cam, CAN bus, analog functions |
| Dimensions | 16-point: 71 × 100 × 88mm; 24/32-point: 109 × 100 × 88mm; 48/60-point: 177 × 100 × 88mm |
| Installation Method | Device mounting or rail mounting |
| Ambient Temperature | -20 to +50°C |
