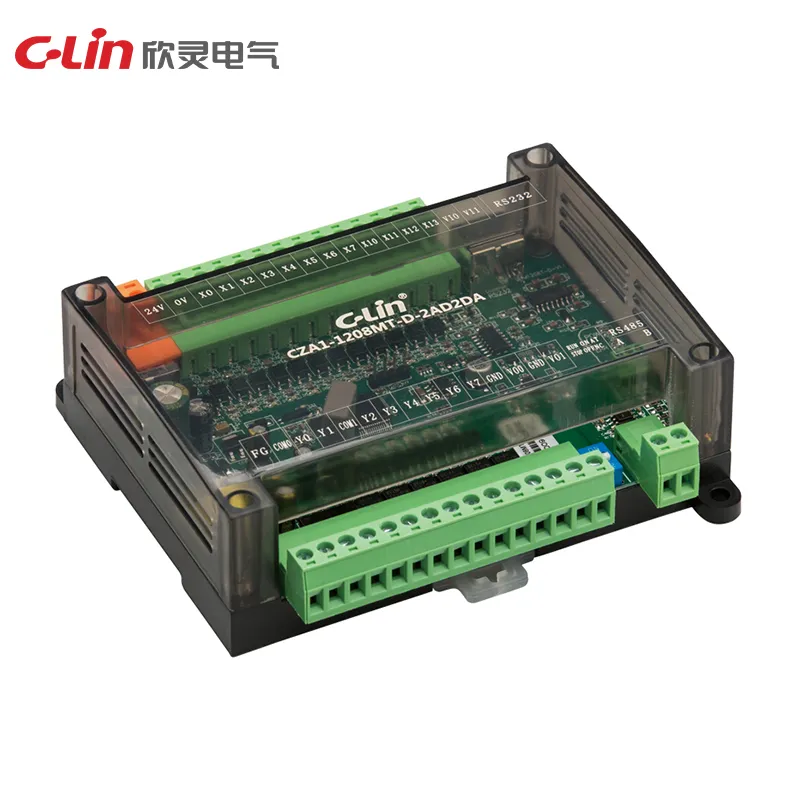

CZA1 Series PLCs are compact controllers for machine, lighting and process-control panels that need fast logic execution without external expansion. The series supports relay or transistor outputs, built-in serial communication and optional analog functions in 14-point and 22-point body sizes.
| Model | CZA1 |
|---|---|
| Working Power Supply | DC24V |
| Operation Speed | 0.05µs |
| Output Mode | Relay output, transistor output |
| Expansion Module | External expansion not supported |
| High-Speed Interface | Two high-speed pulse outputs |
| Communication Interfaces | 1 × RS232, 1 × RS485 |
| Communication Protocols | Modbus RTU, free-port communication, Xinling communication protocol |
| Optional Functions | Analog functions |
| Dimensions | 14-point: 96 × 107 × 44mm; 22-point: 126 × 120 × 44mm |
| Installation Method | Device mounting or rail mounting |
| Ambient Temperature | -20 to +50°C |
