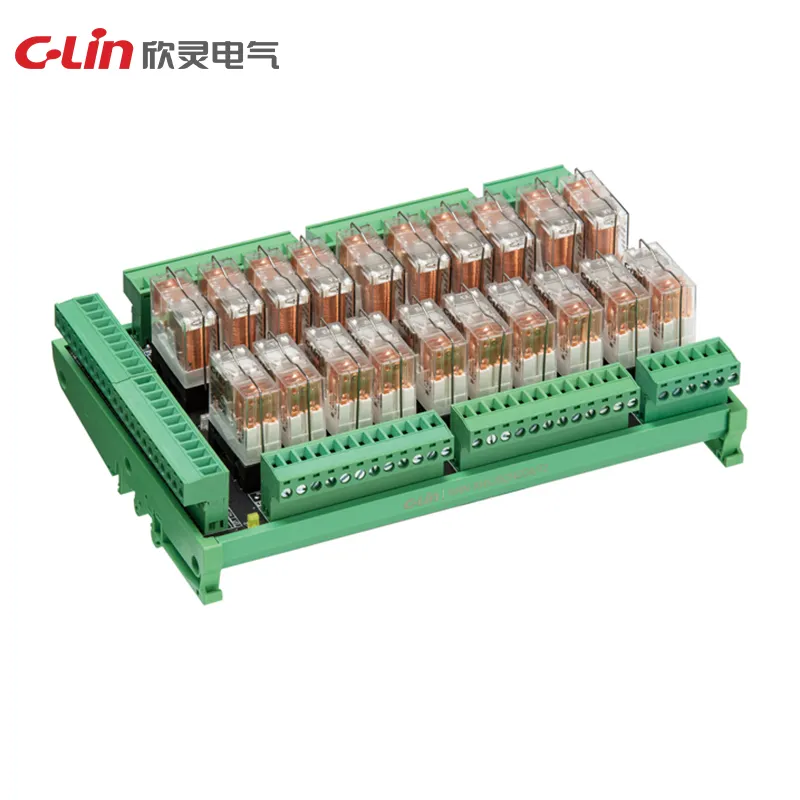

HHN-RH Series power relay modules provide relay isolation for control signals that need 1Z or 2Z contact output. The module supports common DC and AC control voltages and is suited to general load-driving and interface use in control cabinets.
| Model | HHN-RH |
|---|---|
| Drive Mode | NPN/PNP compatible |
| Rated Voltage | 12VDC, 24VDC, 220VAC |
| Single-Channel Power Consumption | DC: 0.53W or 0.93W by version; AC: 1.0VA |
| Operating Voltage | 70% of rated voltage |
| Release Voltage | 10% of rated voltage |
| Operation Time | ≤10ms to ≤15ms by version |
| Release Time | ≤10ms to ≤15ms by version |
| Contact Type | 1Z: 16A/15A 250VAC/30VDC; 2Z: 10A/8A 250VAC/30VDC |
| Electrical Life | 1 × 10^5 operations |
| Mechanical Life | 1 × 10^7 operations |
| Contact Material | Silver alloy |
| Contact Resistance | ≤100mΩ at 6VDC 1A |
| Protection Circuit Options | RC, varistor, fuse |
