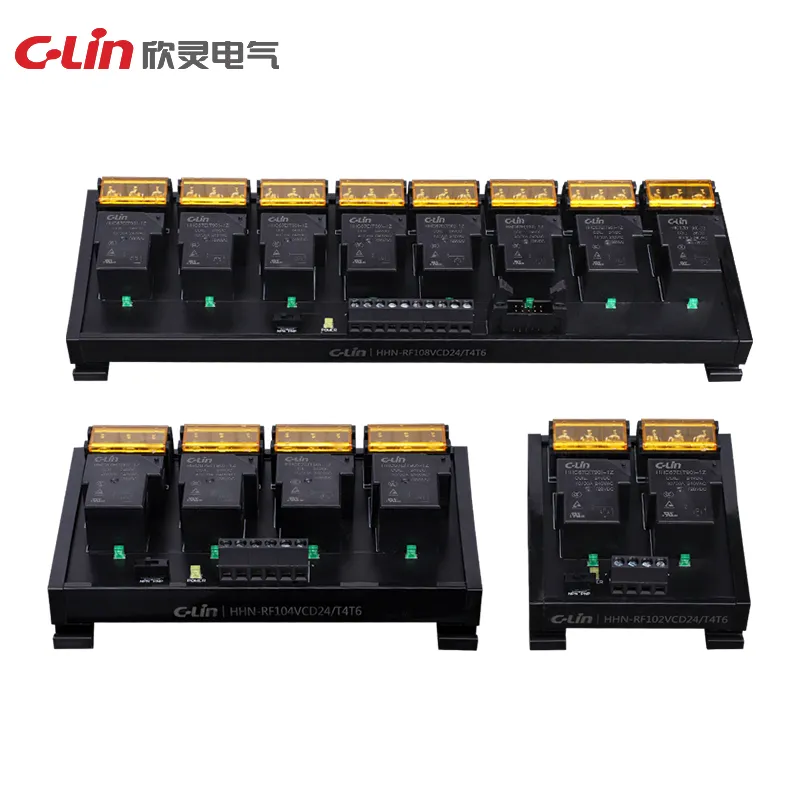

HHN-RF Series power relay modules are used where a control signal needs to drive a higher-current relay contact. The module combines NPN/PNP compatible drive input, common DC/AC rated voltage options and silver-alloy contacts for control-panel load switching.
| Model | HHN-RF |
|---|---|
| Drive Mode | NPN/PNP compatible |
| Rated Voltage | 12VDC, 24VDC, 220VAC |
| Single-Channel Power Consumption | DC: 0.93W |
| Operating Voltage | 80% of rated voltage |
| Release Voltage | 10% of rated voltage |
| Operation Time | ≤10ms |
| Release Time | ≤15ms |
| Contact Type | 30A or 40A, 250VAC/30VDC |
| Electrical Life | 1 × 10^5 operations |
| Mechanical Life | 1 × 10^7 operations |
| Contact Material | Silver alloy |
| Contact Resistance | ≤100mΩ at 6VDC 1A |
| Protection Circuit Options | RC, varistor, fuse |
