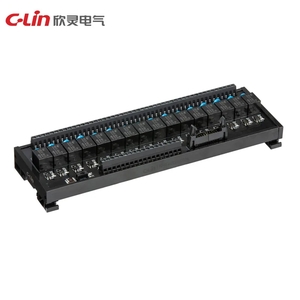

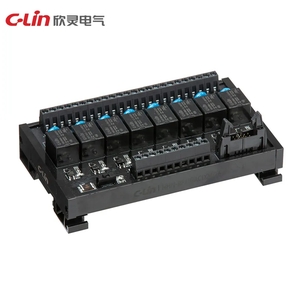

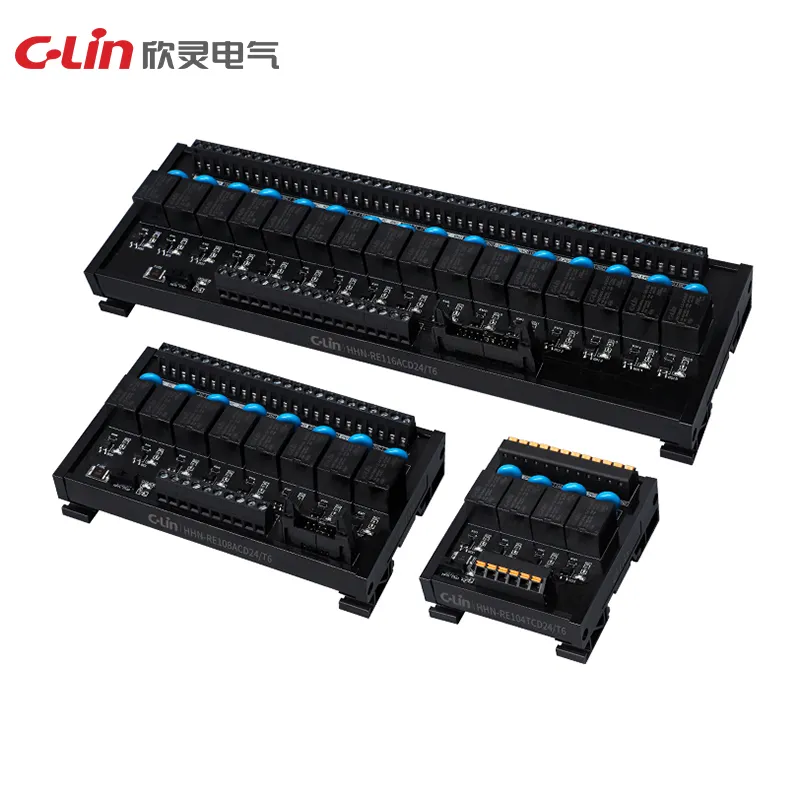

HHN-RE Series power relay modules provide a compact relay interface for control signals that need isolated contact output. The module supports common DC and AC control voltages, fast operation and optional protection circuits for panel integration.
| Model | HHN-RE |
|---|---|
| Drive Mode | NPN/PNP compatible |
| Rated Voltage | 12VDC, 24VDC, 220VAC |
| Single-Channel Power Consumption | DC: 0.36W |
| Operating Voltage | 80% of rated voltage |
| Release Voltage | 10% of rated voltage |
| Operation Time | ≤10ms |
| Release Time | ≤15ms |
| Contact Type | 1C: 10A or 15A, 250VAC/30VDC |
| Electrical Life | 1 × 10^5 operations |
| Mechanical Life | 1 × 10^7 operations |
| Contact Material | Silver alloy |
| Contact Resistance | ≤100mΩ at 6VDC 1A |
| Protection Circuit Options | RC, varistor, fuse |
