| Part Number: | PP | 22 | F | A | 1 | NO | M | B | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Series PP - Plastic piezo switch |
Switch Size 22 - 22mm |
Colors / Materials Blank - White plastic |
Operator Blank - Flat operator, height 1.30mm The operator can be customized. |
Terminals F - Flying leads |
Type of Illumination / Voltage Blank - Non-illuminated |
Ratings 1 - 200mA 24VAC/DC |
Switch Status NO - Normally open |
Switch Function M - Momentary |
LED Colors Blank - Non-illuminated |

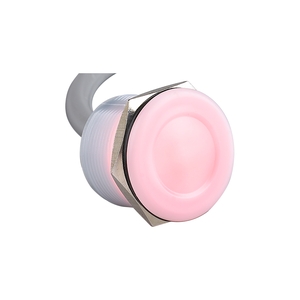

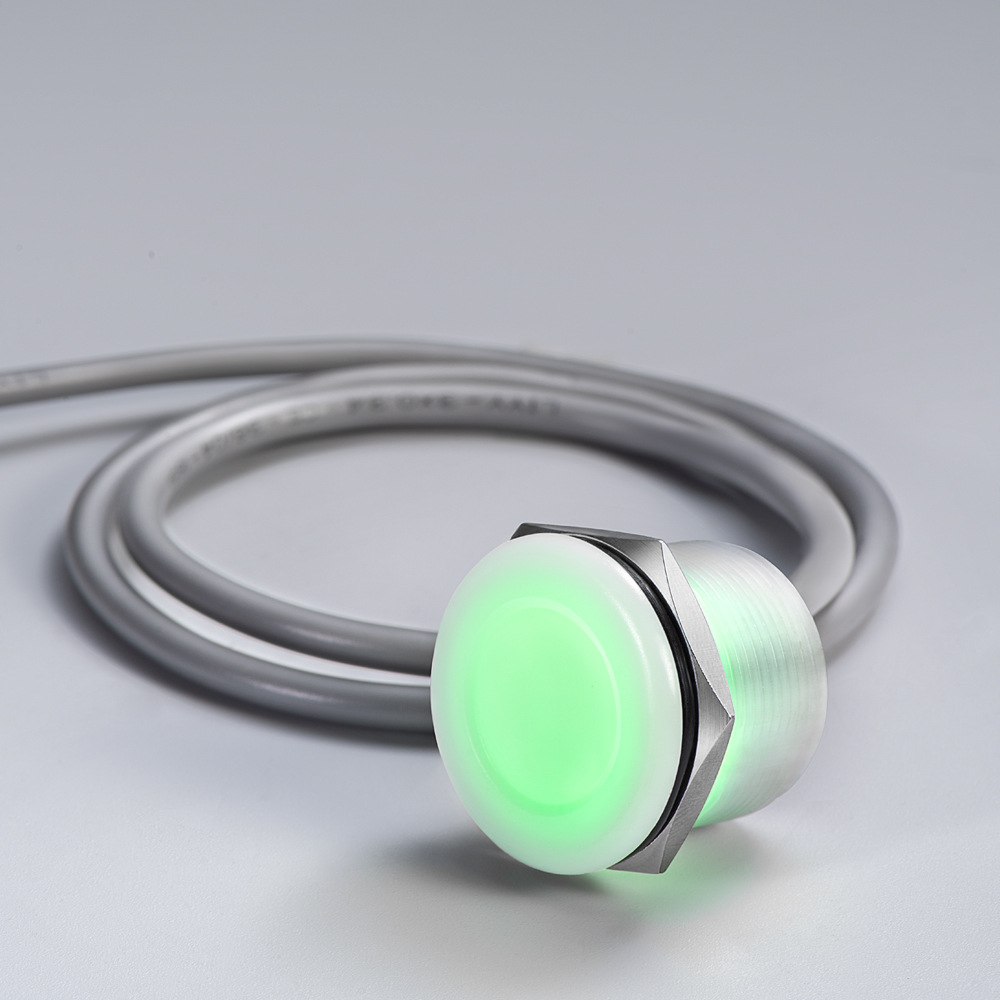

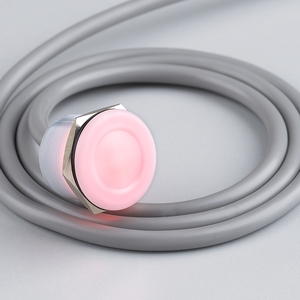

The Plastic Piezo Switch is a sealed solid-state switch with a rugged plastic actuator. It provides tamper-resistant switching, optional LED illumination, and long operating life for equipment that needs a durable, non-metal front interface.
| Operating voltage | 1-24V AC/DC |
| Switching current | 0.2A standard / 1A option |
| Actuation force | 3-5N |
| Operating temperature | -20°C to +70°C |
| LED operating voltage | 12V DC max or 24V DC max |
| Ingress protection | IP68 |
| Material | POM |
Legend: B = black, A = same color as LED. LED color is indicated by the bottom of the product.
