| Part Number: | PL | 8 | - | 02 | B |
|---|---|---|---|---|---|
| Explanation: |
Series PL - Male elbow push-in fitting; B-suffix white-body model range |
Tube Outside Diameter 4 - 4mm; thread M5, 01 or 02 |
Male Thread Size M5 - M5 metric thread |
Configuration B - White-body configuration |
PL male elbow fittings connect a pneumatic tube to a threaded port at a right angle. The illustrated blue-ring tube connection has a push-in release button, while the male threaded end includes wrench flats. Select the tube connection and port thread as separate requirements.

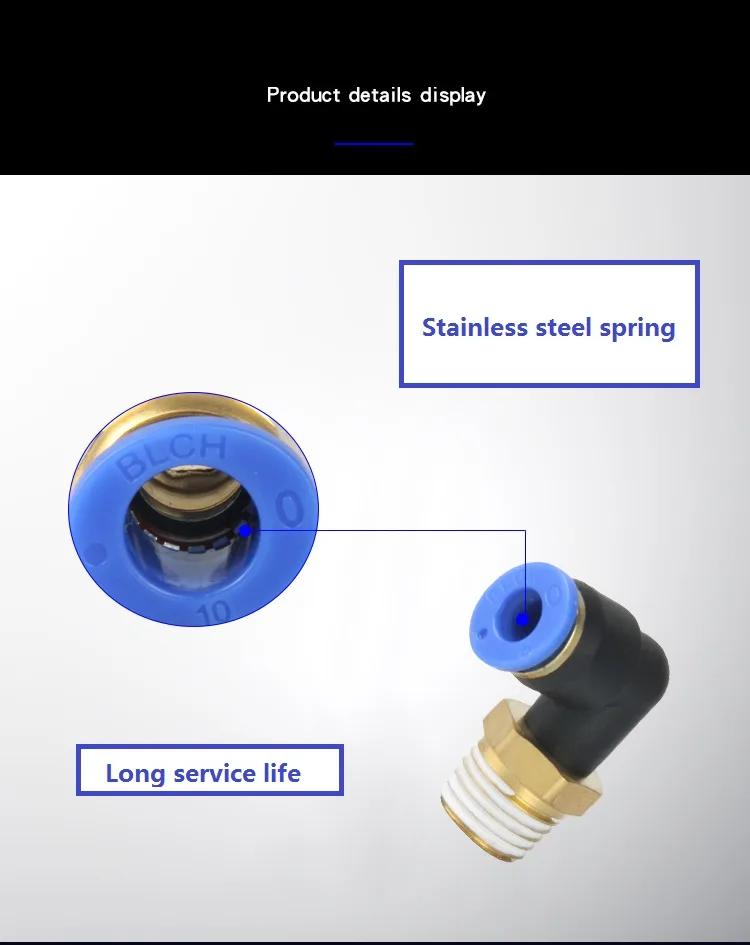

The internal stainless-steel retaining spring grips the inserted tube. A release button surrounds the tube entry for disconnection. The elbow arrangement turns the tube path through a right angle adjacent to the equipment port.
The white-body configuration uses B-suffix model designations. Select the complete code for the required tube and port connection.
| Model group | White-body models |
|---|---|
| PL4 | PL4-M5B, PL4-01B, PL4-02B |
| PL6 | PL6-M5B, PL6-01B, PL6-02B, PL6-03B, PL6-04B |
| PL8 | PL8-01B, PL8-02B, PL8-03B, PL8-04B |
| PL10 | PL10-01B, PL10-02B, PL10-03B, PL10-04B |
| PL12 | PL12-01B, PL12-02B, PL12-03B, PL12-04B |
| Model group | DN models |
|---|---|
| PL4 | PL4-M5DN, PL4-01DN, PL4-02DN |
| PL6 | PL6-M5DN, PL6-01DN, PL6-02DN, PL6-03DN, PL6-04DN |
| PL8 | PL8-01DN, PL8-02DN, PL8-03DN, PL8-041DN |
| PL10 | PL10-01DN, PL10-02DN, PL10-03DN, PL10-04DN |
| PL12 | PL12-02DN, PL12-03DN, PL12-04DN |
| PL16 | PL16-03DN, PL16-04DN |
PLL provides the male elbow layout with an extended connection stem between the threaded end and elbow body. The tube entry retains the right-angle arrangement and push-in release ring.
