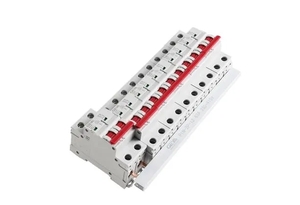

The PIN type busbar is used to distribute power across modular protective devices such as miniature circuit breakers in distribution boards. The series covers 1P, 2P and 4P pin-type versions with multiple cross-section and length options for different current and module requirements.
Common Parameters
| Connection type |
Pin type |
| Voltage range |
230-415V |
| Pin distance |
17.8mm |
| Width of pin |
4mm |
| Length of pin |
11.5mm |
| Cross section options |
8mm², 10mm², 13mm², 16mm² |
| Reference current by cross section |
8mm²: 50A; 10mm²: 63A; 13mm²: 70A; 16mm²: 80A |
1P PIN Busbar
| Description |
Article No. |
Cross Section |
Modules |
Length |
Reference Current |
| S-1L-210/8, /10, /13, /16 |
KP11208, KP11210, KP11213, KP11216 |
8-16mm² |
12 |
210mm |
50-80A |
| S-1L-1000/8, /10, /13, /16 |
KP15408, KP15410, KP15413, KP15416 |
8-16mm² |
54 |
1000mm |
50-80A |
| S-1L-1016/8, /10, /13, /16 |
KP15708, KP15710, KP15713, KP15716 |
8-16mm² |
57 |
1016mm |
50-80A |

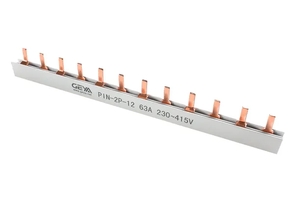

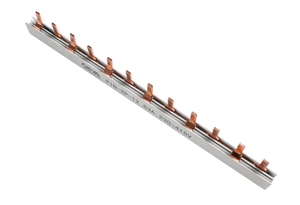

2P PIN Busbar
| Description |
Article No. |
Cross Section |
Modules |
Length |
Reference Current |
| P-2L-210/8, /10, /13, /16 |
KP21208, KP21210, KP21213, KP21216 |
8-16mm² |
12 |
210mm |
50-80A |
| P-2L-1000/8, /10, /13, /16 |
KP25408, KP25410, KP25413, KP25416 |
8-16mm² |
54 |
1000mm |
50-80A |
| P-2L-1016/8, /10, /13, /16 |
KP25608, KP25610, KP25613, KP25616 |
8-16mm² |
56 |
1016mm |
50-80A |

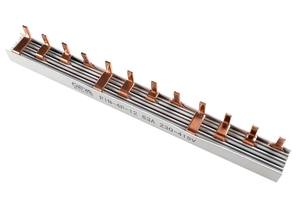

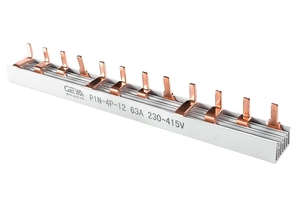

4P PIN Busbar
| Description |
Article No. |
Cross Section |
Modules |
Length |
Reference Current |
| P-4L-210/8, /10, /13, /16 |
KP41208, KP41210, KP41213, KP41216 |
8-16mm² |
12 |
210mm |
50-80A |
| P-4L-1016/8, /10, /13, /16 |
KP45608, KP45610, KP45613, KP45616 |
8-16mm² |
56 |
1016mm |
50-80A |
