The E3Z-BG Series is a diffuse reflective photoelectric sensor range for detecting objects directly from reflected light. The series provides 100mm and 300mm detection-distance versions with NPN or PNP output options for DC control circuits.
Common Parameters
| Detection method | Diffuse reflective photoelectric detection |
|---|
| Standard detection object | 10×10cm white non-glossy paper |
|---|
| Detectable objects | Metal, plastic, transparent glass, wood and paper objects |
|---|
| Supply voltage | DC12-24V |
|---|
| Load current | ≤100mA |
|---|
| Current consumption | NPN ≤25mA; PNP ≤35mA |
|---|
| Residual voltage | Below 1V at load current under 10mA; below 2V at 10-100mA |
|---|
| Indicators | Green power indicator and orange action indicator |
|---|
| Protection circuit | Power reverse connection, load short circuit and output reverse connection protection |
|---|
| Ambient illuminance | Incandescent light under 3000Lx; sunlight under 10000Lx |
|---|
| Operating temperature | -25°C to 55°C, no icing or condensation |
|---|
| Storage temperature | -40°C to 70°C, no icing or condensation |
|---|
| Humidity | 35-95%RH, no condensation |
|---|
| Sensing surface material | PC |
|---|

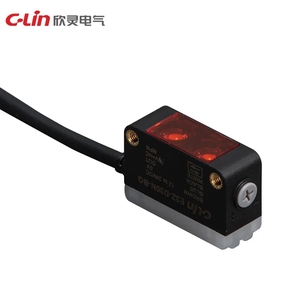

E3Z-D30N-BG / E3Z-D30P-BG
| Detection distance | 300mm |
|---|
| Output type | E3Z-D30N-BG: NPN; E3Z-D30P-BG: PNP |
|---|

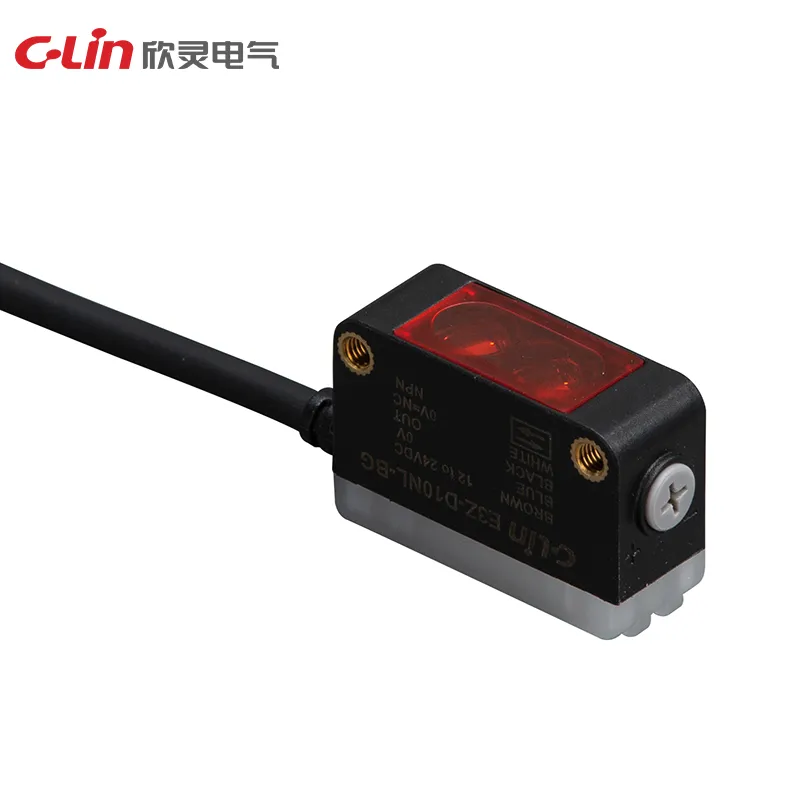

E3Z-D10N-BG / E3Z-D10P-BG
| Detection distance | 100mm |
|---|
| Output type | E3Z-D10N-BG: NPN; E3Z-D10P-BG: PNP |
|---|
