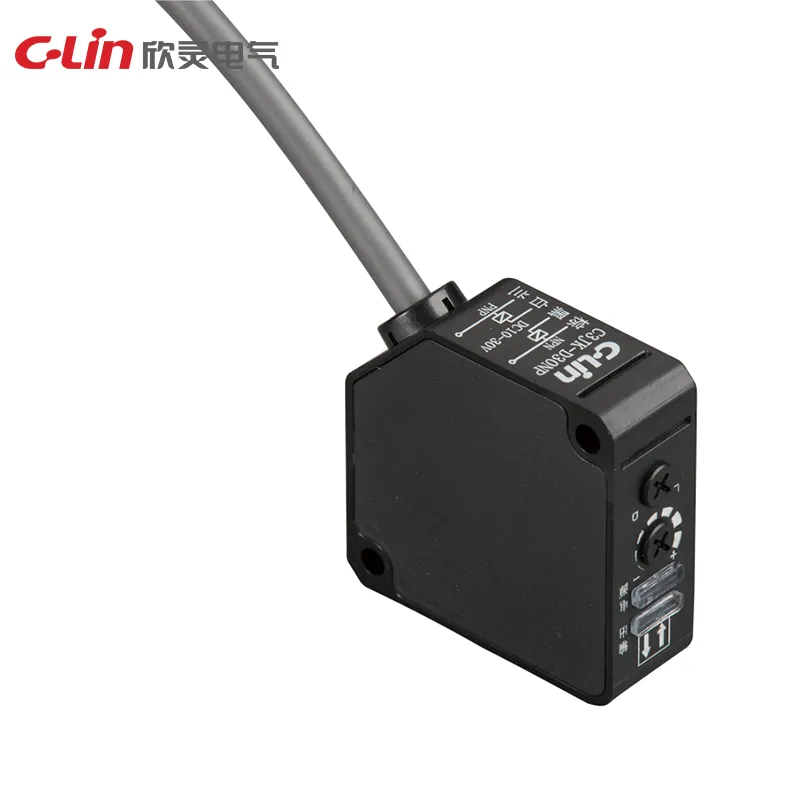

The C3JK Series is a photoelectric sensor range for general object detection in machinery and conveyor systems. It offers DC transistor-output versions and AC/DC relay-output versions, with detection methods covering diffuse reflective, retroreflective and through-beam sensing.
Common Parameters
| Working power | DC10-30V for DC NPN+PNP output type; AC/DC24-240V for relay-output universal type |
|---|
| Control output | DC NPN+PNP load current ≤150mA; relay output contact 3A resistive |
|---|
| Sensitivity adjustment | Potentiometer adjustment |
|---|
| Detectable objects | Reflecting objects for diffuse / reflective types; non-transparent objects for through-beam type |
|---|
C3JK-D30
| Detection method | Diffuse reflective |
|---|
| Detection distance | 30cm |
|---|
| Model options | C3JK-D30NP for DC output; C3JK-D30M for relay output |
|---|
| Standard test object | 10×10cm white non-glossy paper |
|---|
C3JK-D100
| Detection method | Diffuse reflective |
|---|
| Detection distance | 100cm |
|---|
| Model options | C3JK-D100NP for DC output; C3JK-D100M for relay output |
|---|
| Standard test object | 10×10cm white non-glossy paper |
|---|
C3JK-R2
| Detection method | Retroreflective |
|---|
| Detection distance | 2m |
|---|
| Model options | C3JK-R2NP for DC output; C3JK-R2M for relay output |
|---|
| Standard test object | Reflector plate TD-08 |
|---|
C3JK-T20
| Detection method | Through-beam |
|---|
| Detection distance | 20m |
|---|
| Model options | C3JK-T20NP for DC output; C3JK-T20M for relay output |
|---|
| Detectable objects | Non-transparent objects |
|---|
