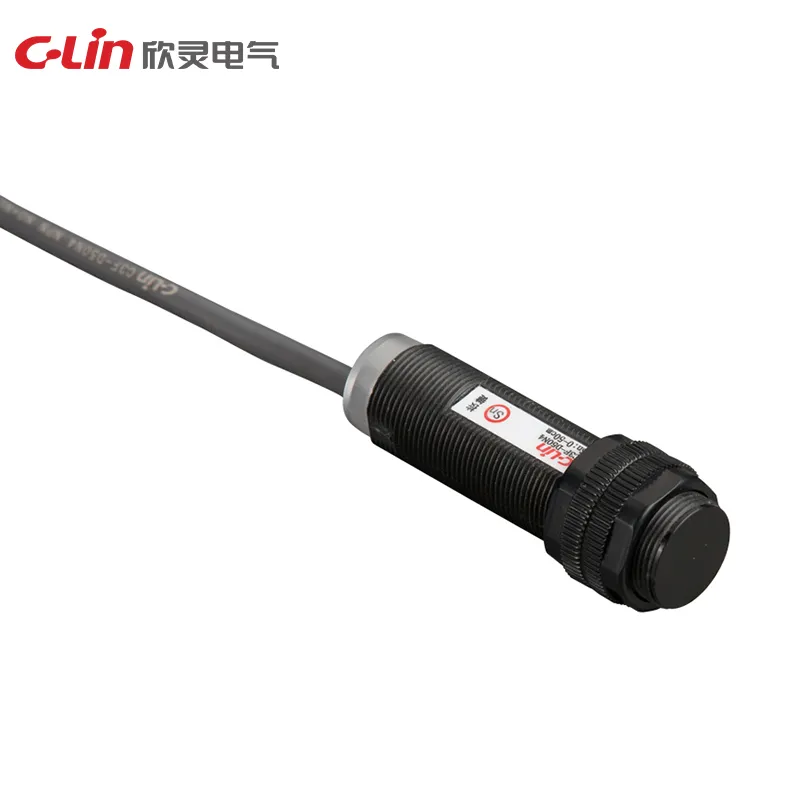

The C3F Series is a photoelectric sensor range for object detection across short and long distances. It includes diffuse reflective, retroreflective, through-beam and visible-light through-beam versions, allowing the same sensor family to cover close object sensing and longer-distance presence detection.
Common Parameters
| Output options | NPN NO+NC and PNP NO+NC versions |
|---|
| Sensitivity adjustment | One-touch button setting on adjustable versions; fixed setting where inaccessible |
|---|
| Detectable objects | Reflecting objects for diffuse / reflective types; non-transparent objects for through-beam types |
|---|
C3F-D50
| Detection method | Diffuse reflective |
|---|
| Detection distance | 50cm |
|---|
| Model options | C3F-D50N4, C3F-D50P4 |
|---|
| Standard test object | 10×10cm white non-glossy paper |
|---|
C3F-D100
| Detection method | Diffuse reflective |
|---|
| Detection distance | 100cm |
|---|
| Model options | C3F-D100N4, C3F-D100P4 |
|---|
| Standard test object | 10×10cm white non-glossy paper |
|---|
C3F-R2
| Detection method | Retroreflective |
|---|
| Detection distance | 2m |
|---|
| Model options | C3F-R2N4, C3F-R2P4 |
|---|
| Standard test object | Reflector plate TD-08 |
|---|
C3F-T10 / C3F-T20
| Detection method | Through-beam |
|---|
| Detection distance | ≤10m for C3F-T10; ≤20m for C3F-T20 |
|---|
| Model options | C3F-T10N4/P4 and C3F-T20N4/P4 |
|---|
| Detectable objects | Non-transparent objects |
|---|
C3F-TH10
| Detection method | Visible-light through-beam detection |
|---|
| Detection distance | ≤10m |
|---|
| Model options | C3F-TH10N4, C3F-TH10P4 |
|---|
| Standard test object | 5×5cm white non-glossy paper |
|---|
