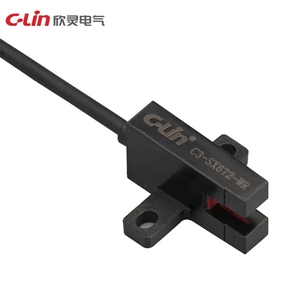

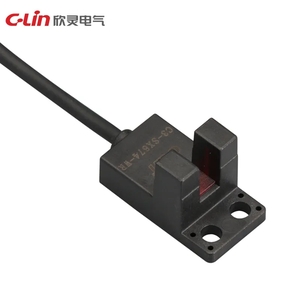

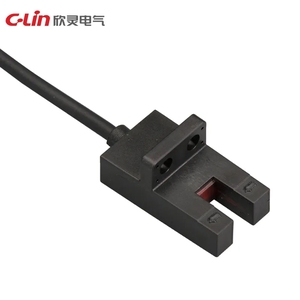

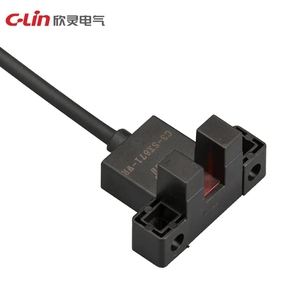

The C3-SX67 Series is a slot-type photoelectric sensor for detecting small parts passing through a fixed 5mm sensing gap. It suits counting, presence checking and position detection where a compact fork-style sensor is easier to align than separate emitter and receiver units.
| Model / specification | C3-SX67 |
|---|---|
| Sensor form | Slot-type photoelectric sensor |
| Detection distance | 5mm |
| Working power | DC5-24V |

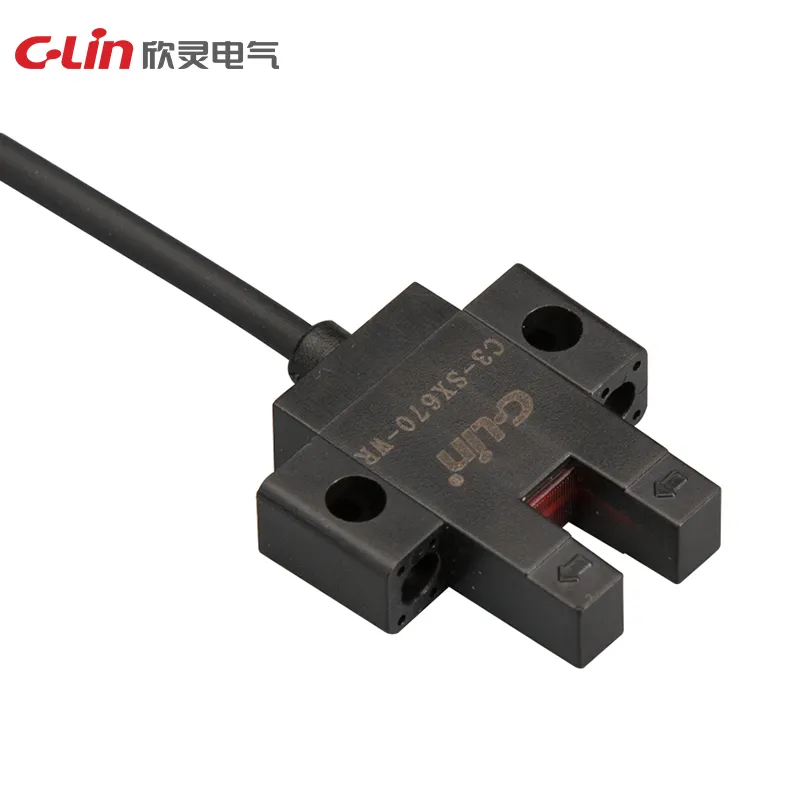

| Output options | NPN NO/NC: C3-SX670-WR; PNP NO/NC: C3-SX670P-WR |
| Output wiring note | White wire connected to brown wire, black wire output normally closed |
| Operating current | Load current ≤100mA; static current ≤25mA |
| Residual voltage | ≤1V at 50mA load current |
| Protection circuit | Polarity and overload protection |
| Indicator | Red action indicator |
| Operating temperature | -25°C to 70°C, no icing or condensation |
| Storage temperature | -30°C to 80°C, no icing or condensation |
| Protection rating | IP67 |
