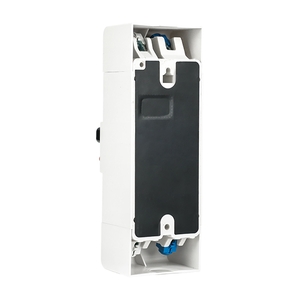

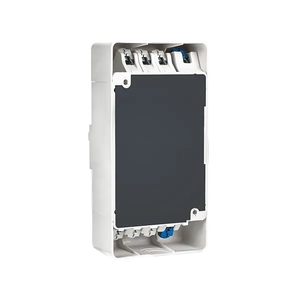

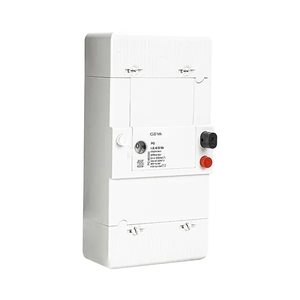

PG Leakage Circuit Breaker


Description

The PG leakage circuit breaker series combines circuit breaking with integrated residual current protection for residential, commercial, and industrial electrical installations. The series includes 2P and 4P versions for single-phase plus neutral and three-phase plus neutral systems.

Model Versions

VersionPG 2PPG 4P
Poles1P+N3P+N
Rated current5A, 10A, 15A, 20A, 25A, 30A, 45A, 60A10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A
Rated operational voltage250V AC, 50/60Hz440V AC, 50/60Hz
Rated service breaking capacity2kA at 250V AC, 50/60Hz2kA at 440V AC, 50/60Hz
Dimensions210 x 70 x 70 mm210 x 105 x 70 mm
Product weight0.7 kg1.8 kg

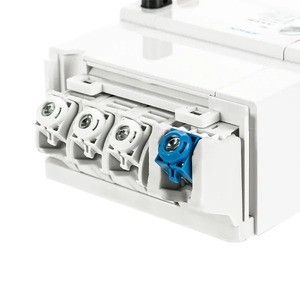

Connection modeCage type terminal, 35 mm² cable sectionTunnel type terminal, 35 mm² cable section

Common Features

  • Integrated differential protection for leakage current protection.
  • Selective timeout type.
  • Left-side neutral pole position.
  • DIN rail installation with mounting bracket and mounting plate options.
  • Compliant with IEC 60947-2.
  • RoHS and WEEE related environmental information is included in the catalog.

Common Technical Parameters

Differential sensitivity300mA / 500mA
Residual current tripping technologyVoltage dependent
Differential protectionIntegrated
Network frequency50/60Hz
Operating altitude2000 m
Operating temperature-10°C to +65°C
Guarantee18 months

Applications

  • Residential and commercial leakage protection circuits.
  • Single-phase 1P+N branch circuits.
  • Three-phase 3P+N distribution circuits.
  • Electrical installations requiring residual current protection with circuit breaking function.
