PEG Reducing Tee Push-In Tube Fittings

PEG white reducing tee fitting
PEG black reducing tee fitting

Series Part Number

Part Number: PEG 8 - 6 B
Explanation:

Series

PEG - Reducing tee push-in tube fitting; this ordering example uses the metric tube-size range.

Main Tube OD

6 - 6mm; branch tube OD 4mm
8 - 8mm; branch tube OD 4mm or 6mm
10 - 10mm; branch tube OD 6mm or 8mm
12 - 12mm; branch tube OD 8mm or 10mm
16 - 16mm; branch tube OD 12mm

Branch Tube OD

4 - 4mm; main tube OD 6mm or 8mm
6 - 6mm; main tube OD 8mm or 10mm
8 - 8mm; main tube OD 10mm or 12mm
10 - 10mm; main tube OD 12mm
12 - 12mm; main tube OD 16mm

Body Variant

Blank - Blue-ring variant; omit the suffix
B - White-body variant; append B after the branch tube-size code

Description

PEG reducing tees connect three pneumatic tube runs in a T layout with two connection diameters. Push-in entries support tube connection, and two body holes provide mounting points.

Metric and white-body models

Blue-ring modelWhite-body modelTube OD pair
PEG6-4PEG6-4B6mm and 4mm
PEG8-4PEG8-4B8mm and 4mm
PEG8-6PEG8-6B8mm and 6mm
PEG10-6PEG10-6B10mm and 6mm
PEG10-8PEG10-8B10mm and 8mm
PEG12-8PEG12-8B12mm and 8mm
PEG12-10PEG12-10B12mm and 10mm
PEG16-12PEG16-12B16mm and 12mm

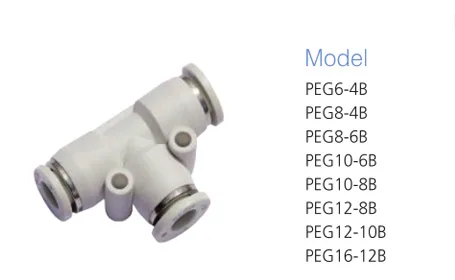

White PEG reducing tee and eight B-suffix model options
White-body PEG tee and B-suffix model list.

Inch-size blue-ring options

These inch tube sizes are separate configurations, not interchangeable substitutes for metric tubing.

Larger tube ODSmaller tube OD options
1/4in5/32in
5/16in5/32in, 1/4in
3/8in1/4in, 5/16in
1/2in5/16in, 3/8in
PEG reducing tee outline and metric and inch size matrix
Blue-ring PEG connection arrangement, mounting-hole locations and size matrix.
