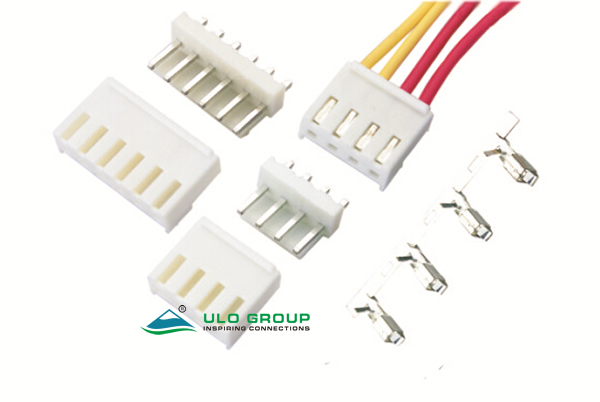

ULO-PCB461 is a 3.96mm-pitch VH wire-to-board family with 2 to 13 contacts. Select female housings, female crimp terminals and male PCB headers as separate components. Header orientations are vertical and right angle.
| Component | Configuration |
|---|---|
| Female housing | 2–13 contacts; white; latch profile shown |
| Female crimp terminal | 22–18AWG; 10.6mm overall length |
| Male vertical header | 2–13 contacts; 14.6mm overall side-profile reference |
| Male right-angle header | 2–13 contacts; 14.9mm overall side-profile reference |
PCB461 identifies the family. Specify housing count, terminal quantities and header orientation separately. Cable length and complete assembly quantities are unspecified.
| Characteristic | PCB461 |
|---|---|
| Rated current | 1A |
| Rated voltage | 250V |
| Contact impedance | ≤30mΩ |
| Insulation impedance | ≥1000MΩ |
| Dielectric withstand test | 500VAC for 1 minute |
| Operating temperature | -25°C to +85°C |
| Storage temperature | -25°C to +85°C |
| Thickness reference | 1.6mm |
| Insulator | Nylon 66, material group I |
| Material flammability grade | UL94V-0 |
| Contact material | Copper alloy |
| Component | Conductor area | Wire gauge | Wire outside diameter |
|---|---|---|---|
| Female terminal | 0.33–0.83mm² | 22–18AWG | 1.7–3.0mm |
The terminal has a 10.6mm overall length, a 4mm forward reference and a 3mm × 3.8mm front-profile reference. Crimp tooling and stripping settings are unspecified.
| Field | Code and meaning |
|---|---|
| Contact count | 2–13 |
| Connector type | M: male; F: female |
| Mounting or termination | C: crimp; R: right angle; V: vertical through-hole |
| Housing colour | W: white |
| Contact plating | 6: tin; 8: full gold flash |

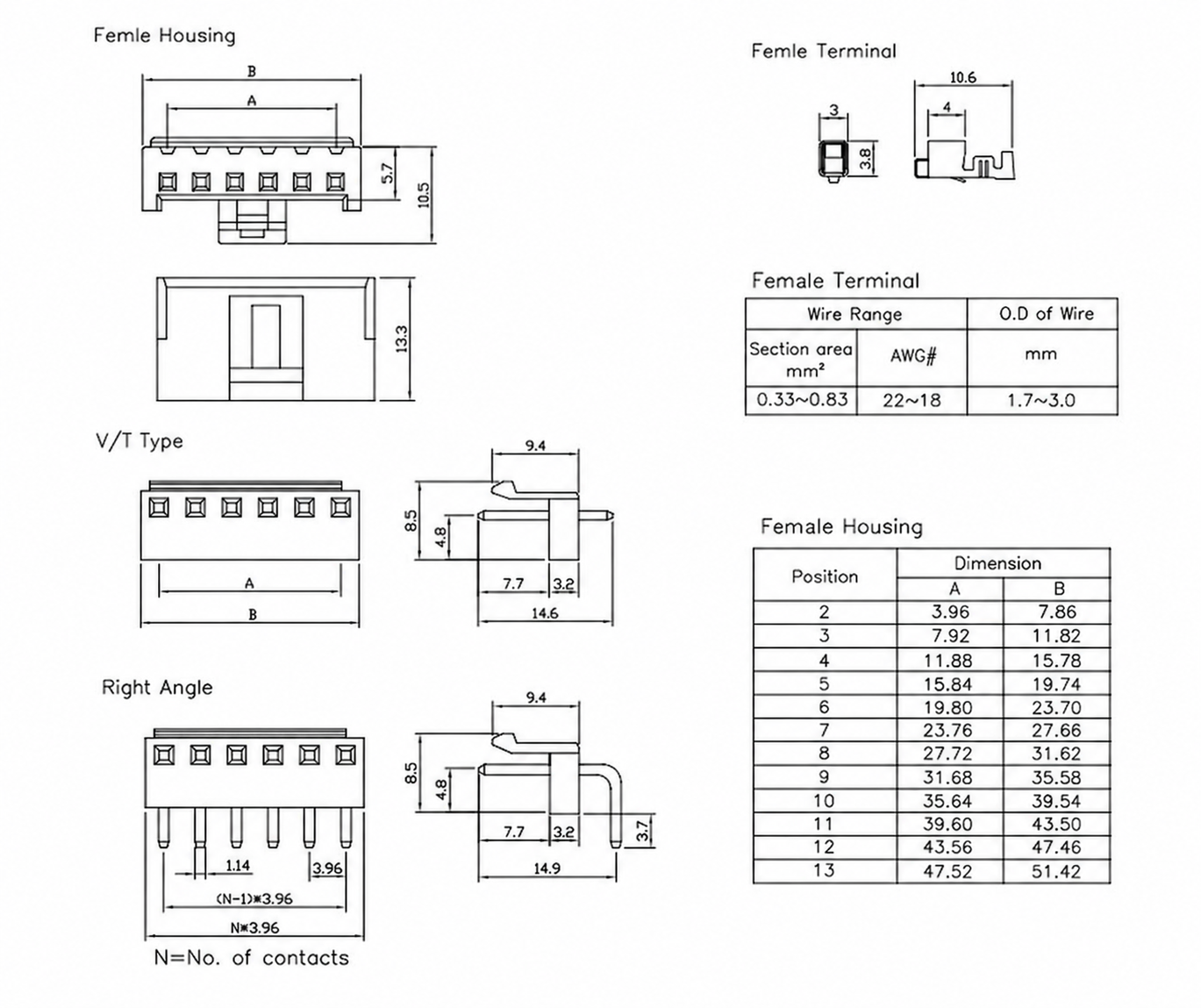

A is the contact span and B is the female housing row length. All table dimensions are in millimetres.
| Positions | A | B |
|---|---|---|
| 2 | 3.96 | 7.86 |
| 3 | 7.92 | 11.82 |
| 4 | 11.88 | 15.78 |
| 5 | 15.84 | 19.74 |
| 6 | 19.80 | 23.70 |
| 7 | 23.76 | 27.66 |
| 8 | 27.72 | 31.62 |
| 9 | 31.68 | 35.58 |
| 10 | 35.64 | 39.54 |
| 11 | 39.60 | 43.50 |
| 12 | 43.56 | 47.46 |
| 13 | 47.52 | 51.42 |
The female housing shows 5.7mm body and 10.5mm latch-inclusive front-profile references, plus a 13.3mm side length. For N contacts, the male right-angle header drawing gives a contact span of (N − 1) × 3.96mm and a row length of N × 3.96mm. Its contact width is 1.14mm.
Both male side profiles show 9.4mm, 8.5mm, 4.8mm, 7.7mm and 3.2mm references. The vertical profile has a 14.6mm overall reference; the right-angle profile has a 14.9mm overall reference and a 3.7mm bent-tail reference. Check the relevant orientation drawing for clearance.
