ULO-PCB455 provides a female housing and separate crimp terminals at 2.0mm pitch. The housing range is 2 to 15 positions. The terminal profile is shown mounted through a PCB; select the housing, terminals and wire for this arrangement.
| Component | Selection and supply scope |
|---|---|
| Female housing | 2–15 positions; 2.0mm pitch; white or transparent |
| Female crimp terminal | 30–24AWG wire; tin or full gold-flash contact plating |
PCB455 is the family designation. Individual housing and terminal suffix part numbers are unspecified. Order the required component quantities separately; a complete wired assembly is not implied.
| Characteristic | PCB455 |
|---|---|
| Rated current | 1A |
| Rated voltage | 250V |
| Contact impedance | ≤30mΩ |
| Insulation impedance | ≥1000MΩ |
| Dielectric withstand test | 500VAC for 1 minute |
| Operating temperature | +25°C to +85°C |
| Storage temperature | -25°C to +85°C |
| Board thickness reference | 1.6mm |
| Insulator | Nylon 66, material group I |
| Material flammability grade | UL94V-0 |
| Contact material | Copper alloy |

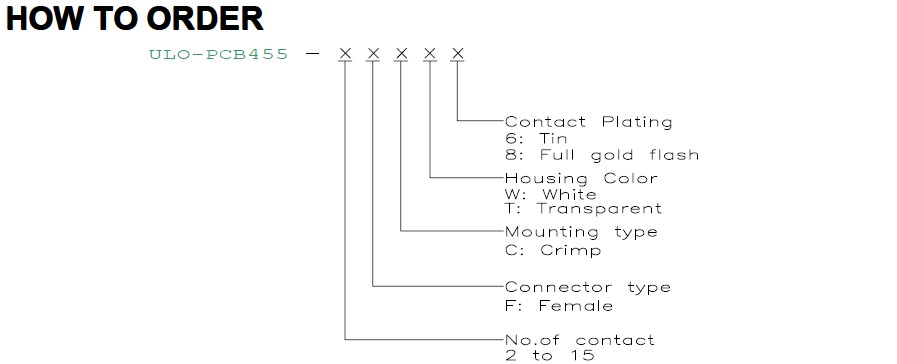

| Field | Code and meaning |
|---|---|
| Contact count | 2–15 |
| Connector type | F: female |
| Termination | C: crimp |
| Housing colour | W: white; T: transparent |
| Contact plating | 6: tin; 8: full gold flash |
| Conductor area | Wire gauge | Wire outside diameter |
|---|---|---|
| 0.05–0.22mm² | 30–24AWG | 0.9–1.5mm |

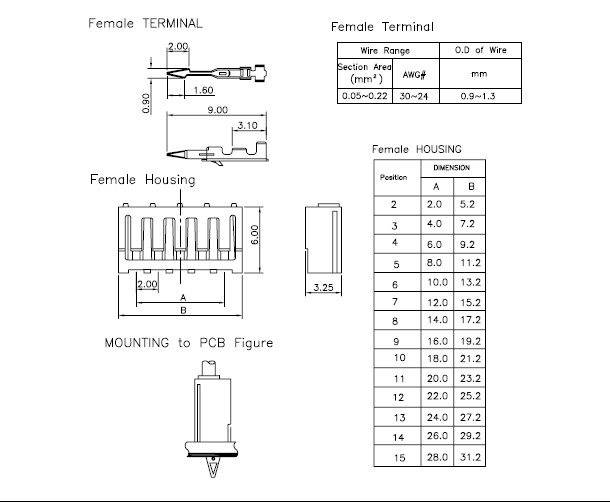

The terminal is 9.00mm long. Its drawing shows a 3.10mm crimp-region reference, a 2.00mm tip-region reference, a 1.60mm internal reference and a 0.90mm profile dimension. Match both conductor size and insulation diameter to the terminal.
A is the first-to-last contact span and B is the housing length. The housing height is 6.00mm and its side width is 3.25mm. All A and B values below are in millimetres.
| Positions | A | B |
|---|---|---|
| 2 | 2.0 | 5.2 |
| 3 | 4.0 | 7.2 |
| 4 | 6.0 | 9.2 |
| 5 | 8.0 | 11.2 |
| 6 | 10.0 | 13.2 |
| 7 | 12.0 | 15.2 |
| 8 | 14.0 | 17.2 |
| 9 | 16.0 | 19.2 |
| 10 | 18.0 | 21.2 |
| 11 | 20.0 | 23.2 |
| 12 | 22.0 | 25.2 |
| 13 | 24.0 | 27.2 |
| 14 | 26.0 | 29.2 |
| 15 | 28.0 | 31.2 |
The PCB section shows the mounting arrangement. A complete recommended hole pattern and hole-size limits are unspecified.
