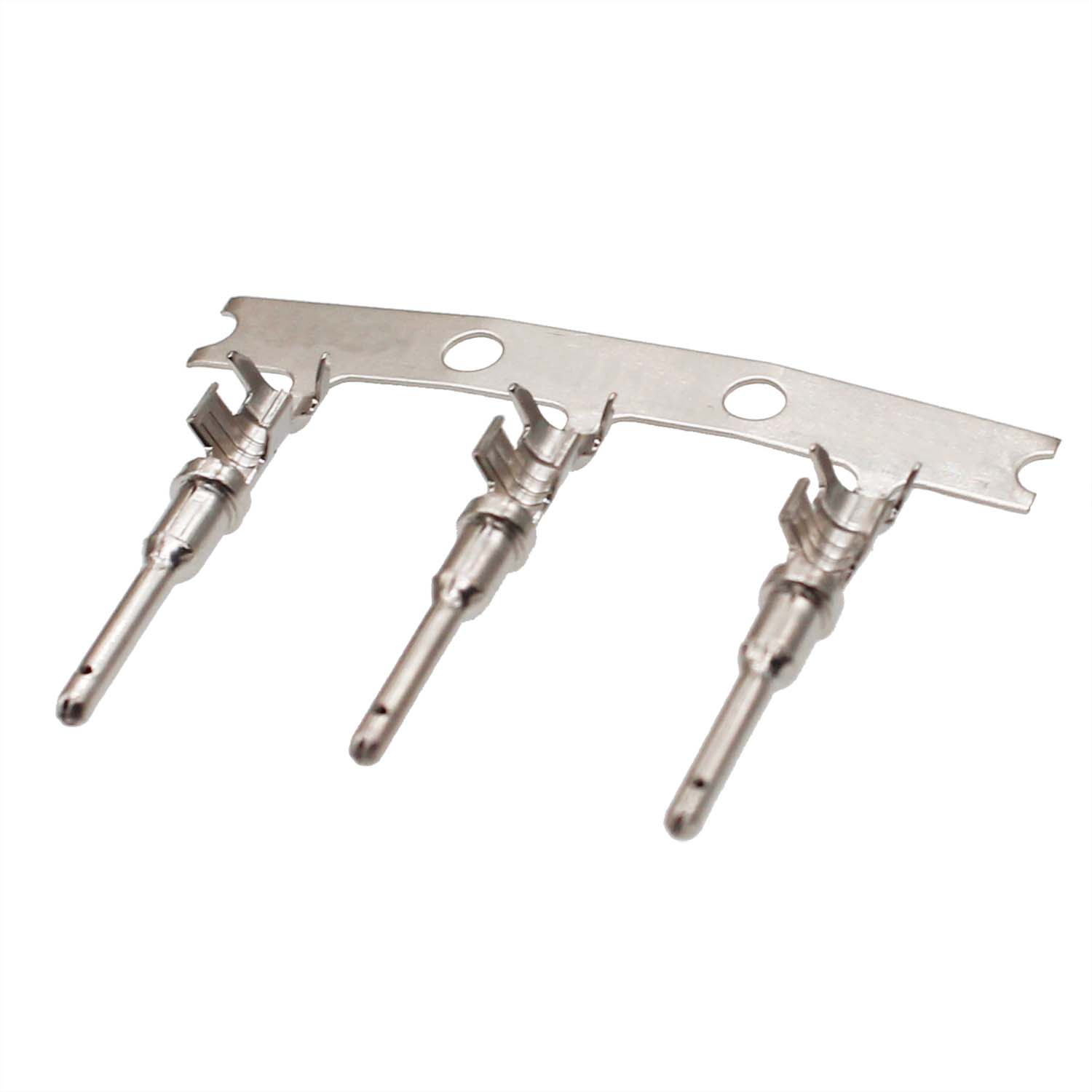

P0028 1.5 mm automotive pin terminals are phosphor bronze crimp contacts for sealed or unsealed harness interfaces. The family provides a common pin interface with terminal references selected by wire range and finish requirement.
Select the T11/TP form for 20–16 AWG conductors or the T12/T13 forms for 18–14 AWG conductors. Across the family, the overall applicable wire range is 20–14 AWG. Match the terminal reference to the required wire size, seal arrangement and mating interface.
| Connector system | Automotive connector |
|---|---|
| Product role | Crimp pin terminal |
| Pin interface | 1.5 mm |
| Contact material | Phosphor Bronze |
| Wire range | 20–14 AWG overall; 20–16 AWG for T11/TP and 18–14 AWG for T12/T13 |
| Contact finish | Nickel plating, matte tin plating, or bright-tin/partial-gold plating options by terminal reference |
| Maximum current | 13 A |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Packaging | Reel |
Confirm the terminal reference, crimp-barrel range and surface finish before release. Use the applicable terminal drawing to verify the contact geometry and the selected harness interface.
