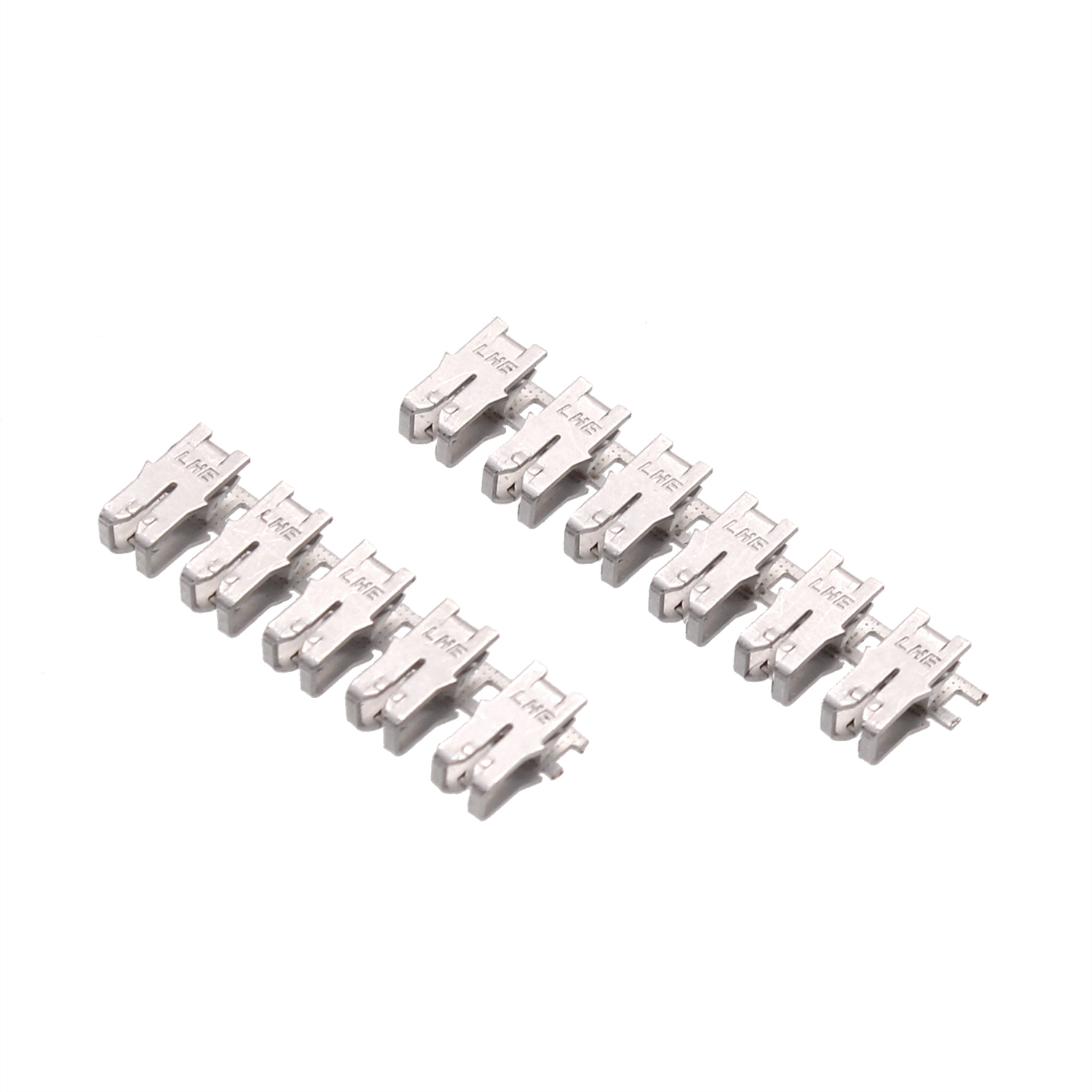

P0024 and P0026 are poke-in terminals for magnet-wire and lead-wire connections. Both models use tin-plated brass contacts and support 20–18 AWG lead wire; P0024 additionally supports 21–19 AWG aluminum magnet wire.
Select P0024 when the application includes the specified aluminum magnet-wire range. Confirm the selected model against the conductor construction and final assembly requirement.
| Product role | Poke-in magnet wire terminal |
|---|---|
| Lead wire range | 20–18 AWG |
| Aluminum magnet wire | 21–19 AWG for P0024 |
| Contact material and finish | Brass, tin plating |
| Operating temperature | -25 °C to 105 °C |
| Packaging | Reel |
| UL file | E364711 |
