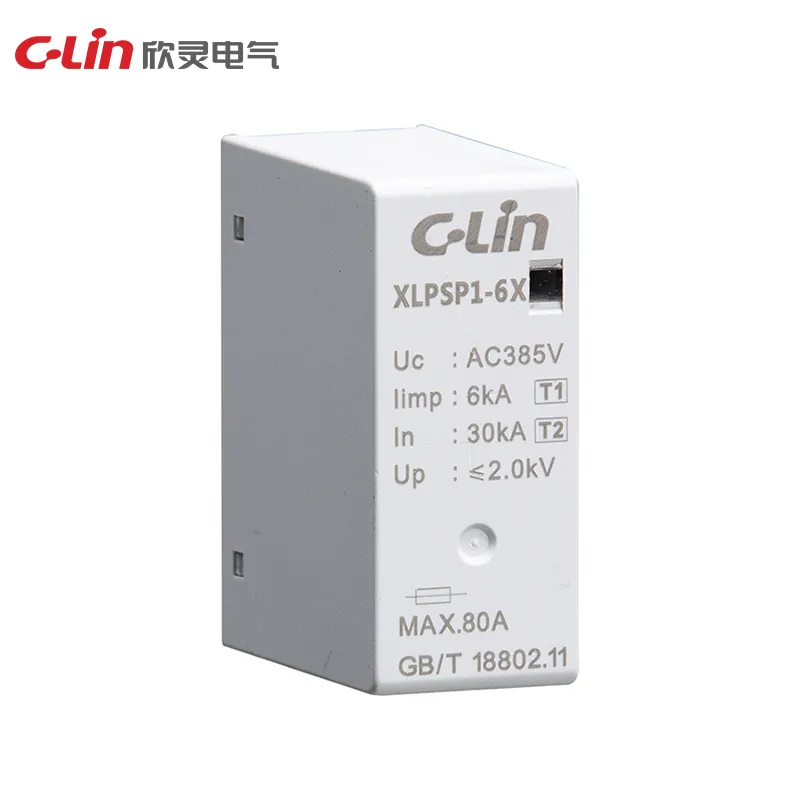

XLPSP Series onboard surge protective devices are PCB-mounted modules for surge suppression in equipment and control assemblies. The series covers type I and type II protection selections with different discharge current, impulse current, operating voltage and protection level values.
| Model | XLPSP |
|---|---|
| Rated Operating Voltage Un | 230V/400V |
| Nominal Discharge Current In (8/20µs) | 30kA or 10kA by protection selection |
| Impulse Current Iimp (10/350µs) | 6kA or 20kA by protection selection |
| Maximum Continuous Operating Voltage Uc | 275V, 385V; 385V, 510V, 680V, DC500V, DC670V, DC900V by version |
| Voltage Protection Level Up | ≤2.0kV; ≤1.5kV to ≤2.6kV by version |
| Test Classification | Type I, Type II |
| Dimensions | 42.5 × 18 × 33.5mm or 35 × 14 × 26.5mm |
| Response Time | ≤25ns for listed fast-response version |
| Leakage Current | <20µA at 75% Uc for listed version |
| Installation | PCB mounting |
