Nylon waterproof cable glands are used to secure, seal and protect cables where they enter electrical enclosures, control cabinets and distribution boxes. The series includes Metric thread and PG thread specifications, with nylon PA66 body parts and nitrile rubber sealing parts for cable clamping and environmental protection.
Product Features
- Also known as stuffing glands, compression glands, conduit glands or cord grips.
- Available with Metric and PG thread specifications.
- Main nylon parts are made of UL-approved nylon PA66.
- Sealing parts are made of nitrile rubber.
- Used for cable fixing, sealing, dust protection, water resistance and strain relief in electrical enclosures.
Metric Thread Specifications
| Thread Specification | Cable Range | Thread Diameter | Thread Length | Wrench Diameter A/CF |
|---|
| M20×1.5 | 7-12mm | 20mm | 10mm | 27/24 |

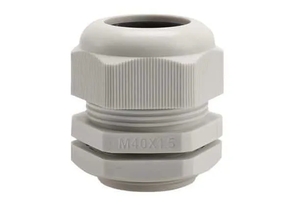

| M40×1.5 | 22-32mm | 40mm | 16mm | 52/52 |
PG Thread Specifications
| Thread Specification | Cable Range | Thread Diameter | Thread Length | Wrench Diameter A/CF |
|---|
| PG7 | 3-6.5mm | 12.5mm | 8mm | 17/16 |
| PG9 | 4-8mm | 15.2mm | 9mm | 22/19 |

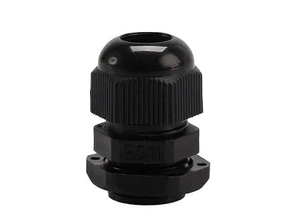

| PG11 | 6-10mm | 18.6mm | 9mm | 24/22 |

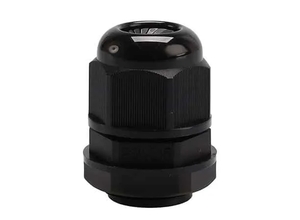

| PG13.5 | 7-12mm | 20.4mm | 10mm | 27/24 |

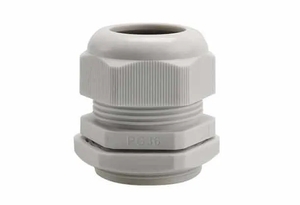

| PG36 | 25-33mm | 47mm | 16mm | 56/62 |

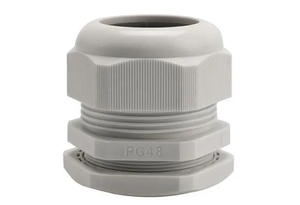

| PG48 | 37-44mm | 59mm | 18mm | 67/70 |

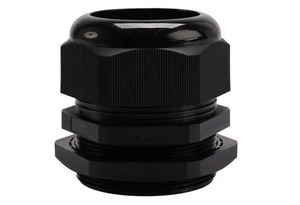

| PG63 | 42-53mm | 70mm | 26mm | 82/75 |
