NR200-02 is a compact air regulator with a 1/4″ connection and a maximum flow rating of 550L/min (ANR). The top knob adjusts pressure within a 0.15-0.85MPa working range. Mounting-bracket and pressure-gauge options support different installation requirements.
| Parameter | NR200-02 |
|---|---|
| Port size | 1/4″ |
| Maximum flow | 550L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | 5-60°C |
| Option code | Configuration |
|---|---|
| B | Mounting bracket |
| G | Pressure gauge |
The product photograph shows a gauge-equipped configuration. Specify the required options when selecting the regulator.

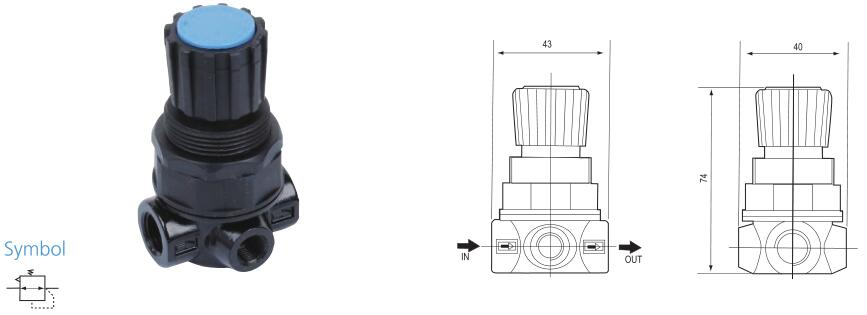

The outline shows a 43mm front width, a 40mm side width and a 74mm height. The drawing marks the inlet and outlet and includes the regulator pneumatic symbol.
The attached Pneumatic Components Catalogue includes NR200 regulators and other air preparation products.
