MV522 5/2-Way Mechanical Valves with G1/4 Main Ports

Series Part Number

Part Number: MV 52 2 R
Explanation:

Series

MV - Mechanical pneumatic valve

Valve Function

52 - Five ports, two positions

Port Size

2 - G1/4 main ports; G1/8 exhaust ports

Actuator

Blank - Basic plunger; omit the actuator suffix
R - Roller
TB - Selector button
EB - Locking button
PP - Flat button
PPL - Convex button
PB - Large round button

Description

MV522 mechanical valves switch five pneumatic ports between two positions. The series combines a direct-acting valve body with plunger, roller and manual button options. Working ports A and B and supply port P use G1/4 connections, with G1/8 exhaust ports.

Actuator selection

MV identifies the mechanical-valve family, 52 denotes five ports and two positions, and 2 identifies the G1/4 main-port size. The actuator suffix follows MV522.

ModelSuffixActuator type
MV522BlankBasic plunger

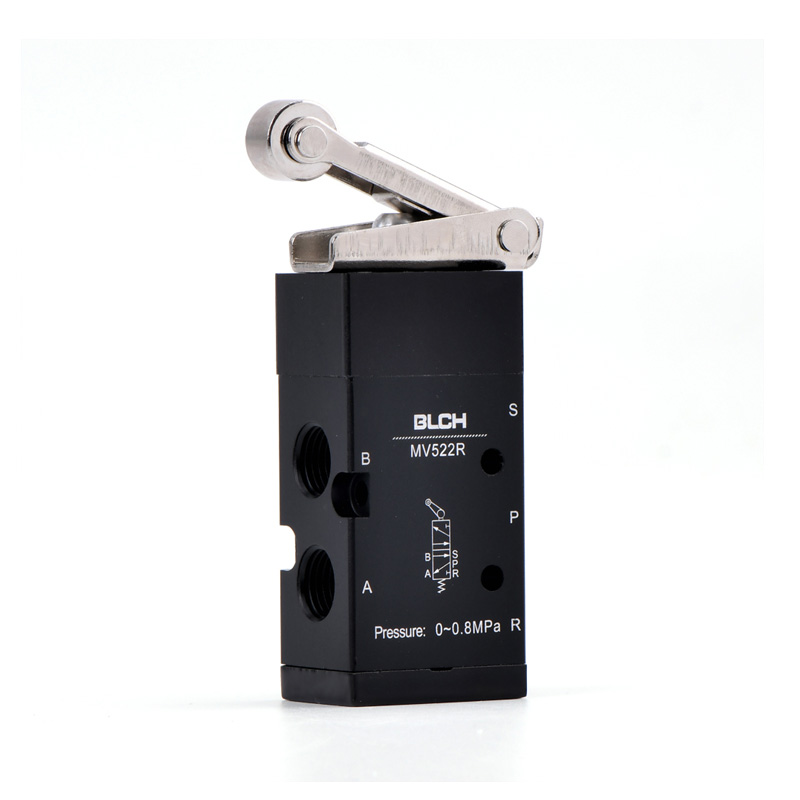

MV522RRRoller
MV522TBTBSelector button
MV522EBEBLocking button

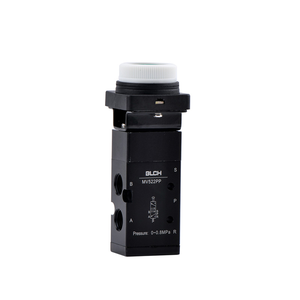

MV522PPPPFlat button
MV522PPLPPLRaised button
MV522PBPBLarge round button

Shared specifications

ParameterAll listed MV522 variants
MediumAir filtered to 40μm
ActuationDirect acting
Valve configuration5/2-way
Supply and working portsG1/4
Exhaust portsG1/8
Working pressure0-0.8MPa
Working temperature-5-60°C
LubricationNot required

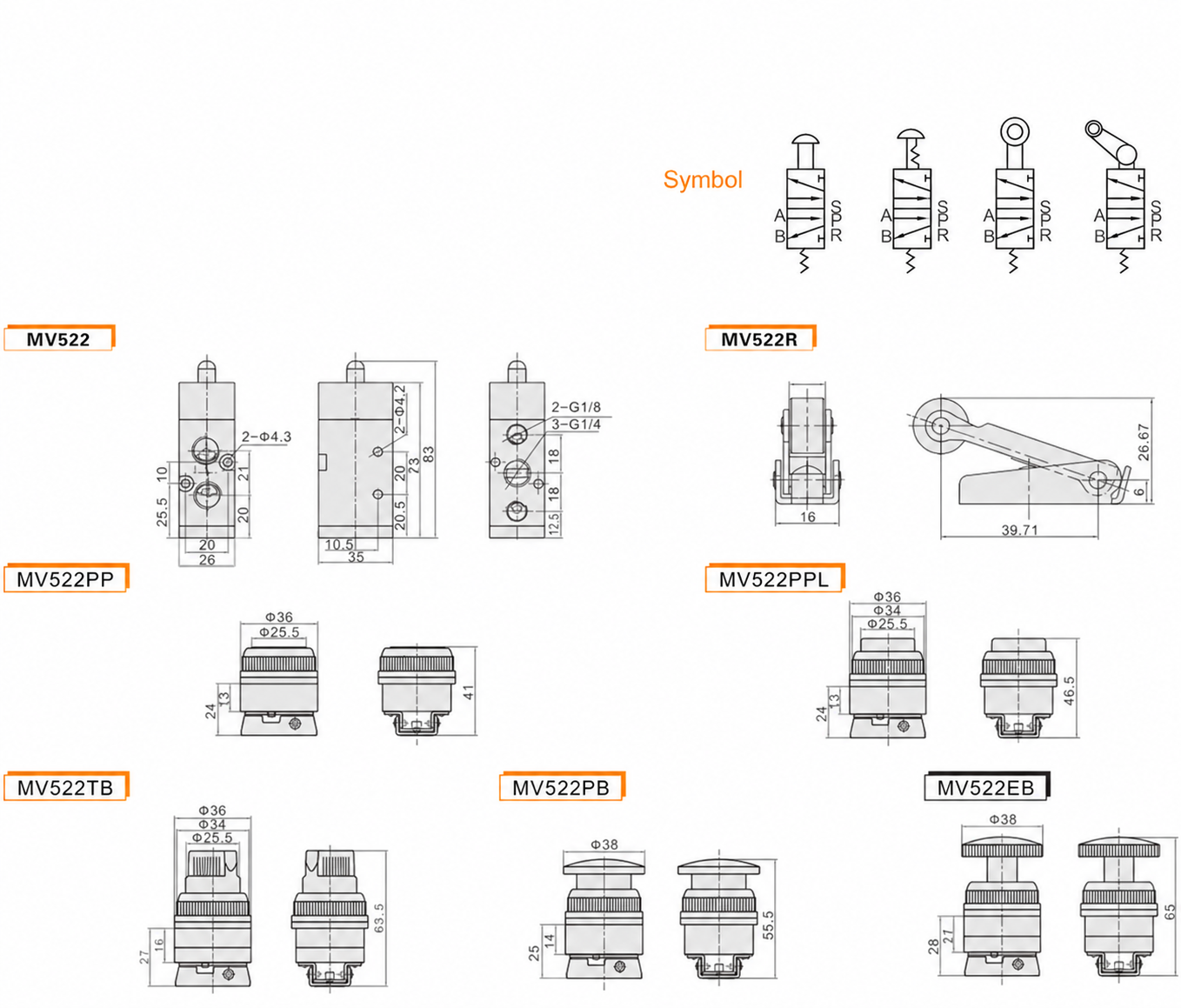

Flow symbols and mounting dimensions

The symbols identify ports A, B, P, R and S. The body drawing shows three G1/4 connections and two G1/8 connections. Use the actuator-specific outline to allow clearance around the roller, button or selector.

MV522 five-port flow symbols and dimensions for seven mechanical actuator configurations
MV522 flow symbols, valve-body dimensions and actuator envelopes; linear dimensions in millimeters.
