HHQ9 Series multi-circuit time controllers provide scheduled switching for control panels that need a 45×45mm panel opening or rail-mounted installation. The series shares the same timing platform and program capacity, with output count and load capacity separated by model.
Common Parameters
| Working Power Supply | AC220V, 50Hz |
|---|
| Time Control Range | 1 minute to 168 hours |
|---|
| Timing Error | ≤±1 second/day |
|---|
| Program Capacity | 40 groups of switch programs |
|---|
| Battery | Built-in high-energy lithium battery |
|---|
| Dimensions | 51 × 51 × 108mm |
|---|
| Panel Cutout | 45 × 45mm |
|---|
| Installation Method | Panel, device or 35mm rail mounting |
|---|

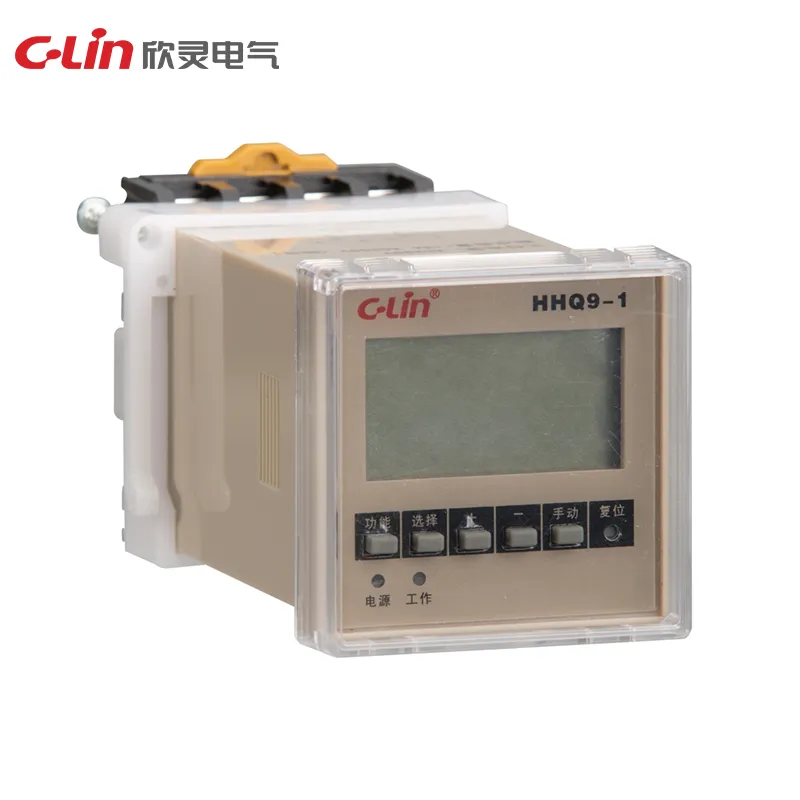

HHQ9-1
| Output | 1 channel |
|---|
| Contact Capacity | 16A AC250V resistive load |
|---|
HHQ9-2
| Output | 2 channels |
|---|
| Contact Capacity | 16A AC250V resistive load for the listed relay-output version |
|---|

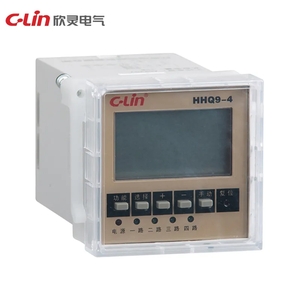

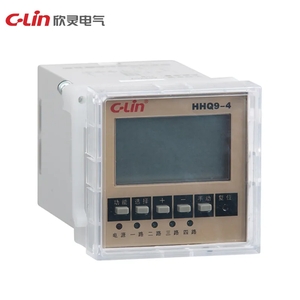

HHQ9-4
| Output | 4 channels |
|---|
| Contact Capacity | Single channel ≤500W |
|---|
HHQ9-6
| Output | 6 channels |
|---|
| Contact Capacity | Single channel ≤500W |
|---|
