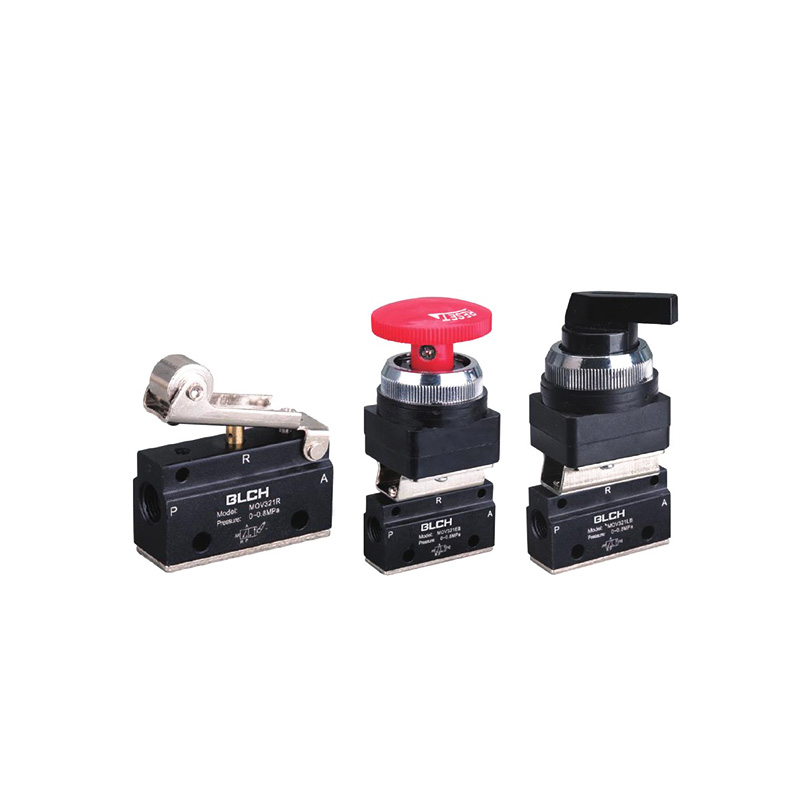

MOV321 mechanical valves provide direct-acting 3/2-way switching for compressed-air controls. G1/8 connections and a choice of roller, plunger and manual button actuators allow the valve to be selected for the required operating method.
The code combines MOV, the 32 three-port/two-position designation, connection code 1 for G1/8, and the actuator suffix. MOV321R is the roller-operated version.
| Model | Suffix | Actuator |
|---|---|---|
| MOV321 | Blank | Basic plunger |
| MOV321R | R | Roller |
| MOV321TB | TB | Selector button |

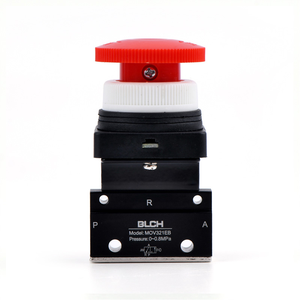

| MOV321EB | EB | Locking button |

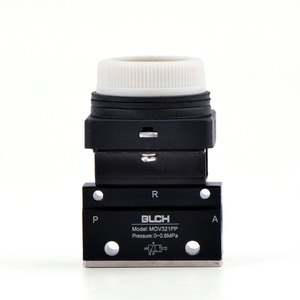

| MOV321PP | PP | Flat button |
| MOV321PPL | PPL | Raised button |
| MOV321PB | PB | Large round button |
| Parameter | All listed MOV321 models |
|---|---|
| Working medium | Air filtered to 40μm |
| Actuation | Direct acting |
| Valve function | 3/2-way |
| Connection size | G1/8 |
| Working pressure | 0-0.8MPa |
| Working temperature | -5-60°C |
| Lubrication | Not required |

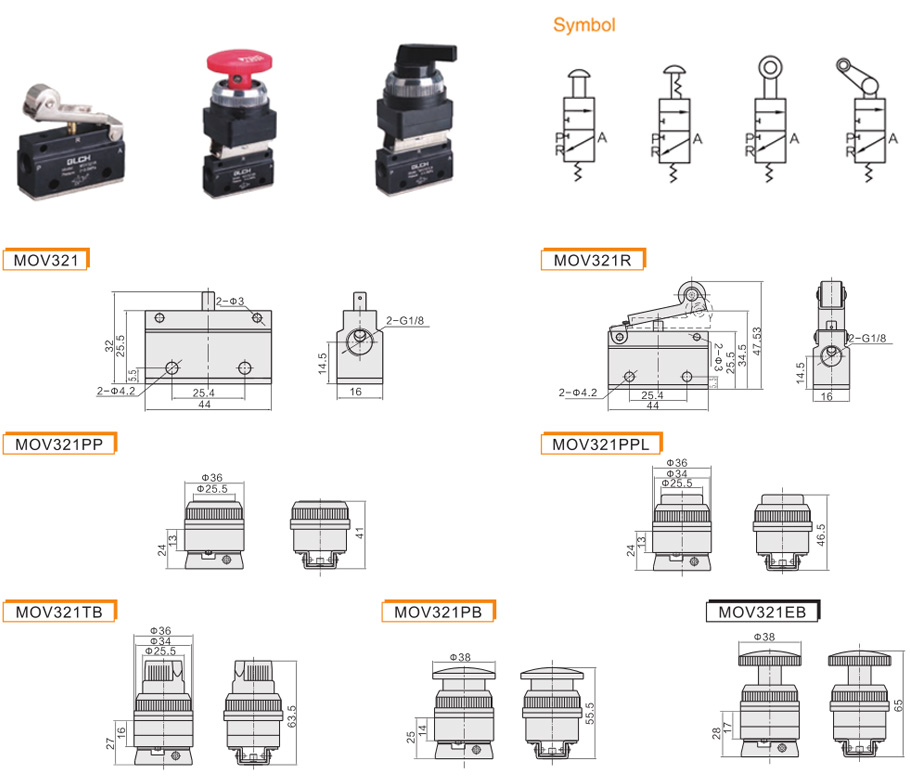

The symbols identify pressure port P, working port A and exhaust R. The body outline shows the G1/8 connections and mounting-hole locations. Check the separate actuator outlines for button diameter, overall height and roller clearance.
