Motor Protector HHD3E Series


Description

HHD3E Series motor protectors cover a wide range of motor currents with simple LED indication and potentiometer adjustment. The variants differ mainly by current range, output contact form, meter-drive availability, size and mounting method.

Common Parameters

Working Power SupplyAC220V, AC380V, 50Hz
Protection FunctionsPhase failure, three-phase imbalance, overload, locked rotor, start avoidance
Display ModeLED working status indication
Setting ModePotentiometer static quantitative setting
Reset ModePower-off reset
Start Avoidance2s to 60s continuously adjustable
Contact Capacity3A AC380V resistive load

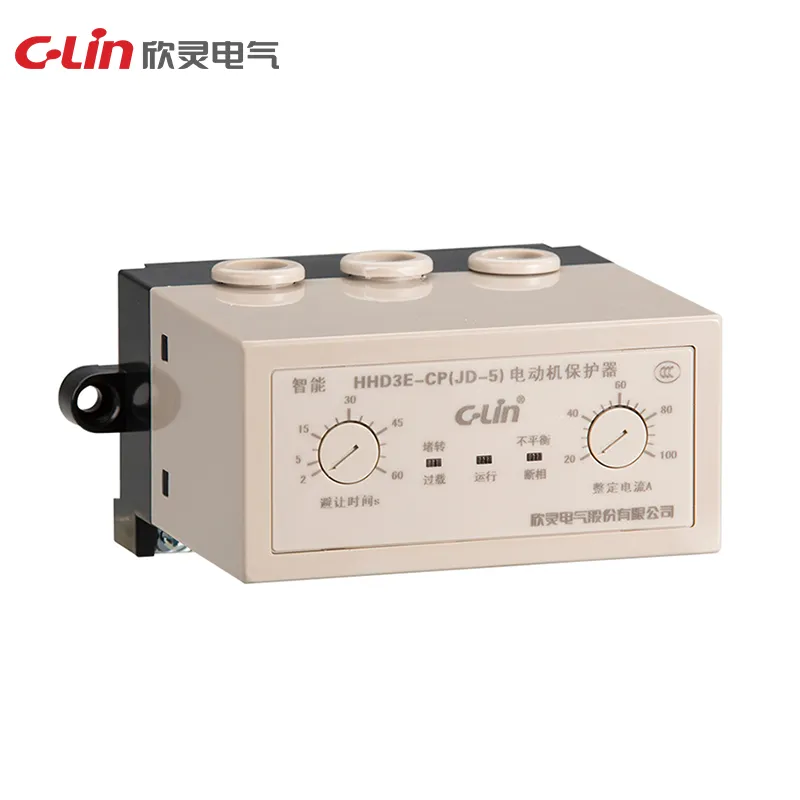

HHD3E-1P

Current Range1P: 0.2A to 1A; 2P: 0.4A to 2A; ATP: 1A to 5A; AP: 2A to 10A; BP: 8A to 40A; CP: 20A to 100A
Contact FormOne normally closed contact
Dimensions125 × 66 × 92mm
Installation MethodPanel/device mounting and DIN rail compatible

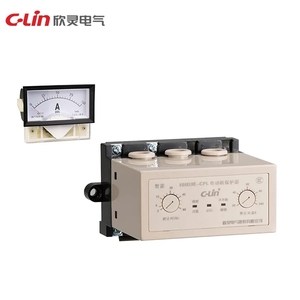

HHD3E-ATPL

Current RangeATPL: 1A to 5A; APL: 2A to 10A; BPL: 8A to 40A; CPL: 20A to 100A
Contact FormOne normally closed contact and one meter-drive output
Dimensions125 × 71 × 92mm
Installation MethodPanel/device mounting and DIN rail compatible
MeterDC meter head purchased separately

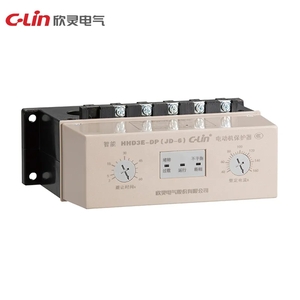

HHD3E-DP

Current Range40A to 160A
Contact FormOne set of NC and NO transfer contacts
Dimensions155 × 60 × 111mm
Installation MethodPanel/device mounting

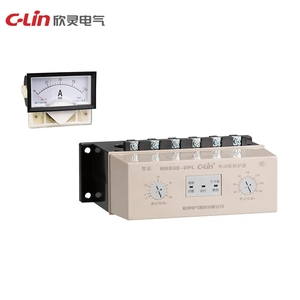

HHD3E-DPL

Current Range40A to 160A
Contact FormOne normally closed contact and one meter-drive output
Dimensions155 × 60 × 111mm
Installation MethodPanel/device mounting
MeterDC meter head purchased separately

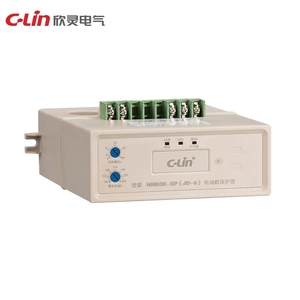

HHD3E-EP

Current RangeEP: 120A to 300A; FP: 120A to 400A
Contact FormOne set of NC and NO transfer contacts
Dimensions154 × 65 × 157mm
Installation MethodPanel/device mounting
