HHD2 Series motor protectors provide compact phase-loss and overload protection for motor control circuits. The series uses potentiometer setting and LED status indication, with smaller HHD2-A/G ranges and higher-current HHD2-T/G selections sharing the same basic protection method.
Common Parameters
| Protection Functions | Phase failure, overload |
|---|
| Setting Mode | Potentiometer static quantitative setting |
|---|
| Display Mode | LED working status indication |
|---|
| Contact Form | Solid-state switch, normally closed contact |
|---|
| Contact Capacity | 1A AC380V resistive load |
|---|
| Control Circuit Operating Voltage | AC220V and AC380V compatible |
|---|

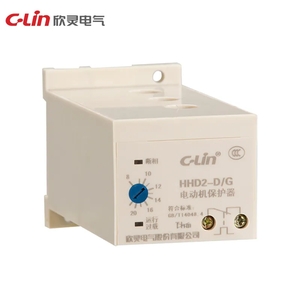

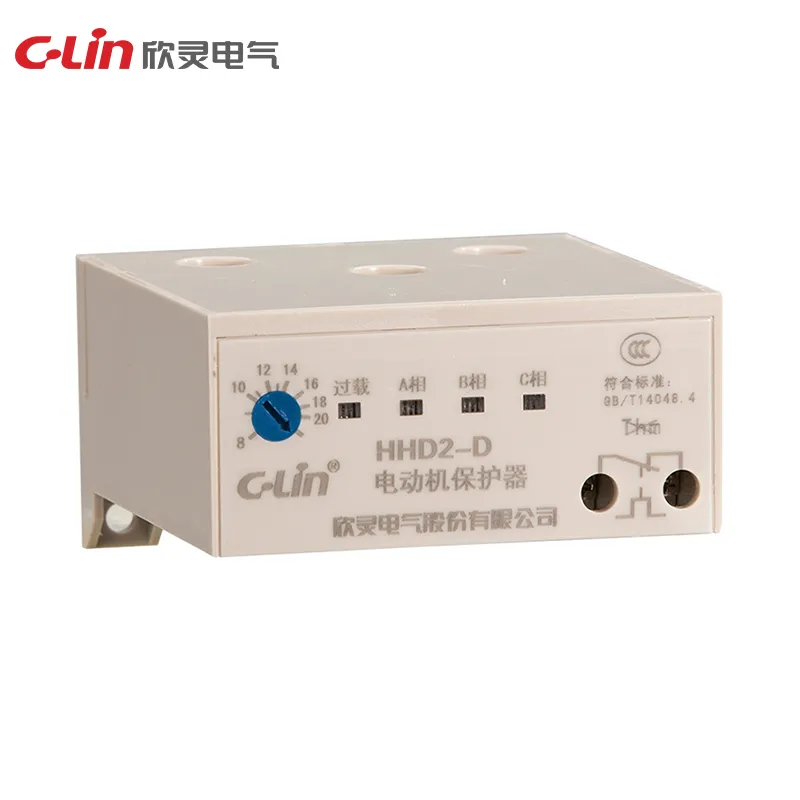

HHD2-A/G
| Current Range | A/G: 1A to 2.5A; B/G: 2A to 5A; C/G: 4A to 10A; D/G: 8A to 20A; E/G: 16A to 40A; F/G: 32A to 80A |
|---|
| Dimensions | 76 × 43 × 74mm or 53 × 64 × 104mm by version |
|---|
| Installation Method | Screw mounting; some versions support screw mounting and DIN rail mounting |
|---|

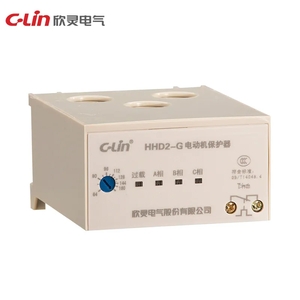

HHD2-T/G
| Current Range | T: 32A to 80A; G: 64A to 160A |
|---|
| Dimensions | 84 × 57.5 × 100mm |
|---|
| Installation Method | Screw mounting and DIN rail mounting compatible |
|---|
