HHD1C Series motor protectors add LCD display and fault-query functions for motor circuits that require clearer local status information. The series covers four current bands from 2A to 800A, with high-current versions using external current transformers.
Common Parameters
| Working Power Supply | AC220V, AC380V, 50Hz |
|---|
| Protection Functions | Phase failure, three-phase imbalance, overload, locked rotor, start-up avoidance, short circuit, overvoltage, undervoltage, underload, fault memory, grounding with special zero-sequence transformer |
|---|
| Display Mode | Chinese/English LCD display with fault memory status and query |
|---|
| Setting Mode | Button setting |
|---|
| Contact Form | One NO contact group and one NC contact group, independent outputs |
|---|
| Contact Capacity | 3A AC380V resistive load |
|---|
| Optional Functions | RS-485 communication interface, 4-20mA transmission output |
|---|

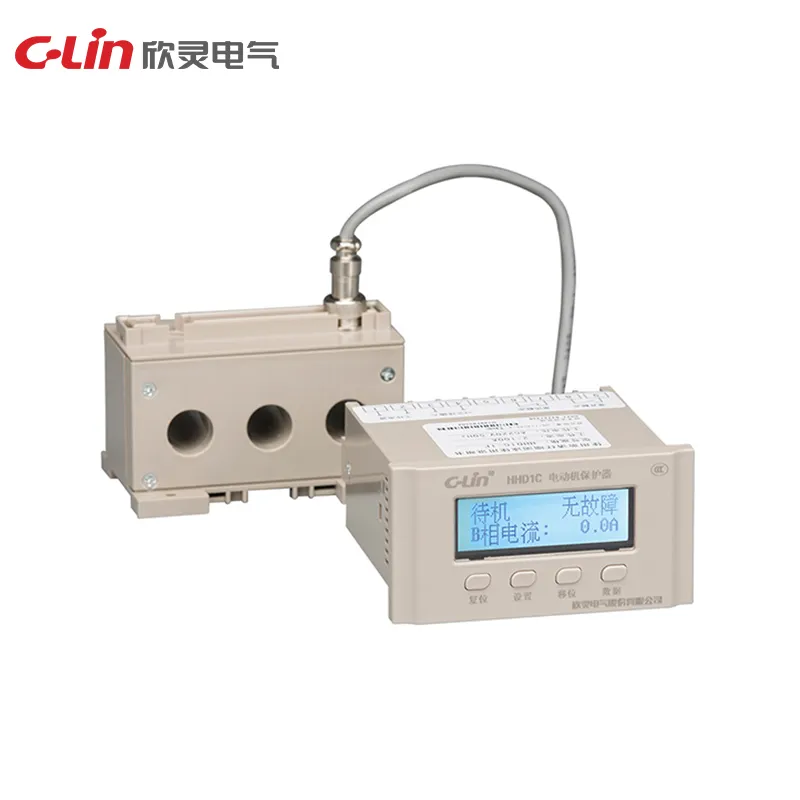

HHD1C-1
| Current Range | 2A to 100A |
|---|
| Dimensions | 100 × 66 × 156mm |
|---|
| Installation Method | Panel/device mounting and DIN rail compatible |
|---|

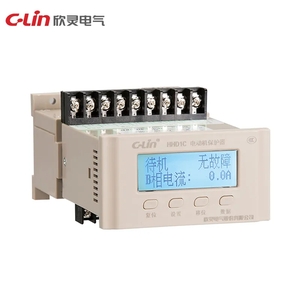

HHD1C-2
| Current Range | 40A to 200A |
|---|
| Dimensions | 120 × 62.5 × 168.5mm |
|---|
| Installation Method | Panel/device mounting and DIN rail compatible |
|---|
HHD1C-3
| Current Range | 80A to 400A |
|---|
| Dimensions | 100 × 66 × 156mm |
|---|
| Transformer Requirement | Requires additional current transformer |
|---|
HHD1C-4
| Current Range | 160A to 800A |
|---|
| Dimensions | 100 × 66 × 156mm |
|---|
| Transformer Requirement | Requires additional current transformer |
|---|
