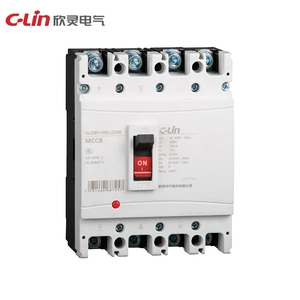

XLCM1 Series molded case circuit breakers are used for overload and short-circuit protection in AC400V distribution and motor circuits. The range includes the standard XLCM1, the higher-insulation XLCM1E and the XLCM1L version with 3P+N pole selection.
Common Parameters
| Rated Working Voltage | AC400V |
|---|
| Rated Current Range | 16A to 800A, depending on frame and variant |
|---|
| Overload Protection | Distribution protection, motor protection |
|---|
| Rated Ultimate Short-Circuit Breaking Capacity Class | L standard type, M higher breaking type |
|---|
| Installation Method | Vertical or horizontal installation |
|---|
| Wiring Method | Front panel wiring, rear panel wiring, plug-in type |
|---|
| Installation Category | III |
|---|
| Pollution Level | 3 |
|---|
| Protection Class | IP20 |
|---|
| Altitude | Up to 2000m |
|---|
| Ambient Temperature | -5 to +40°C |
|---|

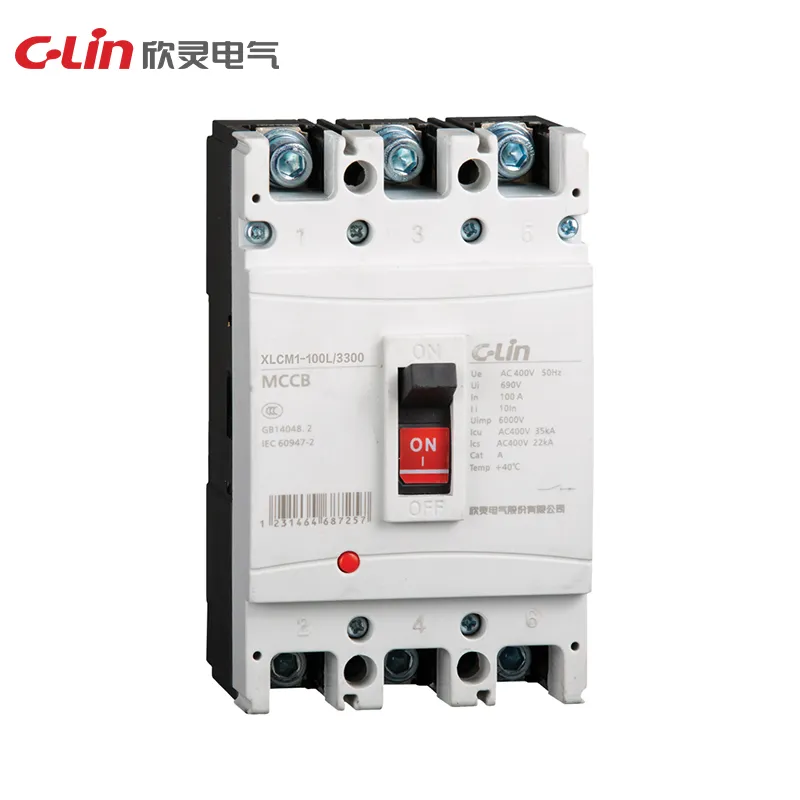

XLCM1
| Rated Insulation Voltage | 690V; 500V for 63 frame |
|---|
| Frame Grade | 63A, 125A, 250A, 400A, 630A, 800A |
|---|
| Rated Current | 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A, 250A, 315A, 350A, 400A, 500A, 630A, 800A |
|---|
| Poles | 3P, 4P |
|---|

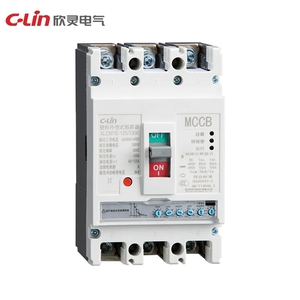

XLCM1E
| Rated Insulation Voltage | 1000V |
|---|
| Frame Grade | 125A, 250A, 400A, 630A, 800A |
|---|
| Rated Current | 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A, 250A, 315A, 350A, 400A, 500A, 630A, 800A |
|---|
| Poles | 3P, 4P |
|---|

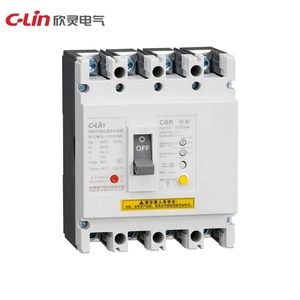

XLCM1L
| Frame Grade | 125A, 250A, 400A, 630A, 800A |
|---|
| Rated Current | 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 180A, 200A, 225A, 250A, 315A, 350A, 400A, 500A, 630A, 800A |
|---|
| Poles | 3P, 4P, 3P+N |
|---|
