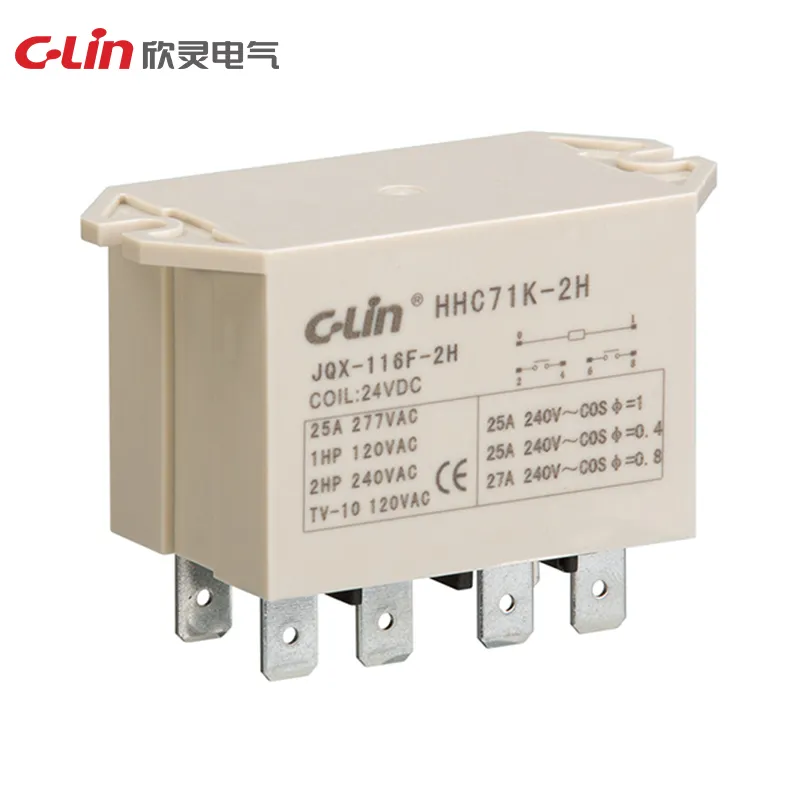

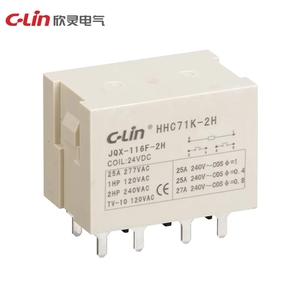

HHC71K-2H is a miniature electromagnetic relay for normally-open power switching in control and interface circuits. It provides one- or two-contact normally-open configurations, broad AC/DC coil options and silver-alloy contacts.
| Parameter | Specification |
|---|---|
| Model | HHC71K-2H |
| Contact Form | 1H one normally open contact; 2H two normally open contacts |
| Contact Load | 25A at 240VAC / 28VDC with 1.5A at 220VDC; 30A at 277VAC / 30VDC listing also provided |
| Coil Voltage | DC6-220V or AC6-380V |
| Coil Power | DC 2.0W; AC 4.0VA |
| Contact Resistance | 100 milliohm or less |
| Contact Material | Silver alloy |
| Insulation Resistance | 100Mohm or higher at 500VDC |
